55-10-24 - 5GHz 24dBi GRID ANTENNA JHG-5500-24

Sku:9060046029010

55-10-24 - 5GHz 24dBi GRID ANTENNA JHG-5500-24

Regular Price: €44.89

Special Price €39.90

Availability: In stock

 JHG-5500-24

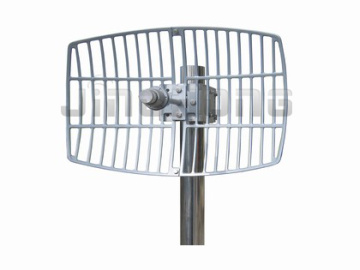

JHG-5500-24 is a high-performance aluminum die-cast directional parabolic grid antenna, It’s suitable for point to point applications in the 5.5GHz band

    ● Aluminium Die Cast Grid

    ● UV stable coat finish

    ● Compatible with Vertical or Horizontal Polarization

    ● Point to Point System





Electrical
Model JHG-5500-24
Frequency Range 5470-5725MHz
Gain 24 dBi
VSWR ≤1.5
3dB Beam-Width, H-Plane
3dB Beam-Width, E-Plane 12°
Polarization Vertical or Horizontal
Upper Side Lobes dB
Front to Back Ratio ≥20 dB
Maximum Input Power 100 Watt
Impedance 50 Ω
Lightning Protection DC Grounded
Mechanical
Connector N Female
Antenna Dimension 300×400 mm
Weight 1.3 KG
Reflector Material Aluminium Die Cast
Mounting Mast Diameter Ø40~Ø60 mm
Operating Temperature -40° C to +65° C
Rated Wind Velocity 216 Km/h
