55-3.5-30 - 5GHz 30dBi GRID ANTENNA JHG 5500-30

Sku:9060046029000

JHG-5500-30
Grid Antenna 30bBi
Frequency: 5725-5850 MHz
€59.37

Availability: In stock

  • Buy 5 for €58.19 each and save 3%
  • Buy 10 for €57.00 each and save 4%
  • Buy 20 for €55.81 each and save 6%
  • Buy 50 for €54.62 each and save 9%

55-3.5-30 - 5GHz 30dBi GRID ANTENNA JHG 5500-30


JHG-5500-30

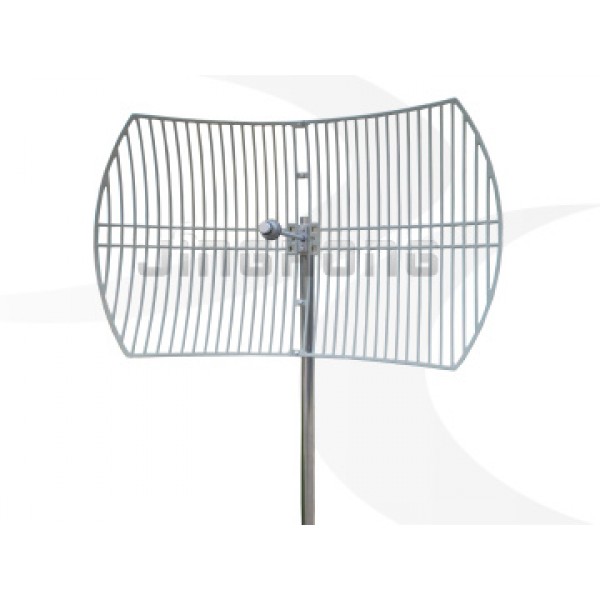

JHG-5500-30 is a high-performance aluminum die-cast directional parabolic grid antenna, It’s suitable for point to point applications in the 5.5GHz band

    ● Aluminium Die Cast Grid

    ● UV stable coat finish

    ● Compatible with Vertical or Horizontal Polarization

    ● Point to Point System





Electrical
Model JHG-5500-30
Frequency Range 5470-5725MHz
Gain 30 dBi
VSWR ≤1.5
3dB Beam-Width, H-Plane
3dB Beam-Width, E-Plane
Polarization Vertical or Horizontal
Upper Side Lobes dB
Front to Back Ratio ≥30 dB
Maximum Input Power 100 Watt
Impedance 50 Ω
Lightning Protection DC Grounded
Mechanical
Connector N Female
Antenna Dimension 600×900 mm
Weight 3.5 KG
Reflector Material Aluminium Die Cast
Mounting Mast Diameter Ø40~Ø60 mm
Operating Temperature -40° C to +65° C
Rated Wind Velocity 216 Km/h
