mANT 19S – MTAS-5G-19D120

SKU: 1060410100190 Categories: , , , ,

86.11

5GHz 19dBi MIKROTIK antenna – MTAS-5G-19D120 Dual Pol

10 in stock

Description

The new sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal or any other outdoor wireless device.

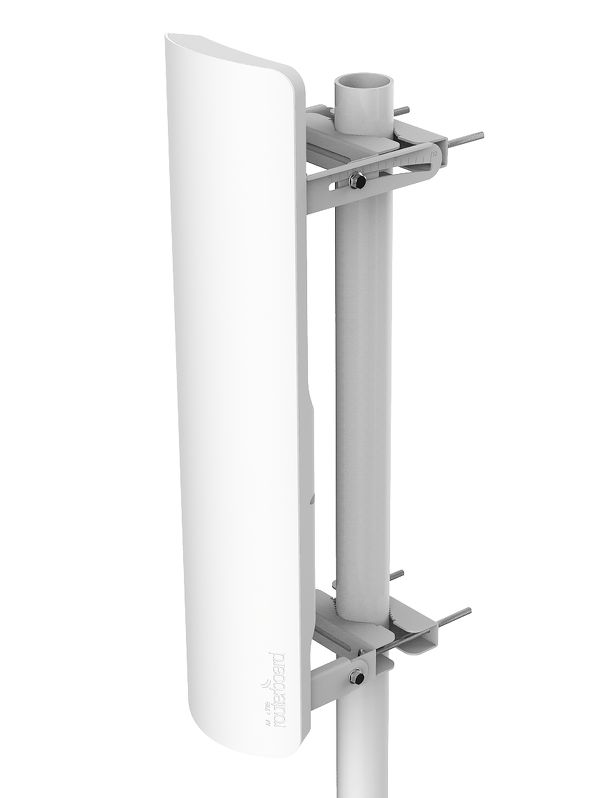

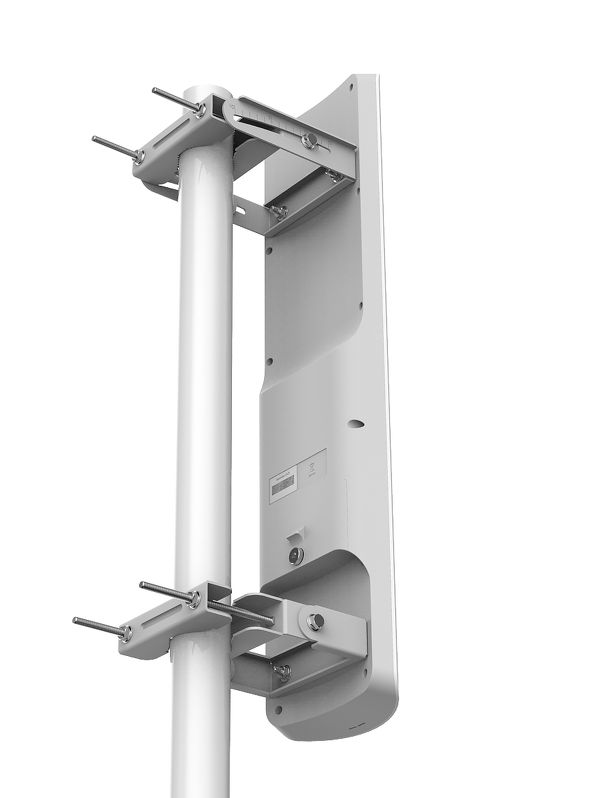

The mANT is a dual-polarization 19dBi 120 degree beamwidth antenna with two RP-SMA connectors. It comes with metallic U bolt type mounts.



Product specifications

Details
Product code MTAS-5G-19D120
Beamwidth 120 deg (azimuth) 5 deg (elevation)

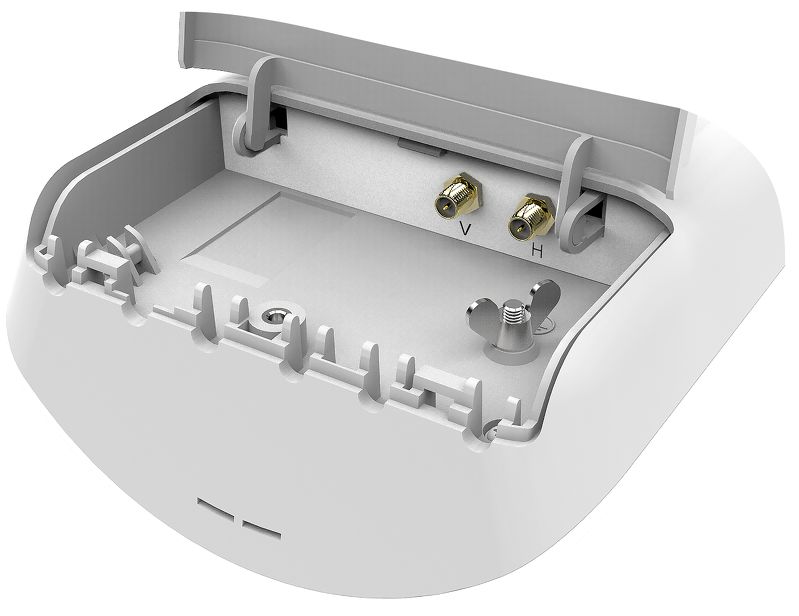

Connector two RP-SMA
Cross Polarization >30 dB
Diameter x Depth 152 x 598 x 78 mm
Frequency Range 5.17 – 5.825 GHz
Front-to-Back Ratio >30 dB
Polarization Vertical and horizontal
Port to Port Isolation >40 dB min
VSWR 1.43 typ, 1.8 max
Weight 1270 g
Suggested price $99

Additional information

Weight 10.0000 kg
Brand

Mikrotik

Features (Beta)

Ethernet ports , Poe in , Wireless

Frequency

5 Ghz

Applications

Outdoor
