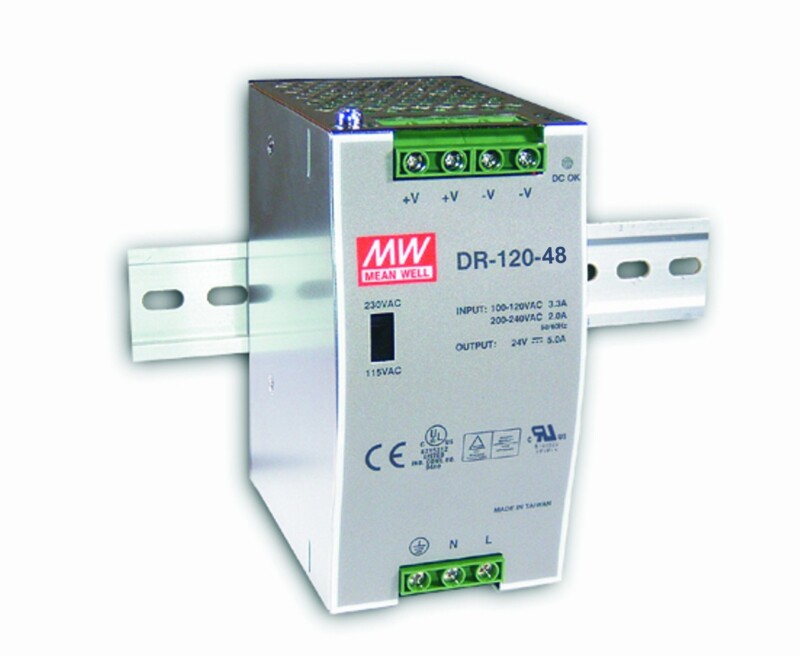

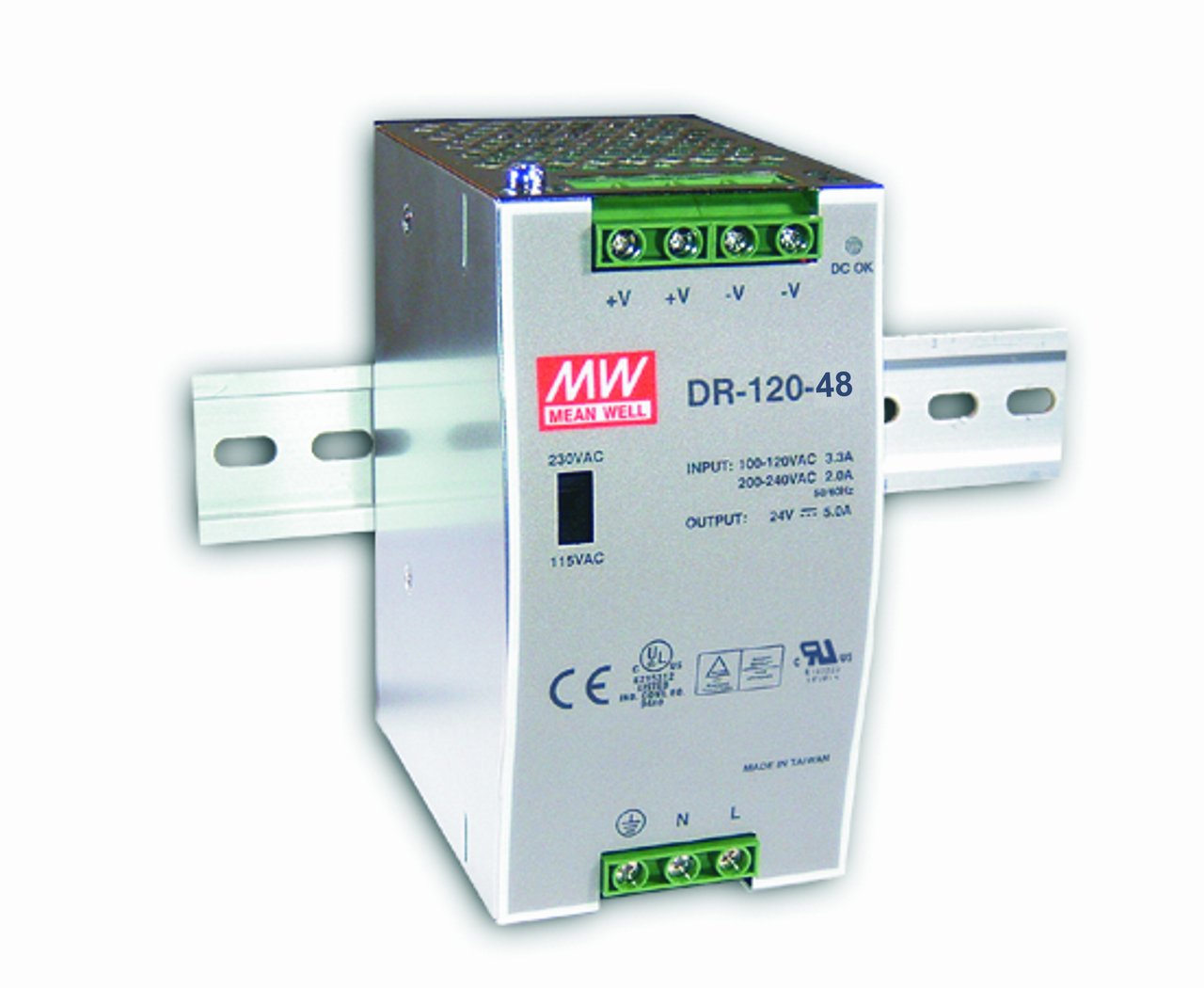

MEAN WELL Power Supply AC/DC Converter 48V 2.5A DR-120-48

SKU: 1010200200480 Categories: , ,

52.49

AC DC Converter 48V con interruttore opzionale e protezione contro cortocircuiti, sovraccarichi, sovratensioni, raffreddato grazie alla griglia esterna.

1 in stock

Description

AC/DC Converter 48V 2.5A

AC DC Converter a 48V con interruttore opzionale e protezione contro cortocircuiti, sovraccarichi, sovratensioni, raffreddato grazie alla griglia esterna.

Possibilità di installazione su guida DIN TS-35/7,5. Frequenza di commutazione 55 kHz. Comprensivo di LED di funzionamento.

Output

  • DC output voltage: 48 V
  • Cutput current: 1.6 A
  • Current range 0-2.5 A
  • Output power: 120 W
  • Adjustable voltage range: 28-Mikrotik Technical Support V
  • Voltage tolerance: 1.0%
  • Voltage regulation: 0.5%
  • Stabilization load: 1.0%
  • Stabilization, rise time: 500 ms, 70 ms ms/230 500 VAC, 70 VAC ms/115 at full load
  • Time overlay network failure (Typ.): 36 ms / 32 ms 230 VAC / 115 VAC at full load

Input

  • Input Voltage: 100 ~ 120 VAC / switch selectable 200 ~ 240 VDC
  • Frequency Input Voltage: 47 ~ 63 Hz
  • Efficiency (Typ.): 85%
  • Input Current (Typ.): 3.3 A/115 VAC 2 A/230 VAC
  • Inrush (surge) current (Typ.): “Cold Start” 20 A/115 A/230 VAC 40 VAC
  • Residual current: <3,5 mA / 240 VAC

Protection

  • Overloading: 105 ~ 150% output power

Protection type: Constant current limit, recovery after removal of defects

  • Overvoltages: 58 ~ 65 V

Type of protection: overvoltage shutdown, automatic restart after fault removal

  • Overheating: 90 ° C ? 5 ° C (TSW1)

Type of protection: Switch off power, automatic restart after temperature drop

Work Environment

  • Ambient temperature: -10 ~ +60 ° C
  • Humidity: 20 ~ 90% RH non-condensing
  • Storage temperature: -20 ~ +85 ° C, 10 ~ 95% RH
  • Temperature coefficient: ? 0.03% / ° C (0 ~ 50 ° C)
  • Vibration: 10 ~ 500Hz, 2G 10min. / 1 cycle, 60 min each along X, Y, Z

Safety and EMC

  • According to safety standards: EN60950-1
  • Insulation voltage: I / PO / P: 3 kV AC I / P-FG: 1.5 kV AC O / P-FG: 0.5 kV AC
  • Insulation Resistance: I / P-O / P, I / P-FG: 100 M / 500 VDC
  • EMI conduction and radiation: according to EN55011, EN55022 (CISPR22) Class B
  • According to the harmonic current standard EN61000-3-2, -3
  • According to the EMS resistance standards EN61000-4-2, 3, 4, 5, 6, 8, 11, ENV50204, EN61000-6-2 (EN50082-2) Strongly noisy Avg. environment (A)

Other

  • MTBF: min. 123,100 hours, MIL-HDBK-217F (25 ? C)
  • Dimensions: 65.5 x 125.2 x 100 mm (W x H x D)
  • Weight: 0.79 kg

Additional information

Weight 1.0000 kg
Brand

Mean Well
