CCR 1016-12G

546.90

MIKROTIK
1U rackmount, 12x Gigabit Ethernet, LCD, 16 cores x 1.2GHz CPU, 2GB RAM, 17.8mpps fastpath, Up to 12Gbit/s throughput, RouterOS L6

2 in stock

Description

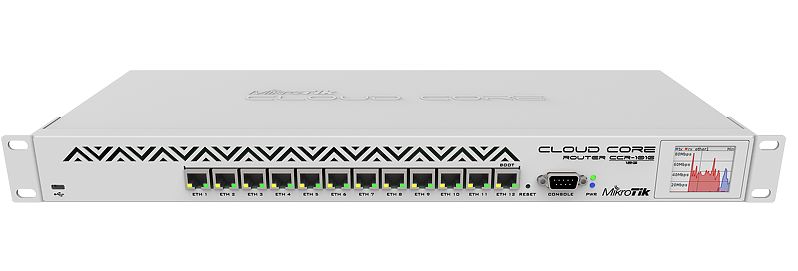

MikroTik Cloud Core Router CCR-1016-12G

CCR1016 is an industrial grade super fast router with cutting edge 16 core CPU. If you need many millions of packets per second – Cloud Core Router is your best choice.

The cloud core router is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring – just a few of the vast number of features supported by RouterOS.

The device is available with a 1U rackmount case, has twelve Gigabit ethernet ports, a serial console cable and a USB port. The CCR1016-12G has two SODIMM slots, by default it is shipped with 2GB of RAM, but has no memory limit in RouterOS (will accept and utilize 16GB or more). It comes with power supply and 1U rackmount case.

Specifications

Details
Product code CCR1016-12G
Architecture TILE
CPU TLR4-01680CH-12CE-A3b
CPU core count 16
CPU nominal frequency 1.2 GHz
Dimensions 355x145x44mm
License level 6
Operating System RouterOS v6 (64bit)
Size of RAM 2 GB
Storage size 512 MB
Storage type NAND
Tested ambient temperature -20C .. +60C
Suggested price $645.00

Powering

Details
Max Power consumption 48W
Number of AC inputs 1
AC input range 100-240 V

Ethernet

Details
10/100/1000 Ethernet ports 12

Peripherals

Details
Number of USB ports 1
Serial port RS232
USB Power Reset Yes
USB slot type microUSB type AB

Other

Details
CPU temperature monitor Yes
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes

//
var google_conversion_id = 1071238016;
var google_conversion_label = “EJwyCK7n4gQQgJfn_gM”;
var google_custom_params = window.google_tag_params;
var google_remarketing_only = true;
//
//

//

<div style=”display:inline;”>
<img height=”1″ width=”1″ style=”border-style:none;” alt=”” src=”//googleads.g.doubleclick.net/pagead/viewthroughconversion/1071238016/?value=0&label=EJwyCK7n4gQQgJfn_gM&guid=ON&script=0″/>
</div>

Additional information

Weight 2.1000 kg
Brand

Mikrotik
