JIROUS SECTOR ANTENNA JSC-19-30V

Sku:1060040019000

JSC-19-30V

Regular Price: €26.13

Special Price €24.90

Availability: In stock

JSC-19-30V

Specification:
  • sector antenna - vertical polarization
  • ready for difficult conditions - beamwith only 34°-38°
  • vertical beamwith 8-9° for perfect coverage
  • client antenna (horizontal polarization) - high rezistance against interference
  • you can count attainable distance from section of calculation

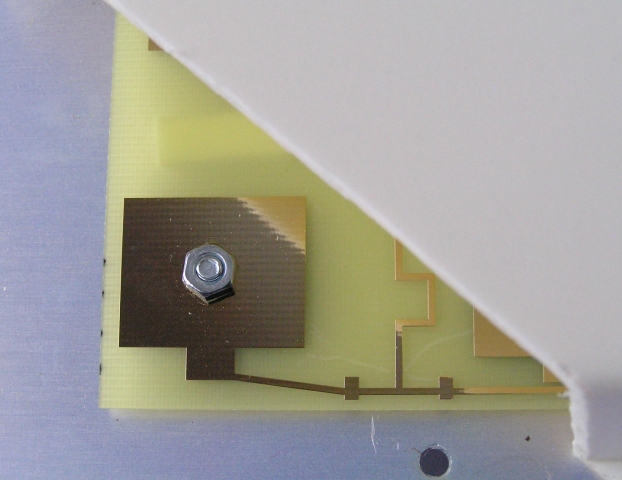

  • Gold plated layout for long life time Gold plated layout
Technical parameters:
Frequency range 4,9 - 6,1 GHz
Gain 18,6 dBi ±0,6
VSWR 5,15-6,1GHz ≤ 1,5
Beamwidth
plane H -3dB
34 - 38°
plane E -3dB 8 - 9°
Connector N - Female
Polarization vertical (for client also horizontal)*
Size 128 x 326 x 30 mm

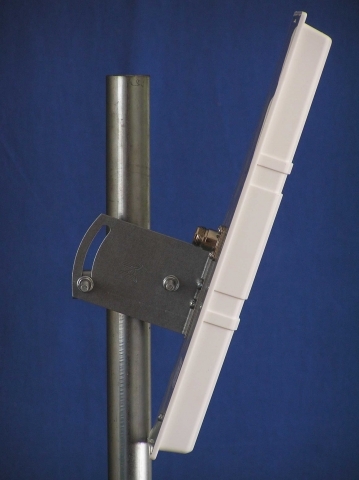

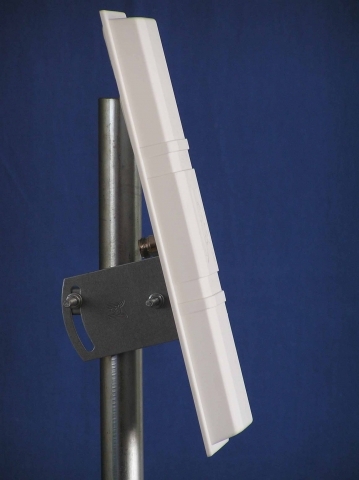

Holder for mast ø19 - 54 mm
Back Sheet metal from aluminium alloy + galvanic coating
Cover UV steady plastic ABS


* Using horizontal polarization is beamwith in horizontal plane 8-9° and in vertical plane 34-38°. This is suitable for clients - high rezistance against interference
