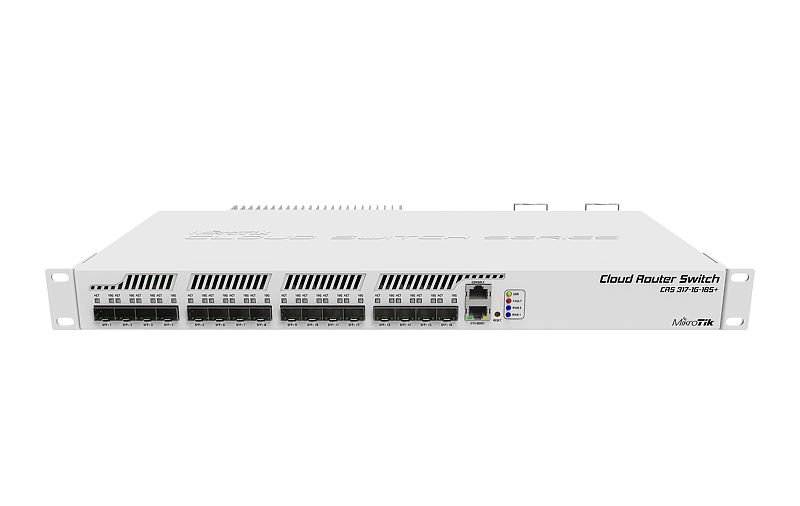

MikroTik Cloud Router Switch 317-1G-16S+RM - CRS317-1G-16S+RM

Sku:1010190004030

CRS317-1G-16S+RM

The new Cloud Router Switch 317-1G-16S+RM is a rack-mountable manageable switch with Layer3 features, it has 16 SFP+ ports for high performance 10GbE connectivity and a 1GbE copper port for management.
€280.25

Availability: In stock

  • Buy 2 for €277.88 each and save 1%
  • Buy 4 for €275.50 each and save 2%
  • Buy 6 for €273.13 each and save 3%
  • Buy 10 for €270.75 each and save 4%

MikroTik Cloud Router Switch 317-1G-16S+RM - CRS317-1G-16S+RM

CRS317-1G-16S+RM

The new Cloud Router Switch 317-1G-16S+RM is a rack-mountable manageable switch with Layer3 features, it has 16 SFP+ ports for high performance 10GbE connectivity and a 1GbE copper port for management.

CRS317-1G-16S+RM is powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) provide enhanced protection and true professional performance for your
demanding network.

The unit has dual redundant power supplies and passive cooling case, so it’s completely silent - for hot environments two redundant fans will automatically keep the system cool if needed.

• Boot option for SwOS or RouterOS

• Non-blocking Layer 2 switching capacity

• 16K host table

• IEEE 802.1Q VLAN

• Supports up to 4K simultaneous VLANs

• Port isolation

• Port security

• Web-based GUI

• 800 Mhz CPU

• Broadcast storm control

• Port mirroring of ingress/egress traffic

• Rapid Spanning Tree Protocol

•Link Aggregation (LACP)

• Access Control List

• MikroTik neighbour discovery

• SNMP v2/v3

• rackmount and tabletop


2x IEC cord Rackmount ears

“Dual boot” feature allows you to choose which operating system you prefer to use, RouterOS or SwOS. If you prefer to have a simplified switch only OS with more switch specific features, use SwOS. If you are used to Winbox and would like the ability to use routing and other Layer 3 features on some ports in your CRS, boot and
use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings.

It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP+ cages supports both 1.25 Gb SFP and 10 Gb SFP+ modules.



Product specifications

Details
Product code CRS317-1G-16S+RM
10/100/1000 Ethernet ports 1
CPU 98DX8216B0-BRR4C000
CPU Threads count 2
CPU core count 2
CPU nominal frequency 800 MHz
CPU temperature monitor Yes
Dimensions 443 x 224 x 44 mm
License level 6
Max Power consumption 42W
Operating System RouterOS or SwitchOS
SFP+ ports 16
Serial port RJ45
Size of RAM 1 GB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -20 to 60° C
Suggested price $399

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Additional Information

Barcode No
Applications No
Frequency No
Brand Mikrotik
