MIKROTIK mANTBox series - RB921GS-5HPacD-15s

Sku:1010190086005

MIKROTIK mANTBox series - RB921GS-5HPacD-15s
€102.35

Availability: In stock

  • Buy 5 for €101.92 each and save 1%
  • Buy 10 for €101.05 each and save 2%
  • Buy 20 for €100.62 each and save 2%
  • Buy 50 for €100.19 each and save 3%

MIKROTIK mANTBox series - RB921GS-5HPacD-15s

mANTBox series

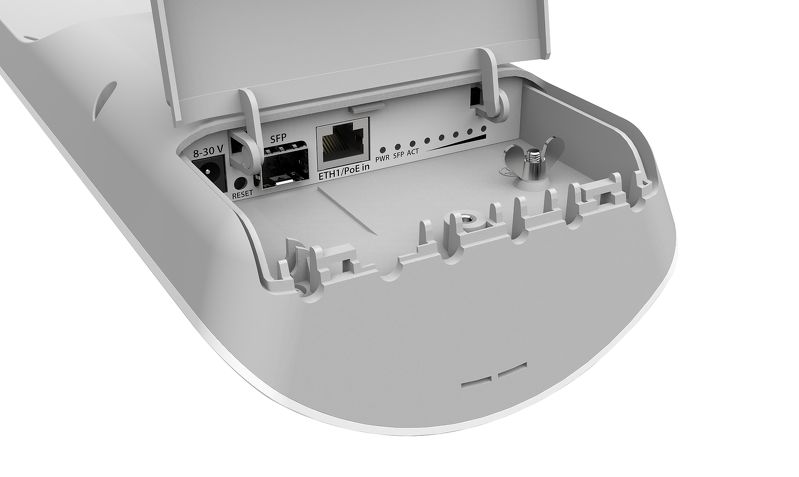

The mANTBox is based on our new mANT sector antennas, but also has a wireless router built right in. Powered by the RB921 device, the mANTBox comes ready to use with everything included. The device uses a high speed 720MHz CPU and has a built in 802.11 ac/a/n wireless device with up to 31dBm output power.

mANTBox 15s comes with 15dBi 120 degree sector antenna

Product specifications

Details
Product code RB921GS-5HPacD-15S
CPU nominal frequency 720 MHz
CPU core count 1
Size of RAM 128 MB
10/100/1000 Ethernet ports 1
Wireless standards 802.11a/n/ac
Wireless chip model QCA9882
Power Jack 1
Supported input voltage 9 V - 30 V
PoE in Yes
Voltage Monitor Yes
PCB temperature monitor Yes
Dimensions 140 x 348 x 82 mm
Operating System RouterOS
Operating temperature range -30 + 70 C
License level 4
Antenna gain DBI 15
CPU QCA9557
Max Power consumption 13W
SFP ports 1
Number of chains 2
Storage type NAND
Storage size 128 MB
Suggested price $139

Wireless specifications

5 GHz
 TXRX
6MBit/s 31 -96
54MBit/s 27 -81
MCS0 30 -96
MCS7 27 -77
MCS9 22 -72

wireless parameters may be limited in software, depending on your local regulatory limitations



Included parts

Performance test results

RB921GS-5HPacD-15S QCA9557 1G all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 81.2 986.1 234.9 962.2 477.7 244.6
Bridging 25 bridge filter rules 81.2 986.1 118.4 485.0 119.5 61.2
Routing none (fast path) 81.2 986.1 234.9 962.2 408.2 209.0
Routing 25 simple queues 81.2 986.1 158.3 648.4 165.8 84.9
Routing 25 ip filter rules 64.8 786.9 70.4 288.4 60.9 31.2
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
  4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
