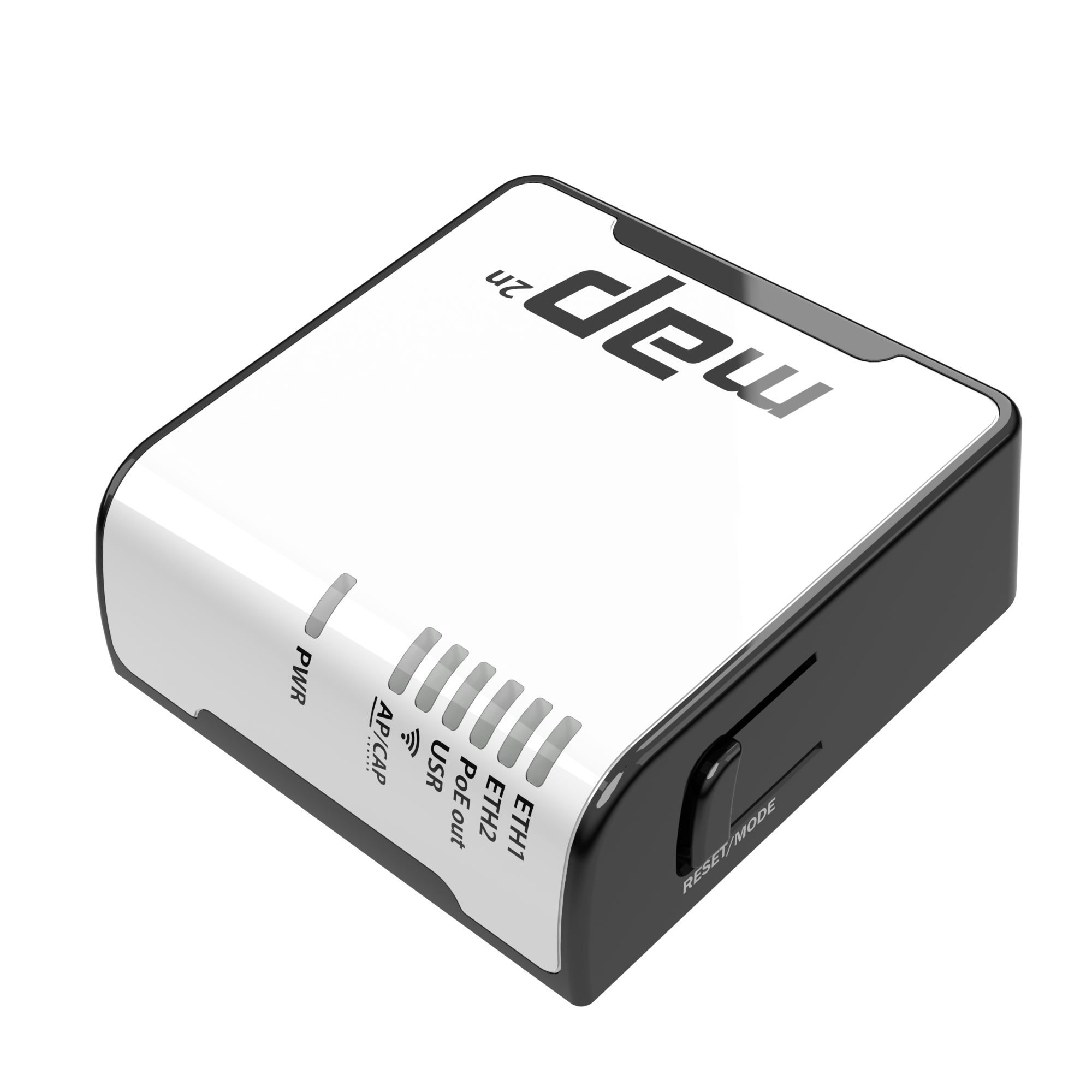

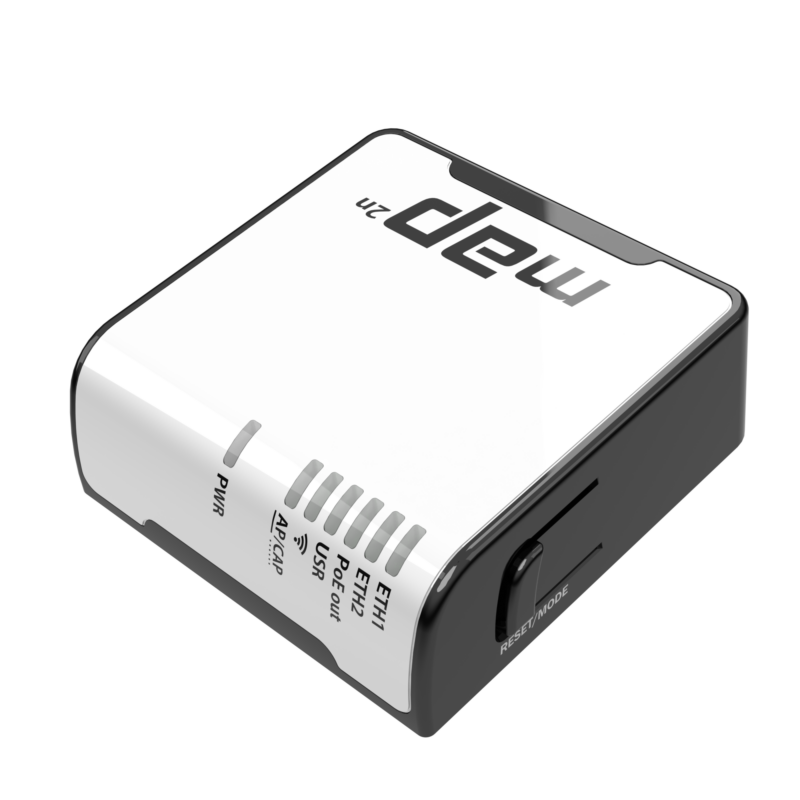

Mikrotik mAP 2nD – RBmAP2nD
mAP 2nD
mAP
The mAP (micro Access Point) is a tiny size wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources – USB, Passive PoE and power jack. It also works as a PoE injector – the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.
In addition to using this device as a small and portable AP, it also works as a PoE injector – the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.
• PoE in 10-57V
• Built in 2GHz AP
• microUSB for a 3G/4G modem (includes adapter to standard USB), or for power input
• Station or AP mode wireless
• Any type PoE input 802.3af and 802.3at
• Passive PoE output (same as input voltage)
Product specifications
| Details | |
|---|---|
| Product code | RBmAP2nD |
| CPU nominal frequency | 650 MHz |
| CPU core count | 1 |
| Size of RAM | 64 MB |
| 10/100 Ethernet ports | 2 |
| Wireless standards | 802.11b/g/n |
| Wireless chip model | QCA9Mikrotik Technical Support1 |
| Number of USB ports | 1 |
| Power Jack | 1 |
| 802.3af support | no |
| PoE in | 802.3af/at |
| Supported input voltage | 11 V – 57 V |
| PoE out | Yes |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| Dimensions | 68x68x19mm |
| Operating System | RouterOS |
| Tested ambient temperature | -10C to +70C tested |
| License level | 4 |
| Antenna gain DBI | 1.2 |
| CPU | QCA9Mikrotik Technical Support1 |
| Max Power consumption | 5W |
| USB Power Reset | Yes |
| USB slot type | microUSB type AB |
| Number of chains | 2 |
| Storage type | FLASH |
| Storage size | 16 MB |
| Suggested price | $45.00 |
Wireless specifications
| 2.4 GHz | |||
|---|---|---|---|
| Transmit power (dBm) | Receive Sensitivity | Transmit power (mW) | |
| 1MBit/s | 22 | -96 | 158 |
| 11MBit/s | 22 | -89 | 158 |
| 6MBit/s | 20 | -93 | 100 |
| 54MBit/s | 18 | -74 | 63 |
| MCS0 | 20 | -93 | 100 |
| MCS7 | 16 | -71 | 40 |
wireless parameters may be limited in software, depending on your local regulatory limitations
