NetMetal 5SHP triple – RB921UAGS-5SHPacT-NM

SKU: 1010190090320 Categories: , , ,

125.60

MikroTik – RouterBoard – Triple chain 5GHz integrated 802.11ac AP/Backbone/CPE, 3xRPSMA connectors, high power, Gigabit Ethernet, waterproof metal enclosure

Out of stock

Description

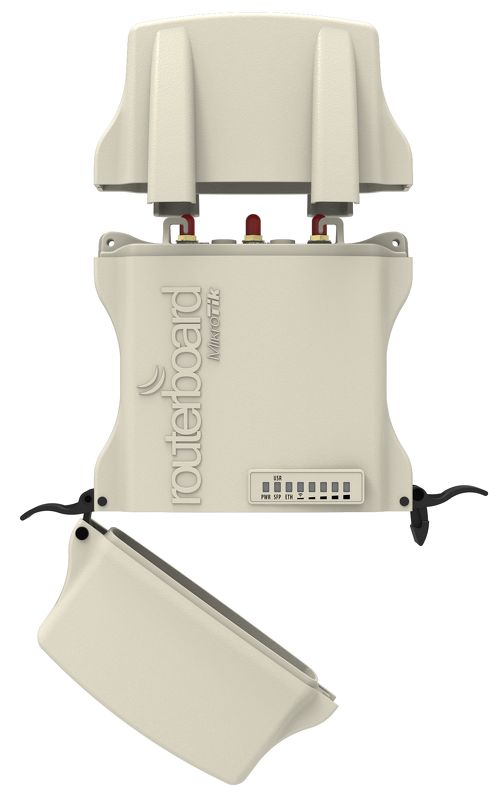

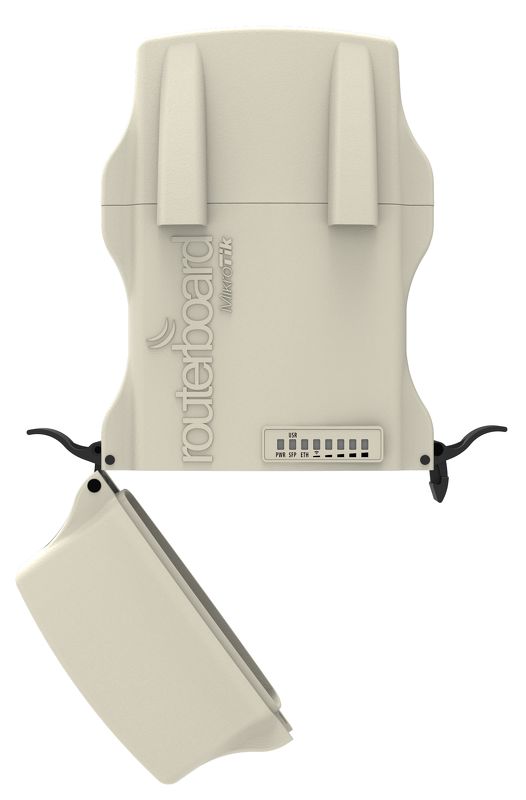

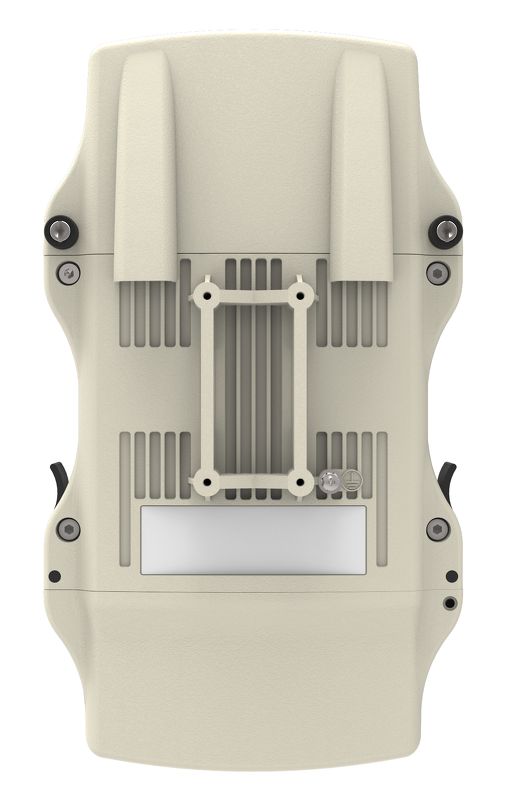

The NetMetal is a 802.11a/n/ac wireless device in a waterproof metal enclosure. Its rugged design is made to withstand the toughest conditions, but at the same time is easy to use and can be opened and closed with one hand. The solid aluminum enclosure also works as a reliable heat-sink for it’s high output power radio. It is sealed to conform with the IP66 standard.

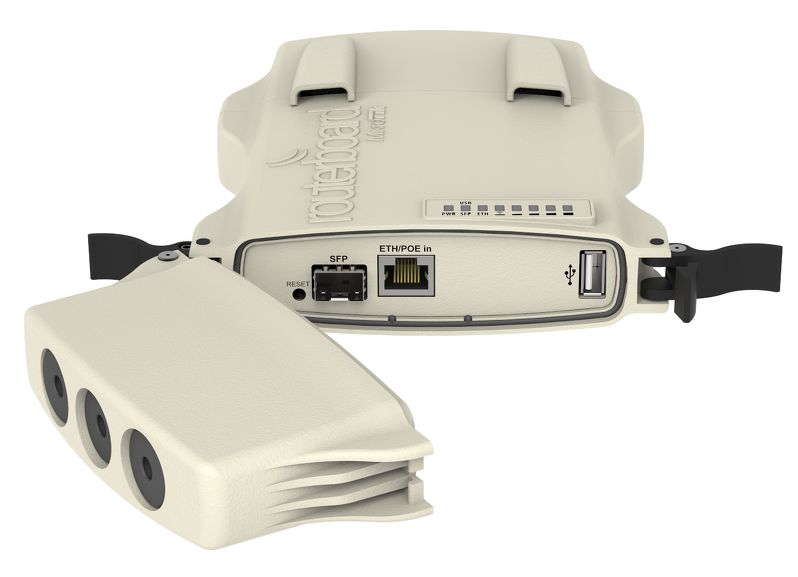

The NetMetal is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license.

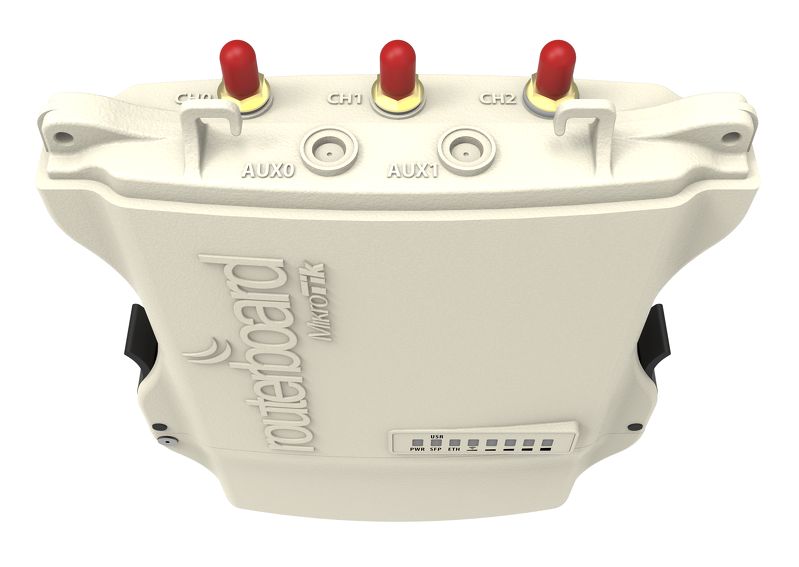

RB921UAGS-5SHPacT-NM version is equipped with Super High power 3×3 Tripple Chain 802.11ac wireless and three RP-SMA connectors for external antennas



– RB921UAGS-5SHPacD-NM (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).



Specifications

Details
Product code RB921UAGS-5SHPacT-NM
Architecture MIPSBE
CPU QCA9557
CPU core count 1
CPU nominal frequency 720 MHz
Dimensions 143x247x48mm (PCB)
License level 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40°C to 70°C
Suggested price $169.00


Powering

Details
PoE in Passive PoE
PoE in input Voltage 8-30 V
Number of DC inputs 1 (PoE-IN)
Max power consumption 25 W
Max power consumption without attachments 21W


Wireless

Details
Wireless 5 GHz number of chains 3


Ethernet

Details
10/100/1000 Ethernet ports 1


Fiber

Details
SFP DDMI yes
SFP ports 1


Peripherals

Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1


Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes


Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 33 -96
54MBit/s 31 -81
MCS0 33 -96
MCS7 31 -77
MCS9 27 -72

Additional information

Weight 1.3000 kg
Brand

Mikrotik

Frequency

5 Ghz

Applications

Outdoor
