MikroTik OmniTikG-5HacD

SKU: 1010190001005 Categories: , , , , , ,

89.54

OmniTik 5 ac features five Gigabit Ethernet ports and support for 802.11ac. It’s equipped with a powerful 720MHz CPU, 128MB RAM, high power 1,300mW 802.11a/n/ac Dual Chain wireless (support for AC as well as backwards compatible with regular 802.11a/n CPE) and comes with a new design weatherproof outdoor enclosure, two integrated 7.5dBi 5GHz omni antennas, a power supply, a PoE injector and a mounting kit.

Out of stock

Description

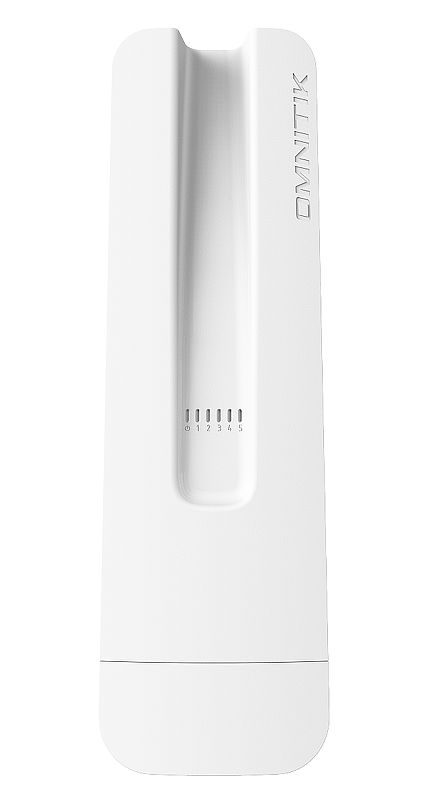

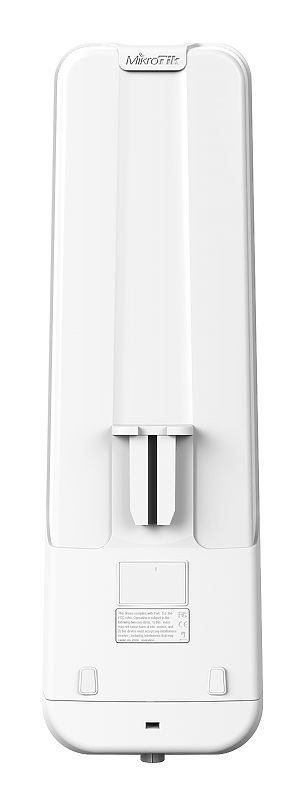

OmniTIK 5 ac

We are glad to introduce a significant upgrade to our popular OmniTik 5GHz access points!

OmniTik 5 ac features five Gigabit Ethernet ports and support for 802.11ac. It’s equipped with a powerful 720MHz CPU, 128MB RAM, high power 1,300mW 802.11a/n/ac Dual Chain wireless (support for AC as well as backwards compatible with regular 802.11a/n CPE) and comes with a new design weatherproof outdoor enclosure, two integrated 7.5dBi 5GHz omni antennas, a power supply, a PoE injector and a mounting kit.

– OmniTIK 5 ac US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

– OmniTIK 5 ac (International) supports 5150MHz-5875MHz range.

Product specifications

Details
Product code RBOmniTikG-5HacD
CPU nominal frequency 720 MHz
CPU core count 1
Size of RAM 128 MB
10/100/1000 Ethernet ports 5
Wireless chip model QCA9892
Wireless standards 802.11a/n/ac
Number of USB ports 1
Supported input voltage 10 V – 57 V
PoE in 802.3af/at
Dimensions 416 x 129 x 58 mm
Operating System RouterOS
Tested ambient temperature -40 +70 C
License level 4
Antenna gain DBI 7.5
CPU QCA9557
Max Power consumption 14W
USB slot type USB type A
USB Power Reset Yes
Number of chains 2
Storage type FLASH
Storage size 16 MB
Suggested price $109

Wireless specifications

5 GHz
  Transmit power (dBm) Receive Sensitivity Transmit power (mW)
6MBit/s 31 -96 1259
54MBit/s 27 -81 501
MCS0 30 -96 1000
MCS7 27 -77 501
MCS9 22 -72 158

wireless parameters may be limited in software, depending on your local regulatory limitations

Ethernet test results

RBOmniTikG-5HacD QCA9557 (720MHz) 1G all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 161.9 1966.1 329.2 1348.4 495.6 2Mikrotik Technical Support.7
Bridging 25 bridge filter rules 124.3 1509.5 124.1 508.3 126.9 65
Routing none (fast path) 161.9 1966.1 366.4 1500.8 477.2 244.3
Routing 25 simple queues 161.9 1966.1 181.4 743 192.7 98.7
Routing 25 ip filter rules 67.6 820.9 70.6 289.2 61.8 31.6
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
  4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

Additional information

Weight 1.7000 kg
Brand

Mikrotik

Features (Beta)
Frequency

5 Ghz
