MikroTik OmniTikPG-5HacD PoE ac

Sku:1010190001006

OmniTik 5 PoE ac features five Gigabit Ethernet ports and support for 802.11ac. It’s equipped with a powerful 720MHz CPU, 128MB RAM, high power 1,300mW 802.11a/n/ac Dual Chain wireless (support for AC as well as backwards compatible with regular 802.11a/n CPE) and comes with a new design weatherproof outdoor enclosure, two integrated 7.5dBi 5GHz omni antennas, a power supply, a PoE injector and a mounting kit.

€106.03

Availability: In stock

  • Buy 5 for €105.58 each and save 1%
  • Buy 10 for €104.69 each and save 2%
  • Buy 20 for €104.24 each and save 2%
  • Buy 50 for €103.79 each and save 3%

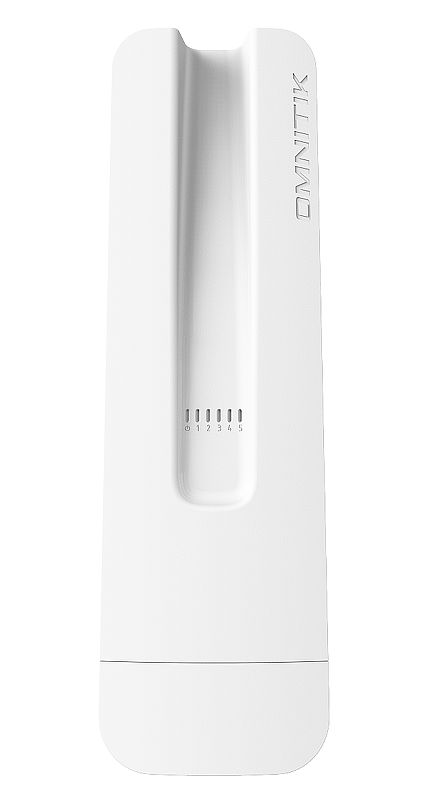

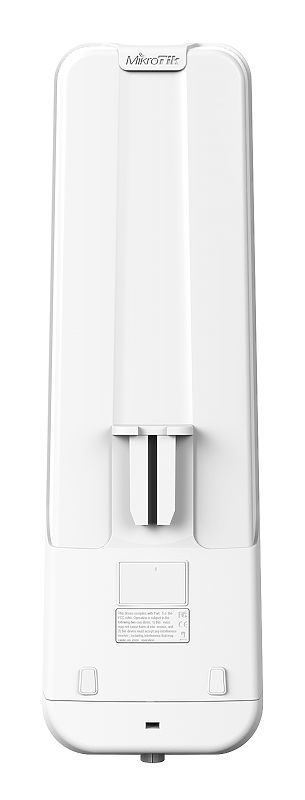

OmniTIK 5 PoE ac

We are glad to introduce a significant upgrade to our popular OmniTik 5GHz access points!

OmniTik 5 PoE ac features five Gigabit Ethernet ports and support for 802.11ac. It’s equipped with a powerful 720MHz CPU, 128MB RAM, high power 1,300mW 802.11a/n/ac Dual Chain wireless (support for AC as well as backwards compatible with regular 802.11a/n CPE) and comes with a new design weatherproof outdoor enclosure, two integrated 7.5dBi 5GHz omni antennas, a power supply, a PoE injector and a mounting kit.

It also supports passive or standard 802.3at/af PoE input/output (12v-57v). Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power 48V devices (like IP camera), if 48V input is used.

- OmniTIK 5 PoE ac US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- OmniTIK 5 PoE ac (International) supports 5150MHz-5875MHz range.

Product specifications

Details
Product code RBOmniTikPG-5HacD
CPU nominal frequency 720 MHz
CPU core count 1
Size of RAM 128 MB
10/100/1000 Ethernet ports 5
Wireless standards 802.11a/n/ac
Wireless chip model QCA9892
Number of USB ports 1
PoE in 802.3af/at
PoE out 802.3at
Supported input voltage 12 V - 57 V
Voltage Monitor Yes
PCB temperature monitor Yes
Dimensions 416 x 129 x 58 mm
Operating System RouterOS
License level 4
Antenna gain DBI 7.5
CPU QCA9557
Max Power consumption 18W
USB Power Reset Yes
USB slot type USB type A
Number of chains 2
Storage type FLASH
Storage size 16 MB
Suggested price $129

Wireless specifications

5 GHz
 Transmit power (dBm)Receive SensitivityTransmit power (mW)
6MBit/s 31 -96 1259
54MBit/s 27 -81 501
MCS0 30 -96 1000
MCS7 27 -77 501
MCS9 22 -72 158



wireless parameters may be limited in software, depending on your local regulatory limitations



Ethernet test results

RBOmniTikPG-5HacD QCA9557 (720MHz) 1G all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 161.9 1966.1 329.2 1348.4 495.6 253.7
Bridging 25 bridge filter rules 124.3 1509.5 124.1 508.3 126.9 65
Routing none (fast path) 161.9 1966.1 366.4 1500.8 477.2 244.3
Routing 25 simple queues 161.9 1966.1 181.4 743 192.7 98.7
Routing 25 ip filter rules 67.6 820.9 70.6 289.2 61.8 31.6
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
  4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
