Description

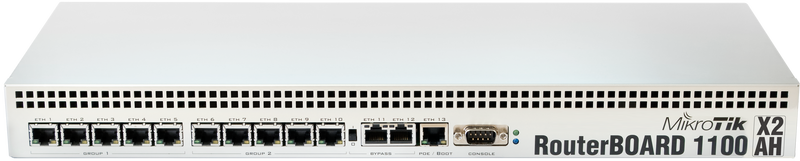

RB1100AHx2 is 1U rackmount Gigabit Ethernet router – with a dual core CPU, it can reach up to a million packets per second and supports hardware encryption!

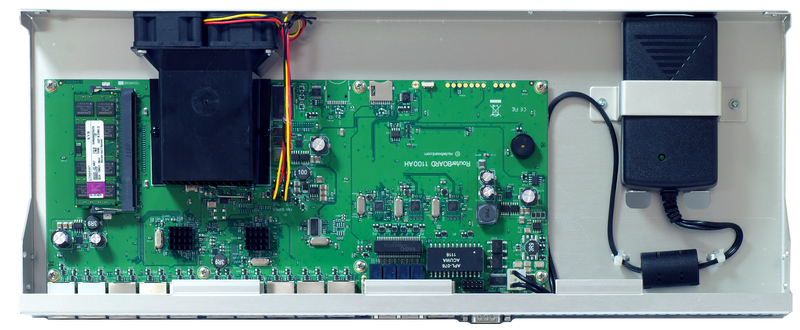

It has thirteen individual gigabit Ethernet ports, two 5-port switch groups, and includes Ethernet bypass capability. 2GB of SODIMM RAM are included, there is one microSD card slot, a beeper and a serial port.
The RB1100AHx2 comes preinstalled in a 1U aluminium rackmount case, power supply and power plug, assembled and ready to deploy.
Specifications
| Details | |
|---|---|
| Product code | RB1100AHx2 |
| Architecture | PPC |
| CPU | P202ASSE2KFB |
| CPU core count | 2 |
| CPU nominal frequency | 1066 MHz |
| Dimensions | 1U case: 44 x 176 x 442 mm, 1200g. Board only: 365g |
| License level | 6 |
| Operating System | RouterOS |
| Size of RAM | 2 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -35°C to 70°C |
| Suggested price | $349.00 |
Powering
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input Voltage | 10-28 V |
| Number of AC inputs | 1 |
| AC input range | 100-240 |
| Number of DC inputs | 2 (2-pin terminal, PoE-IN) |
| 2-pin terminal input Voltage | 7-28 V |
| Max power consumption | 25 W |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 13 |
Peripherals
| Details | |
|---|---|
| Memory card type | microSD |
| Memory Cards | 1 |
| Serial port | RS232 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
