Description

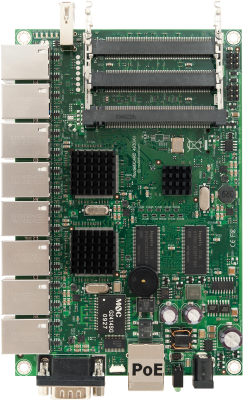

RB493G
The RB493G has nine Gigabit ethernet ports, three miniPCI slots, and two switch chips, so the ethernet ports can be connected together in two switch groups for wire speed throughput.
The RB493G also has a USB 2.0 port and a microSD card slot for adding more storage or a 3G USB modem for backup connectivity.
The heart of this device is a high performance Atheros AR7161 CPU and it features 256MB of built in RAM. RB493G includes RouterOS – the operating system, which will turn this powerful system into a highly sophisticated router, firewall or bandwidth manager.
Product specifications
| Details | |
|---|---|
| Product code | RB493G |
| CPU nominal frequency | 680 MHz |
| CPU core count | 1 |
| Architecture | MIPS-BE |
| Size of RAM | 256 MB |
| 10/100/1000 Ethernet ports | 9 |
| MiniPCI slots | 3 |
| Number of USB ports | 1 |
| Power Jack | 1 |
| Supported input voltage | 8 V – 28 V |
| PoE in | Yes |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| Dimensions | 105mm x 160mm |
| Operating System | RouterOS |
| Tested ambient temperature | -40°C .. +70°C tested |
| License level | 5 |
| CPU | AR7161 |
| Serial port | RS232 |
| Storage type | NAND |
| Storage size | 64 MB |
| Suggested price | $199.00 |
Ethernet test results
| RB493G | AR7161 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none | 58.0 | 704.4 | 171.9 | 704.1 | 187.3 | 95.9 |
| Bridging | 25 bridge filter rules | 58.5 | 710.4 | 84.5 | 346.1 | 86.4 | 44.2 |
| Routing | none | 59.7 | 725.0 | 136.1 | 557.5 | 147.0 | 75.3 |
| Routing | 25 simple queues | 55.2 | 670.3 | 117.7 | 482.1 | 137.0 | 70.1 |
| Routing | 25 ip filter rules | 54.7 | 664.3 | 59.4 | 243.3 | 59.2 | 30.3 |
