Metal 5 – RBMetal5SHPn

SKU: 1010190002000 Categories: , ,

75.25

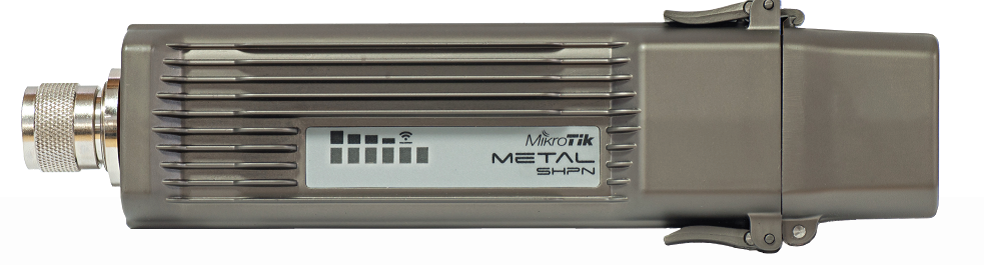

MikroTik – RouterBoard – RBMetal5SHPn – 5Ghz Integrated AP/Backbone/CPE, N-male connector

Out of stock

Description

The new, completely waterproof, rugged, and super high powered RouterBOARD Metal. The serious outdoor wireless device!

Fully sealed, industrial design metal case, powered by RouterBOARD and RouterOS. high output power – to reach the last mile, in any conditions! It comes with L4 license, so you can attach your favorite 5Ghz antennna to use it as an AP, to make wireless point-to-point links or as a CPE- whatever you prefer!

It has a built-in N-male connector, and pole attachment points, so you can attach it to an antenna directly, or use a standard antenna cable. LED signal indicators make it easy to install and align.

Package contains Metal-5SHPn, mounting loops, PoE injector, power adapter



– RBMetal5SHPn (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).



Specifications

Details
Product code RBMetal5SHPn
Architecture MIPSBE
CPU AR7241
CPU core count 1
CPU nominal frequency 400 MHz
Dimensions 177x44x44mm, 193g
License level 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40°C to 70°C
Suggested price $99.00


Powering

Details
PoE in Passive PoE
PoE in input Voltage 10-30 V
Number of DC inputs 1 (PoE-IN)
Max power consumption 10.6 W


Wireless

Details
Wireless 5 GHz number of chains 1


Ethernet

Details
10/100 Ethernet ports 1


Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes


Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 31 -93
54MBit/s 27 -77
MCS0 30 -92
MCS7 28 -71



Additional information

Weight 0.7000 kg
Brand

Mikrotik

Features (Beta)

Ethernet ports , Poe in , Wireless

Frequency

5 Ghz

Applications

Outdoor
