QRT 5 ac – RB/911G-5HPacD-QRT

154.04

MikroTik – RB 911G-5HPacD-QRT – QRT 5 ac – Dual chain 5GHz 802.11a/n/ac QCA9882, 128 MB RAM, 720 MHz CPU, 24 DBi antenna gain

Out of stock

Description

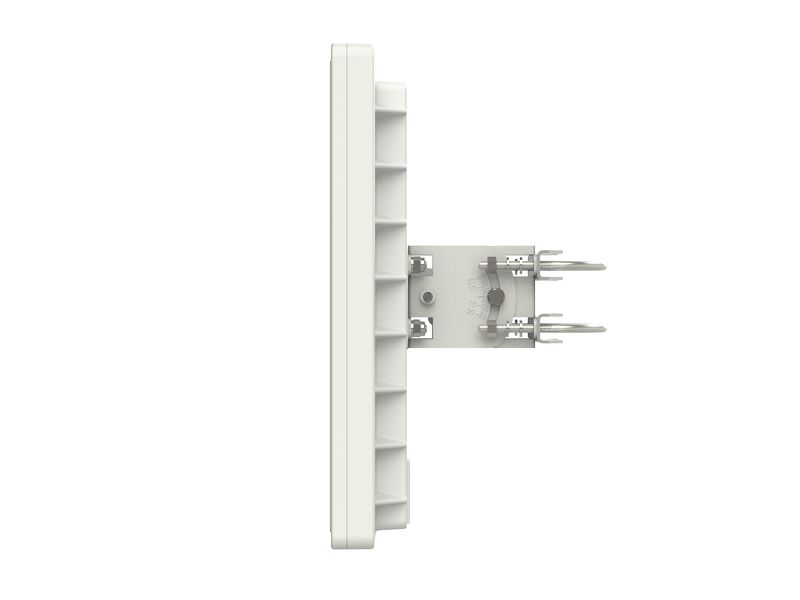

The QRT 5 ac is a rugged outdoor flat panel antenna, with a built in RouterBOARD. The device has a 24dBi antenna and a high power 5GHz wireless transmitter which now supports 802.11ac and is also backwards compatible with 802.11a/n.

Inside is the high power RB911G-5HPacD dual chain wireless device, with high performance, high output power wireless transmitter. It has a Gigabit Ethernet port, to fully utilise the benefit of 802.11ac high speed wireless.

Easy to use and quick to deploy, QRT is ideal for longer point to point links at 802.11ac speeds.



We got only one version:

– QRT 5 ac (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).



Specifications

Details
Product code RB911G-5HPacD-QRT
Architecture MIPSBE
CPU QCA9557
CPU core count 1
CPU nominal frequency 720 MHz
Dimensions 309x320x50mm
License level 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40°C to 70°C
Suggested price $199.00


Powering

Details
PoE in Passive PoE
PoE in input Voltage 8-30 V
Number of DC inputs 1 (PoE-IN)
Max power consumption 10.5 W


Wireless

Details
Antenna gain dBi for 5 GHz 24
Wireless 5 GHz standards 802.11a/n/ac
Wi-Fi generation 5
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz chip model QCA9882


Ethernet

Details
10/100/1000 Ethernet ports 1


Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes


Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 31 -96
54MBit/s 27 -81
MCS0 30 -96
MCS7 27 -77
MCS9 22 -72

Additional information

Weight 3.0000 kg
Brand

Mikrotik

Features (Beta)
Frequency

5 Ghz
