 Passive PoE injector LED



Passive Power Over Ethernet RJ45 Injector with status led

PoE Adapter for ALIXembedded boards and RouterBoard.

Ideal for power supply of CPE Client’s stations and base stations.

Adapter with LED diode indicating power.

Provides power via Ethernet cable

Requires the application of powersupply with following parameters:

– stabilized voltage of DC – 12 to 48V

– suggested power supply 15W

– powerplug with a diameter of 2.1 mm (positive pole inside)

Power output:

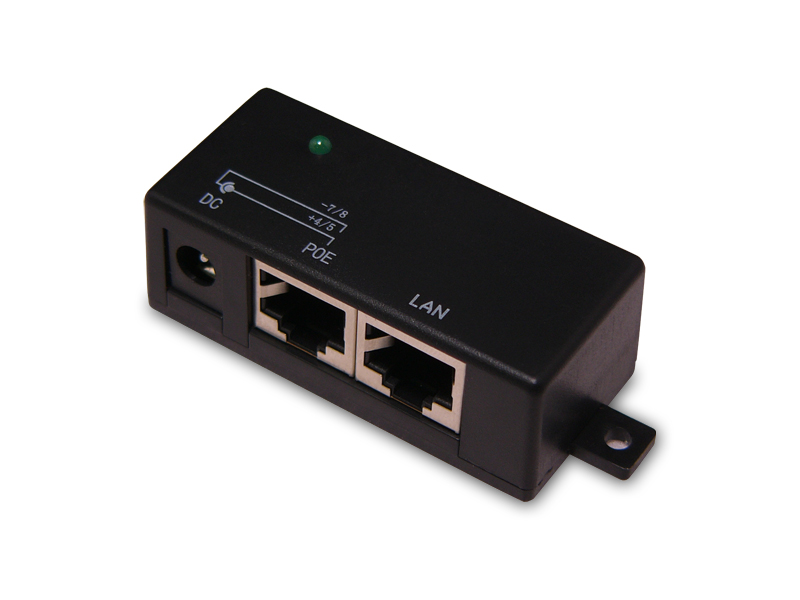

– positivepole on pins 4 and 5 of ethernet socket (pictured: left socket)

– negativepole on pins 7 and 8 of the same socket
