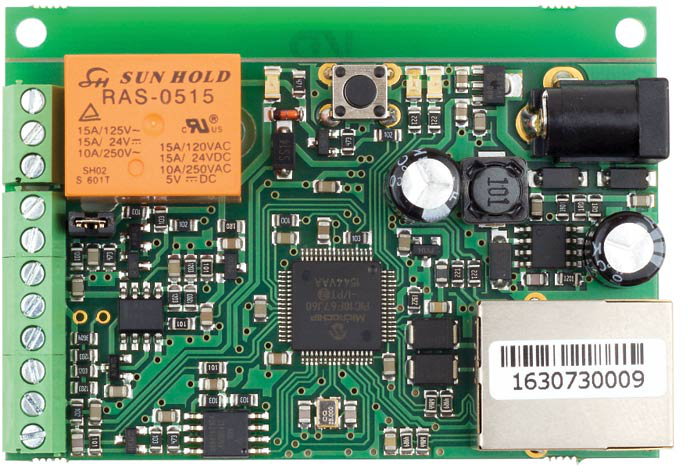

Teracom SNMP Ethernet Controller TCW112-WD

Sku:1010156000010

Teracom SMNP Ethernet Controlle TCW112-WD - IP Watchdog is an Ethernet controller, which is designed to work in IP-based networks. It has 1 digital and 1 analog input, 1-Wire interface and 1 relay output. It can be managed by WEB interface and/or SNMP programs.
€47.20

Availability: In stock

Teracom SMNP Ethernet Controller TCW112-WD - IP Watchdog

is an Ethernet controller, which is designed to work in IP-based networks. It has 1 digital and 1 analog input, 1-Wire interface and 1 relay output. It can be managed by WEB interface and/or SNMP programs. The relay can be activated either remotely (WEB, SNMP etc.) or locally - from presence/absence of ping (echo request or echo replay). SNMP trap can be sent for every monitored parameter (temperature, humidity, analog voltage and dry contact) if it goes outside of previously predefined range. Special schematic is utilized for long 1-Wire support.

Download TCW112-WD datasheet.pdf

Technical features TCW112-WD - IP Watchdog

10 Mb Ethernet connectivity;

Password protected, web based configuration and control;

1 digital input with " dry contact" and "logic level" modes;

1 analog input with 0 to 60VDC range;

1 relay with NO and NC contacts;

Long 1-Wire support for 1 temperature (TST1XX) or temperature/humidity (TSH2xx) sensor;

SNMP v.1 support;

SNMP traps sending for alert conditions;

VLAN support;

MAC address filtering;

Remote FTP firmware update.

Typical applications TCW112-WD - IP Watchdog

IP watchdog for ISP networks;

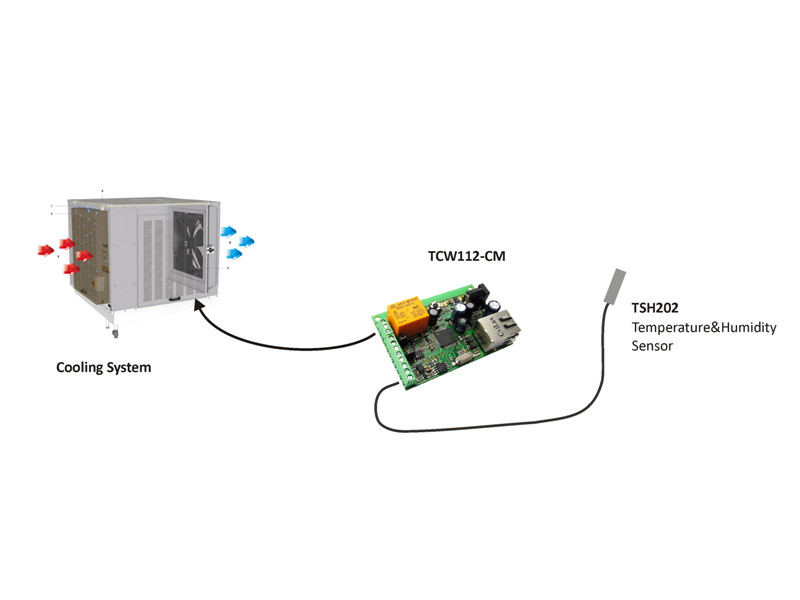

Environmental monitoring of server rooms;

Control and management of ISP networks;

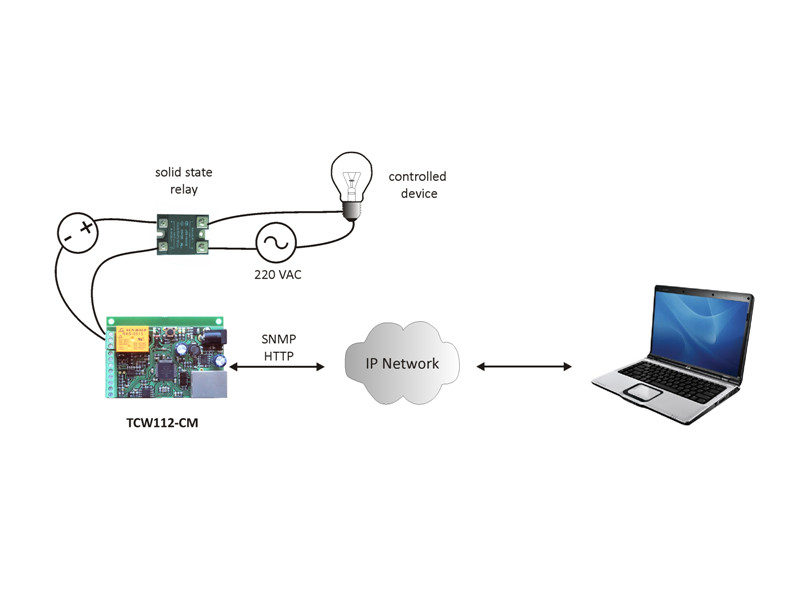

Remote control of electric devices.

Technical parameters TCW112-WD - IP Watchdog

Supply voltage, VDC: 12 ± 2

Maximum current consumption ( with activated relay), mA: 120

Weight g: 45

Dimensions, mm: 72 x 50 x 18

Operating temperature, °C: 0 to +40

Maximum humidity in 0 to 31°C range, %RH: 80

Maximum humidity at 40°C (linear slope between 31-40°C), %RH: 50

Minimum high level input voltage for digital inputs, VDC: +2.5

Maximum low level input voltage for digital inputs, VDC: +0.8

Maximum input voltage for digital inputs, VDC: +5.5

Analog input range, VDC: 0 to +60

Supply voltage for 1-wire bus (+VW), VDC: 5.3 ± 0.2

Maximum output current for 1-wire bus (+VW), A: 0.2

Supply voltage for analog sensor (+VA), VDC: 5.0 ± 0.1

Maximum output current for analog sensor (+VA), A: 0.1

Maximum switchable current for relay contacts, А: 3

Maximum switchable voltage for relay contacts, VAC/VDC: 30/24



Now Teracom have released Android and iPhone applications for TCW122B-CM, TCW181B-CM and TCW240B.

https://play.google.com/store/apps/details?id=cc.teracom.app.android

ANDROID TERACOM

and

https://itunes.apple.com/us/app/tcw-control/id909213142?mt=8.

APPLE TERACOM
