Description
Protect your networks from the most brutal environments with Ubiquiti’s industrial-grade shielded Ethernet cable, TOUGHCable.
Increase Performance
Dramatically improve your Ethernet link states, speeds, and overall performance with Ubiquiti TOUGHCables.
Extreme Weatherproof
TOUGHCables have been built to perform even in the harshest weather and environments.
ESD Damage Protection
Protect your networks from devastating electrostatic discharge (ESD) attacks.
Extended Cable Support
TOUGHCables have been developed to increase power handling performance for extended cable run lengths.
Bulletproof your networks
TOUGHCable is currently available in two versions: PRO Shielding Protection and CARRIER Shielding Protection.
TOUGHCable PRO A Category 5e, outdoor, carrier-class shielded cable with an integrated ESD drain wire.

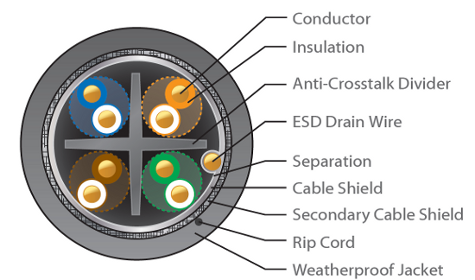

TOUGHCable CARRIER A Category 5e, outdoor, carrier‑class shielded cable that features an integrated ESD drain wire, anti‑crosstalk divider, and secondary shielding. It is rated to provide optimal performance on Gigabit Ethernet networks.
Additional Information:
- 24 AWG copper conductor pairs
- 26 AWG integrated ESD drain wire to prevent ESD attacks and damage
- PE outdoor-rated, weatherproof jacket
- Multi-layered shielding
- Available in lengths of 1000 ft (304.8 m)
|
TOUGHCable CARRIER Specifications |
||
|
Level 2 Shielding Protection |
Cable |
CAT5e, Shielded |
|
Ethernet Support |
Up to 1 Gbps |
|
|
Conductor Wire Gauge |
24 AWG |
|
|
Conductor |
Solid Bare Copper |
|
|
Conductor Diameter |
0.500 ± 0.005 mm |
|
|
Insulation Type |
Solid PE |
|
|
Insulation Thickness |
AVG: 0.295 mm, MIN: 0.29 mm |
|
|
Insulation Diameter |
1.16 ± 0.02 mm |
|
|
Separation (Polyester Wrapping) |
Thick: 0.025 mm, Extent: 20 mm |
|
|
Anti-Crosstalk Divider |
LDPE: 4.2*0.3 mm |
|
|
Cable Shield (Aluminum Foil) |
Thick: 0.060 mm, Extent: 20 mm |
|
|
ESD Drain Wire |
0.4 TC |
|
|
Rip Cord |
Yes |
|
|
Secondary Cable Shield (Braid) |
16*8*0.16AA Density: 95% |
|
|
Jacket Material |
PE |
|
|
Jacket Thickness |
AVG: 0.52 mm, MIN: 0.46 mm |
|
|
Jacket Outer Diameter |
6.8 ± 0.30 mm |
|
|
Jacket Color |
Gray |
|
|
Reference Standard |
ISO/IEC 11801, TIA/EIA568B.2 |
|
|
CARRIER Performance |
|||||
|
Frequency(MHz) |
RL (dB)min. |
Attenuation |
NEXT/PSNEXT (dB) |
ACR (dB) |
ELFEXT/PSELFEXT (dB/100 m) |
|
1 |
18.0 |
1.93 |
65.30 |
60.30 |
61.00 |
|
4 |
19.9 |
3.90 |
56.27 |
49.20 |
48.96 |
|
8 |
20.7 |
5.50 |
51.75 |
43.00 |
42.94 |
|
10 |
21.0 |
6.30 |
50.30 |
40.80 |
41.00 |
|
16 |
21.0 |
8.00 |
47.24 |
36.10 |
36.92 |
|
20 |
21.0 |
9.00 |
45.78 |
33.50 |
34.98 |
|
25 |
20.3 |
10.20 |
44.33 |
30.90 |
33.04 |
|
31.25 |
19.5 |
11.50 |
42.88 |
28.20 |
31.10 |
|
62.5 |
19.0 |
16.70 |
38.36 |
18.40 |
25.08 |
|
100 |
18.3 |
21.70 |
35.30 |
10.30 |
21.00 |
|
200 |
16.5 |
32.20 |
30.78/27.78 |
7.60 |
17.78/14.98
|
