WX552002

SKU: 9030010502002 Categories: , , ,

29.90

WX SERIES – Weatherproof Case IP67 with integrated 5Ghz MTI Antennas 20 dBi with Pigtail IPEX(U.fl)+ Eth Connector System RJ45 IP68 cable gland + mounting kit

100 in stock

Description

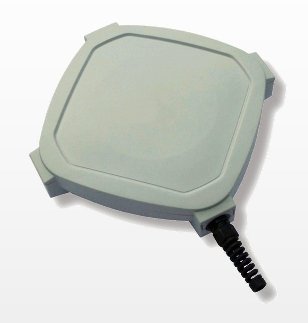

The new enclosure WX552002 is the ideal solution for professional outdoor wireless applications.

It has been designed and manufactured with the outmost care using the best quality materials and components.
It features innovative characteristics that enhance the flexibility of the assembled product.
This enclosure is particularly suitable for WISP operating in wide area networks.

Enclosure
The enclosure is made of UV Stabilized nylon with a built-in grounding system to facilitate the grounding of the electronic board.
The unit is waterproof (IP67) thanks to a moulded gasket.
The Ethernet connector is completely inserted into the case to guarantee maximum sturdiness.
A flexible cable gland avoids sharp bends on the external cable.
Knock-out N holes on one side of the case allow to easily add up to three additional antennas.
A lightweight, heavy duty mounting kit (anodized aluminium and stainless steel) allows vertical, horizontal and 45 polarization and a wide angle tilt.

High Performances Antenna
An integrated high performance 20dBi antenna allows long distance links and signal stability.
The antenna s ground plate has four stand-offs for an easy and fast installation of the electronic boards. The position of the stand-offs fits perfectly Mikrotik RouterBoards.
A Pigtail with U.fl connector and 14cm RG178U cable is integrated with the antenna.

MIKROTIK

Applications
5GHz, WiFi and WiMax
Long range Point to Point solution
CPE and HotSpot applications

Includes
1 Enclosure Waterproof IP67 5GHz

1 Antenna 20 dBi DC ground

1 Integrated pigtail with U.fl connector

1 Mounting Kit
1 RJ45 Ethernet Connector with Cable gland

Watch the WX assembling tutorial

Additional information

Weight 2.7100 kg
Brand

Townet

Features (Beta)

Wireless

Frequency

5 Ghz

Applications

Outdoor
