1100AHx4

232.40

13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit.

Out of stock

Description

Introducing RB1100AHx4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).

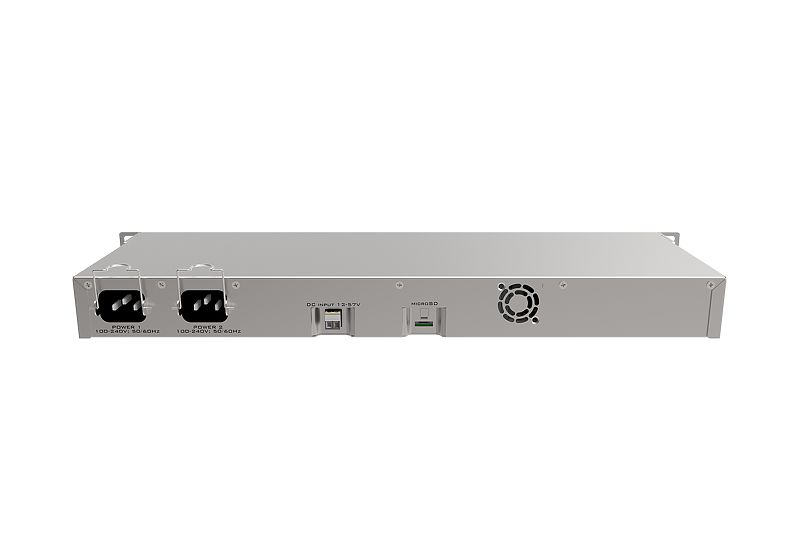

Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).





Specifications

Details
Product code RB1100x4
Architecture ARM 32bit
CPU AL21400
CPU core count 4
CPU nominal frequency 1.4 GHz
Dimensions 444 x 148 x 47 mm
License level 6
Operating System RouterOS
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40°C to 70°C
Suggested price $299.00


Powering

Details
PoE in 802.3af/at
PoE in input Voltage 20-57 V
Number of AC inputs 2
AC input range 100-240
Number of DC inputs 2 (2-pin terminal, PoE-IN)
2-pin terminal input Voltage -48, 12-57 V
Max power consumption 20 W


Ethernet

Details
10/100/1000 Ethernet ports 13


Peripherals

Details
Memory card type microSD
Memory Cards 1
Serial port RS232


Other

Details
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes

Additional information

Weight 0.5000 kg
Brand

Mikrotik

Features (Beta)
Applications

Indoor
