55-90-NV 5GHz Sector Antenna 90 Mars Antenna MA-WD55-16B

SKU: 1060020400090 Categories: , , ,

135.80

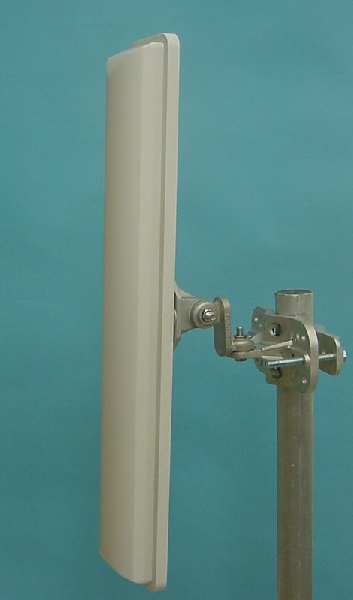

55-90-NV 5GHz Sector Antenna 90° Vertical (with mounting kit)

3 in stock

Description

MARS 90 Broadband Sector (Base Station) Antenna provides a cost effective solution for large scale WLL, WLAN, H-LAN, ISM, UNII, Public Safety, Municipal MESH Networks and Point-to-Multi-Point applications.

Additional Features

  • stable performance with 16 dBi of gain
  • small size allowing for easy blending with any environment
  • tilt mount allowing for quick and easy installation
  • UV protected radome suitable for harsh environment installations

Electrical specifications

Frequency range: 4.9 – 6.1 GHz

Gain,typ.: 16 dBi

VSWR, max.: 1.8:1

3 dB Beam-Width, H-Plane, typ.: 90

3 dB Beam-Width, E-Plane, typ.: 8

Side Lobes, min.: ETSI EN 302 085 V1.2.3 CS1

Polarization: Linear Vertical

Cross Polarization, min.: ETSI EN 302 085 V1.2.3 CS1

Front to Back Ratio, min.: ETSI EN 302 085 V1.2.3 CS1

Input power, max: 50 Watt

Input Impedance: 50 Ohm

Lightning Protection: DC Grounded

Mechanical specifications

Dimensions (HxWxD): 573 x 95 x Mikrotik Technical Support mm (22.6″x3.7″x2.1″)

Weight: 700 gr.

Connector: N-Type,Female

Back Plane: Aluminum protected through chemical passivation

Radome: UV Protected, Plastic

Mount: MNT-22

Environmental specifications

Operating Temperature Range – 40 C to + 65 C

Vibration: According to IEC 60721-3-4

Wind Load: 200 km/h (survival)

Flammability: UL94

Water Proofing: IP-65

Ice and Snow: 25mm radial (survival)

Salt Fog: According to IEC 68-2-11

Service Life: >10 years

Standard Compliance

ETSI EN 302 085 V1.2.3 CS1

Additional information

Weight 1.8000 kg
Brand

Townet

Frequency

5 Ghz
