AF-5X AirFiber 5X

Sku:9000014501001

Ubiquiti - 810354022074 - AF 5X AirFiber 5X
365,60 €

Availability: Out of stock

  • Buy 5 for 354,21 € each and save 4%
  • Buy 10 for 351,92 € each and save 4%
  • Buy 20 for 349,64 € each and save 5%

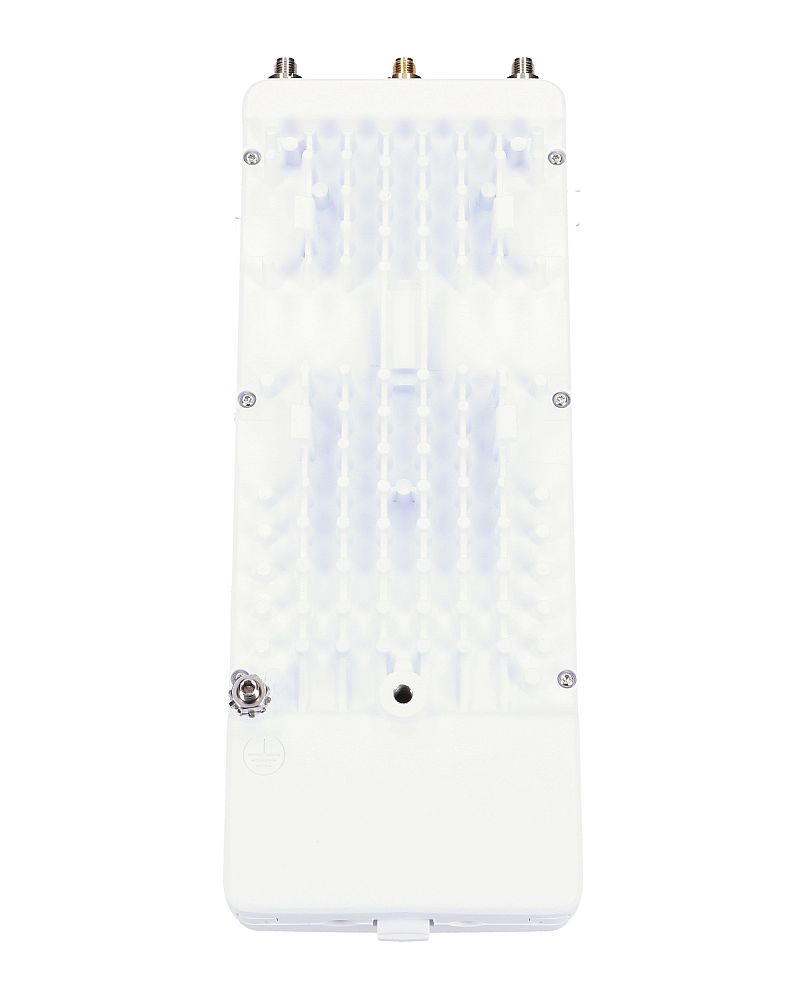

The airFiber AF-5X 5 GHz Carrier Backhaul Radio from Ubiquiti Networks is designed for long-range, Point-to-Point (PtP) backhaul links. It features a high TDD throughput and Hybrid Division Duplexing (HDD) technology that helps the device achieve low latency. The airFiber 5X also allows users to customize backhaul links or upgrade existing PtP links.

The airFiber AF-5X operates using the 5 GHz frequency band and features a range of 656,168' / 200,000m. Included with this device is a GPS antenna mount, an external GPS antenna, a metal strap, two cable ties, a 24V/1A airFiber PoE adapter with a mounting bracket, and a power cord.

Performance

Ubiquiti's INVICTUS silicon and radio architecture are designed specifically for long-distance, outdoor wireless applications. Their INVICTUS core communications processing engine surpasses virtually all of the limitations inherent to generic Wi-Fi chips to help provide superior performance, long-range capability, DFS flexibility, and power output.

Backhaul

The AF-5X covers the entire, license-free, 5 GHz spectrum and includes DFS approval. Anyone around the world can deploy and operate the AF-5X in the 5 GHz range practically anywhere they choose (subject to local country regulations).

Operation in Unlicensed Bands

Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations virtually anywhere within the radio band to avoid local interference, and the channel centers are selectable in 1 MHz increments. You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements

Low Latency with HDD Technology

The airFiber X is designed to provide the highest TDD throughput and lowest latency available using proprietary Hybrid Division Duplexing (HDD) technology.

Co-Location

With tower space at a premium, the importance of being able to co-locate equipment is becoming an essential attribute for modern wireless networks. The airFiber X is engineered to permit multiple radios to operate side by side, allowing maximum spectral efficiency.

GPS Synchronization

Precise GPS frame synchronization enables co-located airFiber X radios to transmit and receive data without interfering with each other, enabling better frequency reuse and increased network stability.

Clean Power Output

Using advanced digital signal processing, the innovative airFiber X radio design has an ultra -clean transmitter output, reducing broadband noise, facilitating co-location, and enabling higher-order modulations like 256QAM for greater throughput.


Specifications

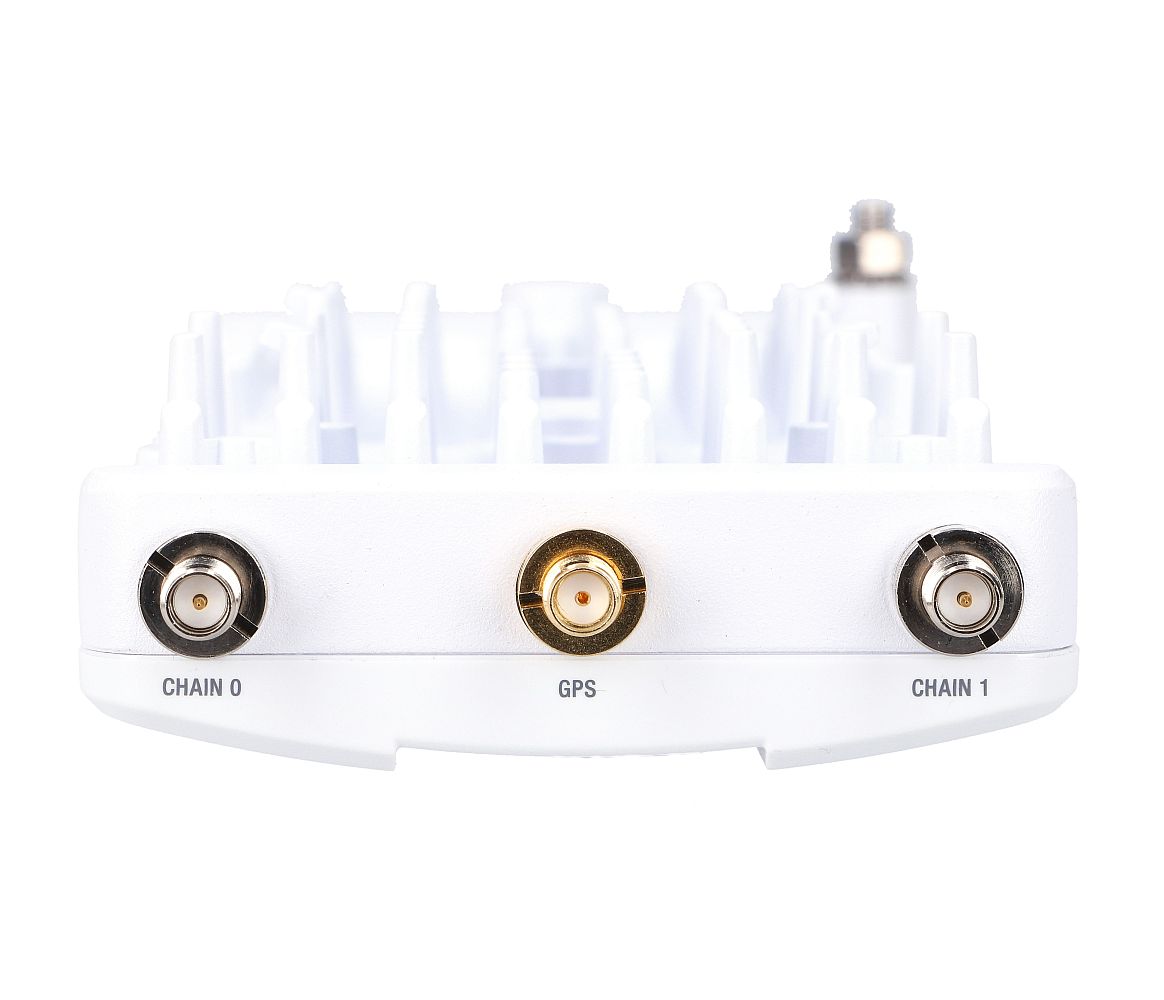

RF Connectors 2 x RP-SMA Weatherproof (CH0, CH1)
1 x SMA Weatherproof (GPS)
GPS Antenna External, Magnetic Base
Power Supply 24 V, 1 A PoE Gigabit Adapter (included)
Power Method Passive Power over Ethernet
Mounting airFiber X Mount (Rocket Mount compatible)
GPS Pole Mount (included)
Certifications DFS Certified FCC Part 15.407 CE EN 302502 v1.2.1, EN 301 893 v1.7.1



Networking Interfaces

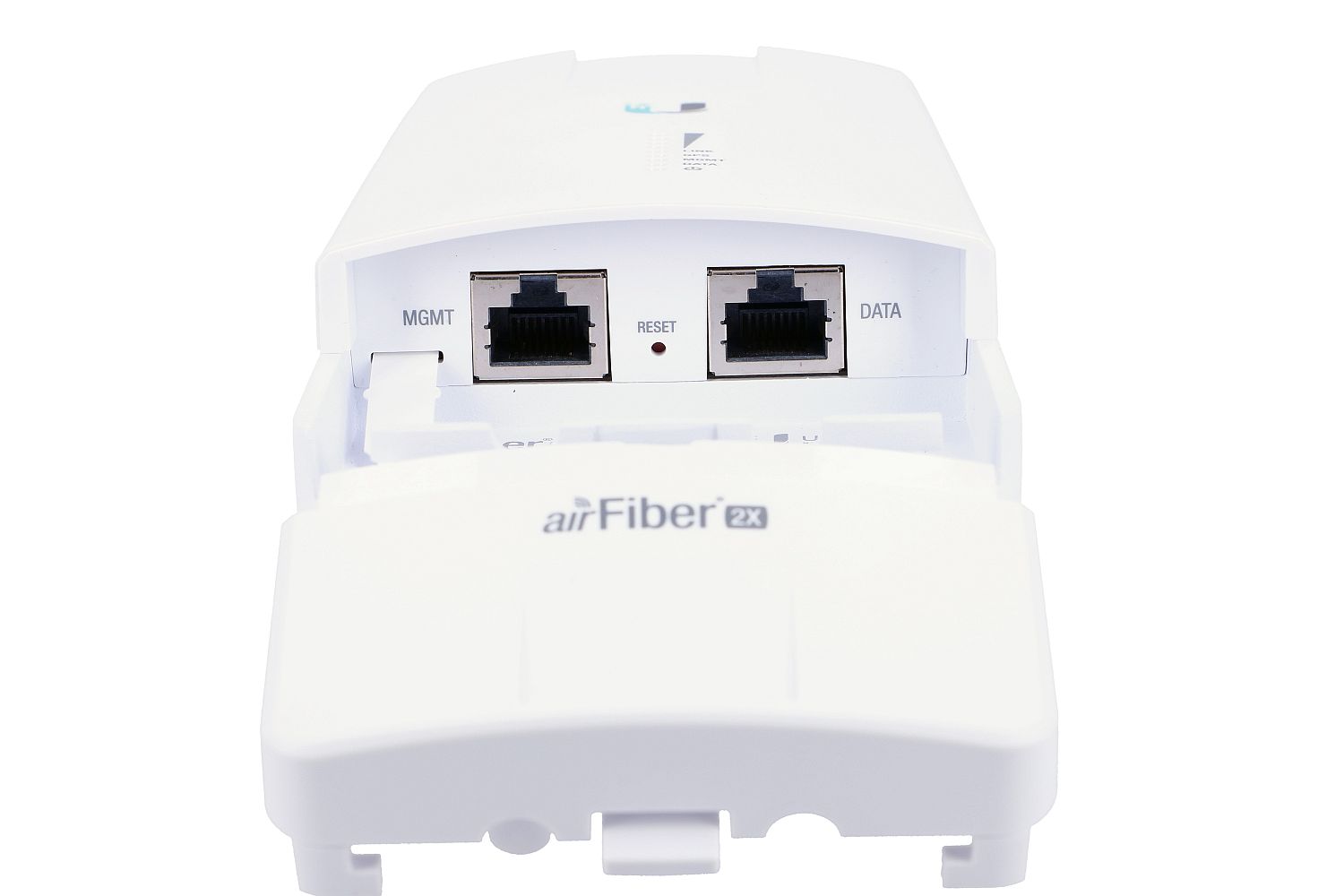

Data Port 1 x 10/100/1000 Ethernet Port
Management Port 1 x 10/100 Ethernet Port



System

Processor INVICTUS IC
Maximum Throughput 500+ Mbps
Maximum Range 656,168' / 200,000 m
Encryption 128-bit AES
Operating System airOS F
Wireless Modes Master/Slave



Radio Frequencies

Operating Frequency FCC 15.407: 5150 - 5350 MHz, 5470 - 5850 MHz
IC RSS-210: 5470 - 5600 MHz, 5650 - 5850 MHz
ETSI EN 301 893, EN 302 502: 5470 - 5875 MHz
Other Regions: 5150 - 5950 MHz
Power Max. Conducted TX Power: 26 dBm
(Dependent on regulatory region)
Frequency Accuracy ± 2.5 ppm without GPS synchronization
± 0.2 ppm with GPS synchronization
Channel Bandwidth 10/20/30/40/50 MHz selectable
Programmable uplink and downlink duty cycles



Environmental
Operating Temperature -40 to 131°F / -40 to 55°C



Dimensions & Weight
Dimensions 8.82 x 3.32 x 1.89" / 224.03 x 84.33 x 48.01 mm
Weight 0.77 lb / 0.35 kg



Packaging Info
Package Weight 2.405 lb
Box Dimensions (LxWxH) 10.65 x 4.4 x 4.35"
