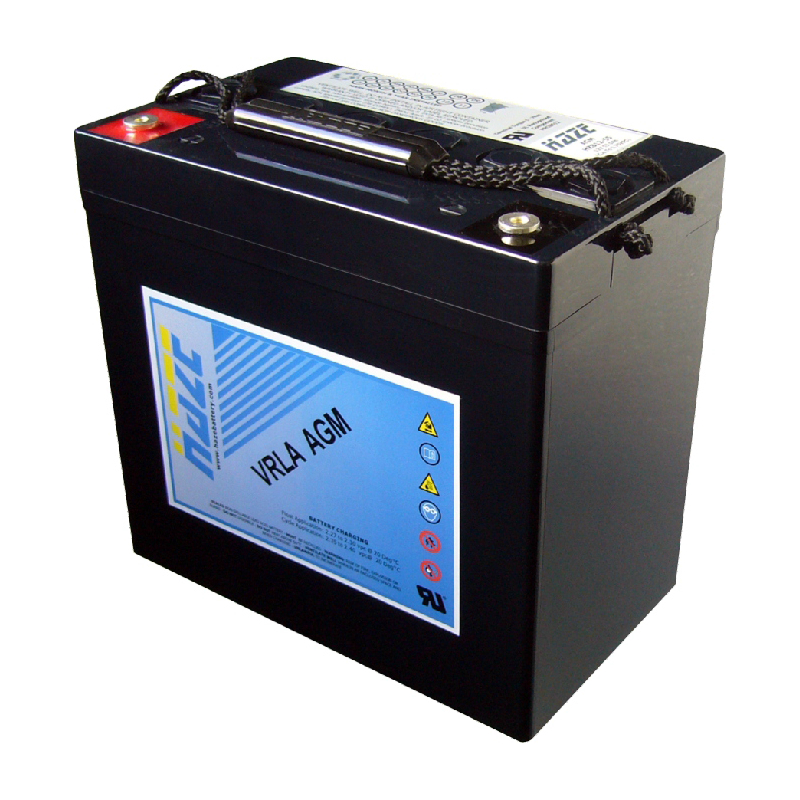

HZB12-55 12 Volts 55 Ah HAZE
HZB12-55 Valve Regulated Lead Acid battery.
12 year design life for stand by power applications.
12 Volts 55 Ah
§ Completely maintenance free, sealed construction eliminates the need for watering
§ Fully tank formed plates
§ Analytical Grade electrolyte
§ Spill proof / leak proof
§ Valve regulated Max internal pressure 2.5 psi
§ Multi-position usage
§ ABS Case and cover – V0 on request
§ Low self discharge
§ FAA and IATA approved as non-hazardous
§ Built to comply with IEC 896- 2, DIN 43Mikrotik Technical Support4, BS 6290 Pt4, Eurobat.
Nominal Voltage 12 Volts
Nominal Capacity 55Ah (C20 @ 20 oC)
Design Life 12 Years
Operating Temperature -20 °C to 50 °C
Grid alloy Calcium / Tin lead alloy
Plates Flat Pasted
Separator Absorbant Glass Mat
Active material Very high purity lead
Case and cover ABS (VO on request)
Charge Voltage Float 2.25 – 2.30 VPC @25 °C Cycliing 2.35 @25 °C
Max. 2.4 VPC Max ripple 0.05C (A)
Electrolyte Sulphuric acid Analytical grade purity
Venting Valve EPDM Rubber 1.5 to 2 psi (10.5 – 14 KPa) release pressure. Resealing at 1
psi (7 KPa)
Terminal Insert 16mm Dia M6 thread. Epoxy sealed by extended mechanical paths
Torque setting The recommended torque value for all types is 5-7 Nm
Cables Connectors, cables, terminal covers on request.
