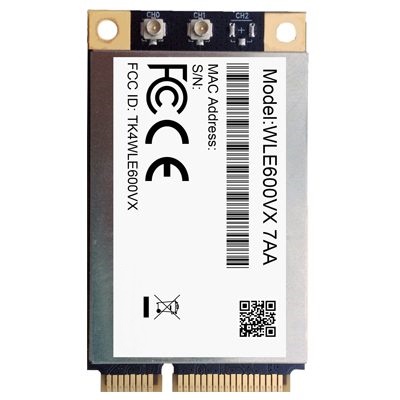

Description
- Qualcomm-Atheros QCA9882
- 2.4GHz max 21dBm output power & 5GHz max 20dBm output power (per chain)
- IEEE 802.11ac compliant & backward compatible with 802.11a/b/g/n
- 2X2 MIMO Technology & up to 867Mbps
- MiniPCI Express 1.1 interface
- Derived from QCA Reference Design XB140
SPECIFICATION TABLE
| PRODUCT TYPE | Wireless Module |
|---|---|
| CHIPSET | QCA9882 |
| WIRELESS STANDARD | 802.11n, 802.11g, 802.11b, 802.11ac, 802.11a |
| MIMO CHANNELS | 2×2 |
| OUTPUT (PER CHAIN) | 21dBm |
| FREQUENCY RANGE | 2.412 ~ 2.472 GHz, 5.180 ~ 5.825 GHz |
| WIRELESS SPEED | 867Mbps |
| INTERFACE | 1x MiniPCI-e Pin |
| MINIPCI-E PIN | v1.1 |
| POWER CONSUMPTION | 3.5 Watts (Max) |
| TEMPERATURE RANGE | Operating: -20ºC to 70ºC, Storage: -40ºC to 90ºC |
| HUMIDITY | Operating:5% to 95% (non-condensing) |
| CERTIFICATION | FCC, REACH, CE RED, RoHs Compliance |
| DIMENSION (W X H X D) | 30 x 50.9 x 3.2 mm |
| 2.4GHZ (PER CHAIN) | |||
|---|---|---|---|
| Data Rate | TX(dBm) | RX(dBm) | |
| 802.11b | 1Mbps | 20 | -95 |
| 11Mbps | 20 | -90 | |
| 802.11g | 6Mbps | 21 | -94 |
| 54Mbps | 18 | -80 | |
| 11n HT20 | MCS0 | 21 | -93 |
| MCS 7 | 16 | -76 | |
| 11n HT40 | MCS0 | 20 | -92 |
| MCS 7 | 16 | -73 | |
| 5GHZ (PER CHAIN) | |||
|---|---|---|---|
| Data Rate | TX (dBm) | RX (dBm) | |
| 802.11a | 6Mbps | 20 | -94 |
| 54Mbps | 15 | -80 | |
| 802.11n/ac | MCS0 | 19 | -93 |
| MCS 8 | 13 | -71 | |
| 11n/ac HT40 | MCS0 | 18 | -90 |
| MCS 9 | 13 | -66 | |
| 11ac HT80 | MCS0 | 18 | -88 |
| MCS 9 | 13 | -65 | |
