Description

DISTRIBUTORE EQUIPOTENZIALE RAME 7 POSIZIONI

ASI QBLOK2100

Power Distribution Module, 2 Busbars, 100 Amps, 1000 Volts, 7 Connections

Type QBLOK2P100A7, Power Distribution Module, 2 Bar, 100 Amps, 1000 Volts, 7 Connection Points Per Bar

Replaces QPOL2100N

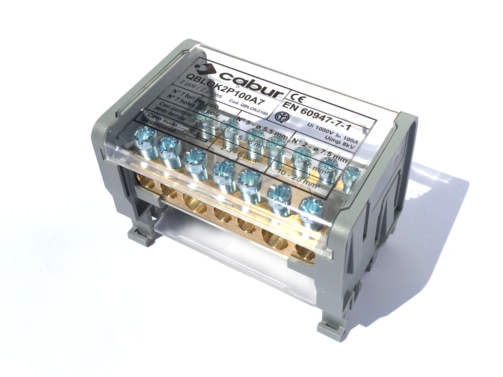

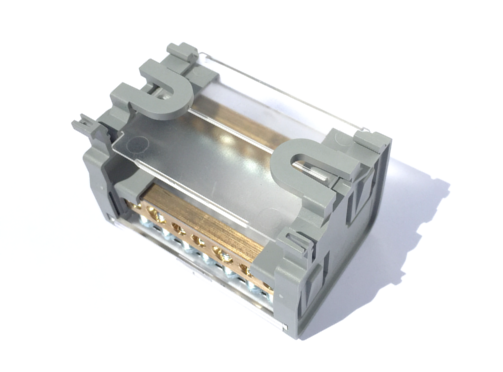

ASI QBLOK2100 is a power distribution module with two bars, seven connection points with transparent cover. The staggered leads are fully insulated and simplify the process of connecting wires.

There are two terminals which accept 16 AWG and five terminals which accept 4 AWG wire gauge. This busbar module is rated 100 Amp at 1000 Volt. It mounts on standard DIN rail or panel mount with screws. The power module is used primarily inside electrical panels for the expansion of phase or neutral extension. For labeling, use NU0851-2 blank strip markers (sold separately). QBLOK2100 is sold in packages of 4.

QBLOK2100 Product Features View DATA SHEET Here  DIN Rail Mount 1000Vdc for PV Applications QBLOK2100 Specifications  Current Rating (A):  100 A   DIN Rail Block Type:  Multiple Busbar Modules   Number of Bars:  2   Voltage (V):  1000 Vdc   Wire Connection Type:  Screw Clamp   Wire Size (AWG):  10 AWG x 2, 4 AWG x 5
