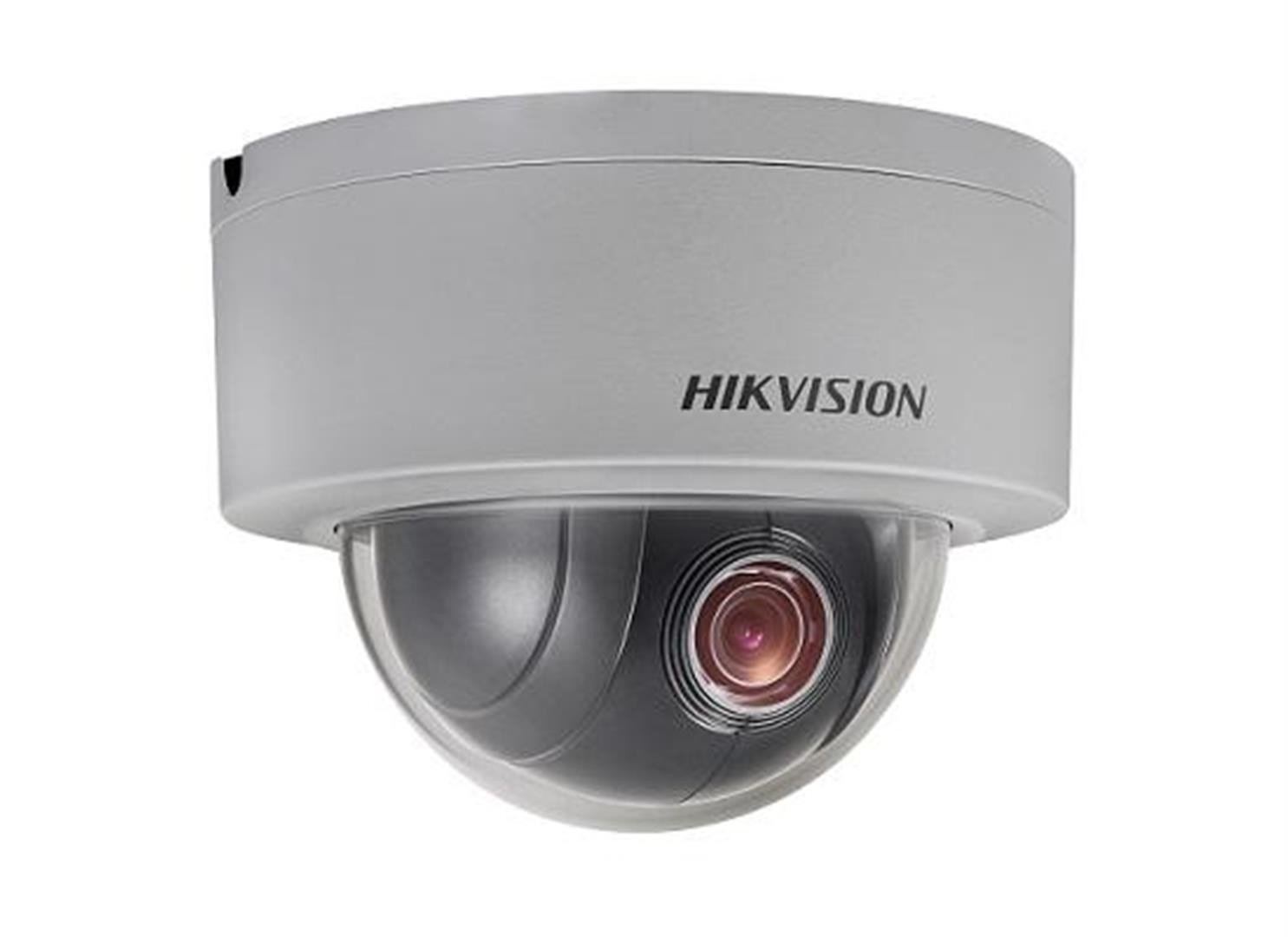

HikVision DS-2DE3204W-DE

SKU: 9080010102100 Categories: ,

220.51

HikVision – DS-2DE3204W-DE – • 1/2.8”Progressive Scan CMOS • 1920 x 1080 • 4X Optical Zoom • DWDR • Support IP66/IK10 • Support PoE(802.3af) • Support RS485 • Support plug & play

1 in stock

Description

Camera
Image Sensor:   1/2.8″ Progressive Scan CMOS
Effective Pixels:   1920(H)x1080(V)
Minimum Illumination:   Color: 0.05 Lux @(F1.5, AGC ON)
B/W:0.01 Lux @(F1.5, AGC ON)
White Balance:   Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
HLC:   Support
WDR:   DWDR
Shutter Time:   1 to 1/30,000 s
Day& Night:   ICR
Digital Zoom:   16X
Privacy Mask:   8 programmable privacy masks
Auto Focus:   Auto / Semi-automatic / Manual

Lens
Focal Length:   2.8 mm to 12 mm, 4 × optical zoom
Zoom Speed:   Approx. 2 s (optical lens, wide-tele)
Field of View:   Horizontal field of view: 100.5° to 32.6° (wide-tele)
Aperture Range:   F1.5 to F2.7



Pan & Tilt
Pan Range:   Pan: 0~350°
Pan Speed:   Pan Manual Speed: 0.1°~60°/s
Tilt Range:   Tilt: 0°~90°
Tilt Speed:   Tilt Manual Speed: 0.1°~50°/s
Number of Preset:   300
Patrol:   8 patrols, up to 32 presets for each patrol
Power-off Memory:   Support
PTZ Position Display:   ON/OFF



Alarm
Alarm Input:   1
Alarm Output:   1
Alarm Linkage:   Alarm actions, such as Preset, Trigger Recording, Alarm Output, Notify Surveillance Center, Upload to FTP, Send Email



Input & Output
Audio Input:   1 Mic in/Line in interface
Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output:   1 Audio output interface
Line level, impedance: 600Ω



Network
Max.Image Resolution:   1920×1080
Main Stream:   50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ;
60Hz:30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720)
Sub Stream:   50Hz: 25fps (704 × 576, 640 × 480, 320 × 288) ; 60Hz: 30fps (704 × 480, 640 × 480, 320 × 240)
Third Stream:   50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 320 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 320 × 240)
Video Compression:   H.265+/H.265/H.264+/H.264/MJPEG
ROI encoding:   Support 4 areas with adjustable levels
Audio Compression:   G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols:   IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View:   Up to 20 channels
Three-Stream:   Support
Storage:   Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host:   Up to 32 users, 3 levels: Administrator, Operator and User
Security Measures:   User authentication (ID and PW),
Host authentication (MAC address)
IP address filtering



General
Power Supply:   12V DC & PoE((802.3af, class3)
Power Consumption:   Max. 8W
Working Temperature/Humidity:   -30°C ~ 65°C (-22°F ~ 149°F)
Protection Level:   IP66, IK10 TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimensions:   Φ 140.7 mm × 107.2 mm (Φ 5.5″ × 4.2″)
Weight (approx.):   Approx. 0.95 kg (2.1 lb.)



Additional information

Weight 0.7000 kg
