JRC-29DD Duplex Precision (single pack)

Sku:1060042029010

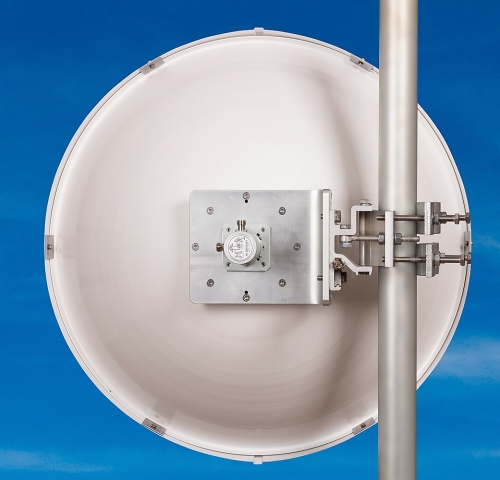

Jirous - JRC-29 DuplEX Precision - dual-polarized antenna, horizontal and vertical polarization with massive holder developed for microwave links.
335,00 €

Availability: Out of stock

  • Buy 5 for 330,00 € each and save 2%
  • Buy 10 for 325,00 € each and save 3%
  • Buy 20 for 320,00 € each and save 5%

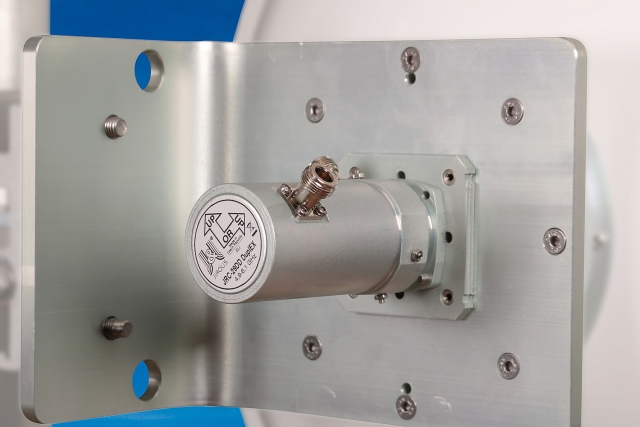

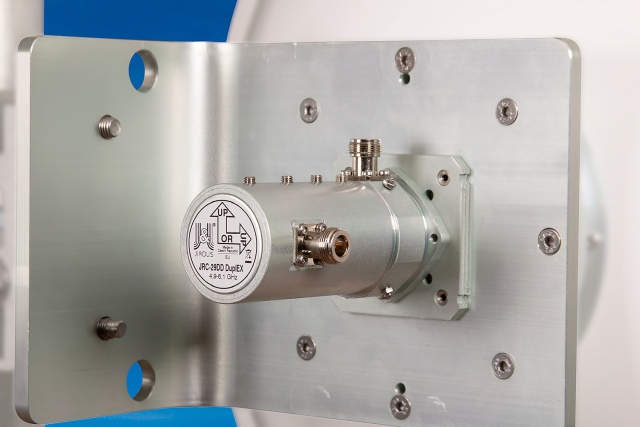

Antenna JRC-29 DuplEX Precision is based on proven and popular JRC-29 DuplEX equipped with massive bracket JDMW-900 developed for microwave links.

Variations:
  • JRC-29 DuplEX Precision
  • JRC-29 DuplEX-SMA Precision
Specification:
  • dual-polarized antenna, horizontal and vertical polarization
  • the highest isolation! typical 53 dB
  • extra high front to back ratio
  • metallic collar assures increased isolation between antenna on mast = lower interference between links
  • direction links for long and medium distance, also short in difficult conditions
  • easy to assembly: first only the holder and then the antenna only by 2 screws
  • fine setting elevation (of gradient) and azimuth ± 20°
  • right and left assembling
  • extrem wind stability
  • VSWR and isolation are measured during the manufacture of every piece
  • outdoor usage
  • you can count attainable distance from section of calculation
  • radom (plastic parabola cover) for each antenna free!
Technical parameters
Frequency range 5,45 - 5,9 GHz
Gain 28,6 ±0,6dBi
VSWR ≤ 1,5
Isolation between connectors 53dB (≥45dB)
Front to back ratio ≥ 43 dB
Beamwidth-3 dB 5,8°
Connector N - Female - JRC-29DuplEX
R-SMA JRC-29DuplEX-SMA
Polarization linear, horizontal and vertical or 45°
Parabola ø 65 cm
aluminium alloy with baking colour
Cover UV steady plastic ABS
Instalation for mast ø 40 - 120 mm

We recommend mounting on the mast with minimal ø 50 mm in the areas with the expected occurrence of the strong winds.

The radiator is internally treated by high frequency technology "Hydrophobic coating" which increases resistance against humidity.

Facilities for application:

  • duplex direction link

  • 2 independent links
