LDF-5nD

SKU: 1010190088020 Categories: , , , , ,

28.78

MikroTik – RBLDF-5nD – LDF 5 – Dual chain 5GHz system for long distance links with satellite offset dish antennas

9 in stock

Description

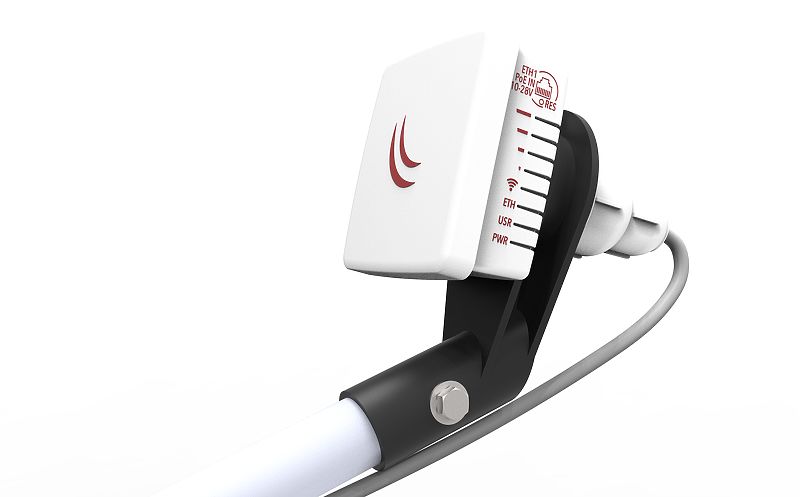

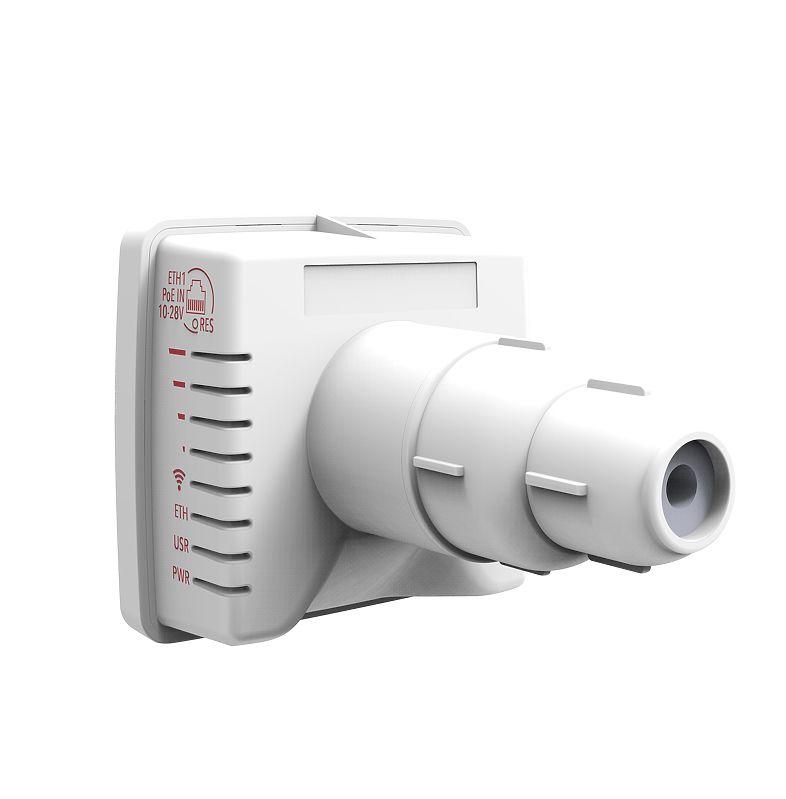

The LDF (Lite Dish Feed) is an outdoor wireless system with a built in antenna, meant to be installed on satellite offset dish antennas. The dish will act as a reflector, amplifying the signal.

This means you can use any available satellite TV dish with an offset mount to quickly deploy powerful long range wireless links. The offset mount is universal at 40mm diameter, and the LDF can easily be placed inside it. Since the LDF itself is a tiny little package, it makes shipping and deployment simple and low cost.

Using a dish of up to 100cm in diameter, it is possible to obtain antenna amplification of up to 33dBi. The device comes preinstalled with RouterOS and is ready to use.



– LDF 5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).



Specifications

Details
Product code RBLDF-5nD
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 84x84x115mm
License level 3
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 70°C
Suggested price $39.00

Powering

Details
PoE in Passive PoE
PoE in input Voltage 10-30 V
Number of DC inputs 1 (PoE-IN)
Max power consumption 6 W

Wireless

Details
Wireless 5 GHz number of chains 2
Wireless 5 GHz Max data rate 300 Mbit/s
Wireless 5 GHz standards 802.11a/n
Antenna gain dBi for 5 GHz 9
Wireless 5 GHz chip model AR9344

Ethernet

Details
10/100 Ethernet ports 1

Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 25 -96
54MBit/s 20 -80
MCS0 25 -96
MCS7 19 -75

Additional information

Weight 0.6000 kg
Brand

Mikrotik

Features (Beta)

Ethernet ports , Poe in , Wireless

Frequency

5 Ghz

Applications

Outdoor
