cAP ac - RBcAPGi-5acD2nD

Sku:1010190100410

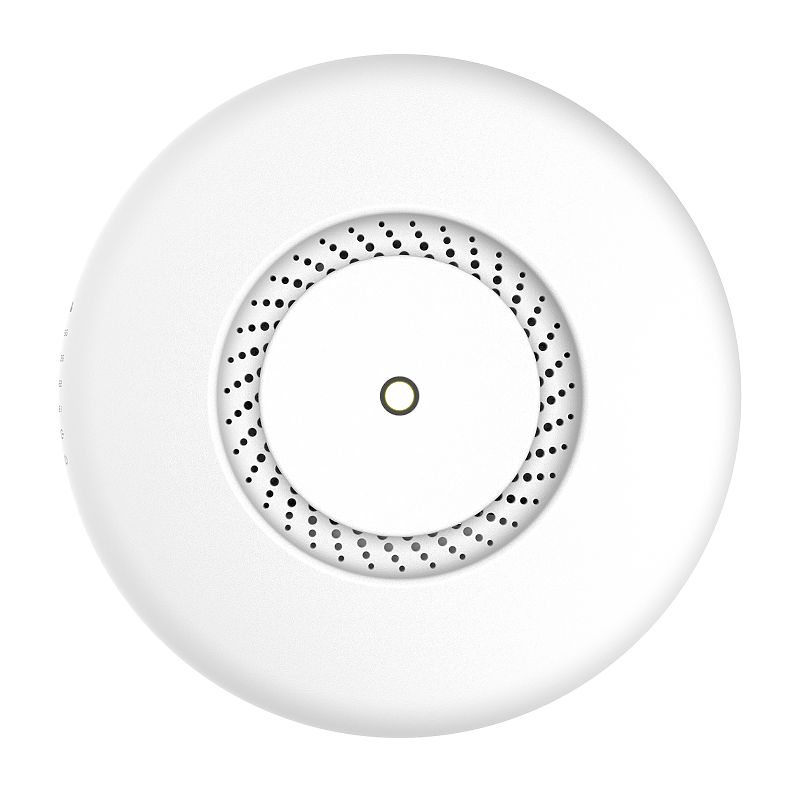

MikroTik - cAP ac - Dual-band 2.4 / 5GHz wireless access point for mounting on a ceiling or wall with two Gigabit Ethernet ports (one with PoE output), 802.11ac support and IPsec hardware encryption support

46,57 €

Availability: In stock

  • Buy 5 for 46,37 € each and save 1%
  • Buy 10 for 45,98 € each and save 2%
  • Buy 20 for 45,78 € each and save 2%
  • Buy 50 for 45,59 € each and save 3%

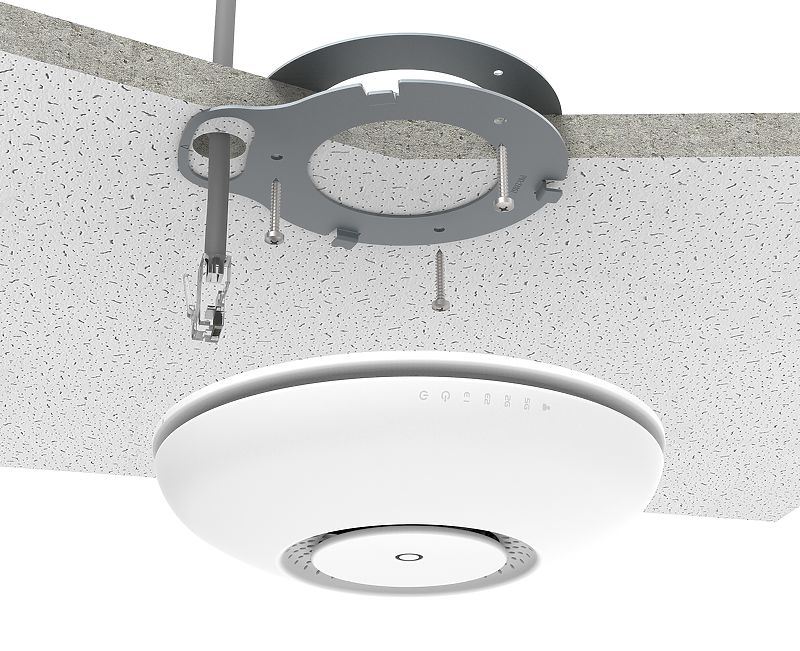

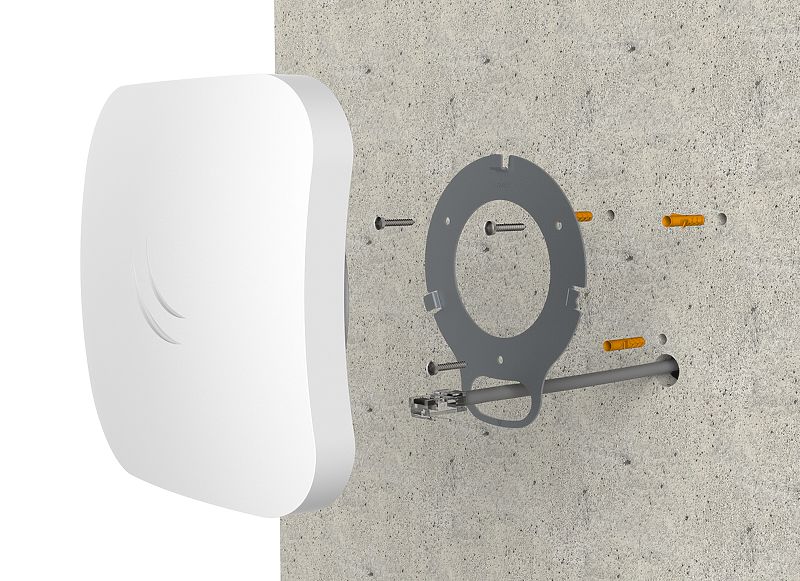

The cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual band wireless radio supports dual chain 2 GHz 802.11b/g/n and 5 GHz in a/n/ас standards, and will provide coverage in 360 degrees around it.

Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output on the second port. Device supports IPsec hardware acceleration too.



- cAP ac (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).



Specifications

Details
Product code RBcAPGi-5acD2nD
Architecture ARM 32bit
CPU IPQ-4018
CPU core count 4
CPU nominal frequency 716 MHz
Dimensions Round case: ⌀ 136 mm, height: 30 mm; Square case: 145 mm x 145 mm x 30 mm
License level 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 50°C
Suggested price $69.00


Powering

Details
PoE in 802.3af/at
PoE out Passive PoE up to 57V
PoE in input Voltage 17-57 V
Number of DC inputs 1 (PoE-IN)
Max out per port output (input > 30 V) 400 mA
Max out per port output (input < 30 V) 500 mA
Max total out (A) 500 mA
Max power consumption 24 W
Max power consumption without attachments 13 W


Wireless

Details
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz chip model IPQ-4018
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 2.5
Wireless 5 GHz chip model IPQ-4018


Ethernet

Details
10/100/1000 Ethernet ports 2


Wireless specifications

2.4 GHzTransmit (dBm)Receive Sensitivity
1MBit/s 26 -100
11MBit/s 26 -94
6MBit/s 26 -96
54MBit/s 23 -78
MCS0 26 -96
MCS7 22 -73

5 GHzTransmit (dBm)Receive Sensitivity
6MBit/s 26 -96
54MBit/s 21 -80
MCS0 26 -96
MCS7 20 -75
MCS9 18 -70
