CCR 1016-12S-1S+

Sku:1010190004009

MIKROTIK Cloud Core Router CCR-1016-12S-1S+
582,46 €

Availability: Out of stock

  • Buy 3 for 578,70 € each and save 1%
  • Buy 6 for 574,93 € each and save 2%
  • Buy 10 for 571,16 € each and save 2%
  • Buy 20 for 567,40 € each and save 3%

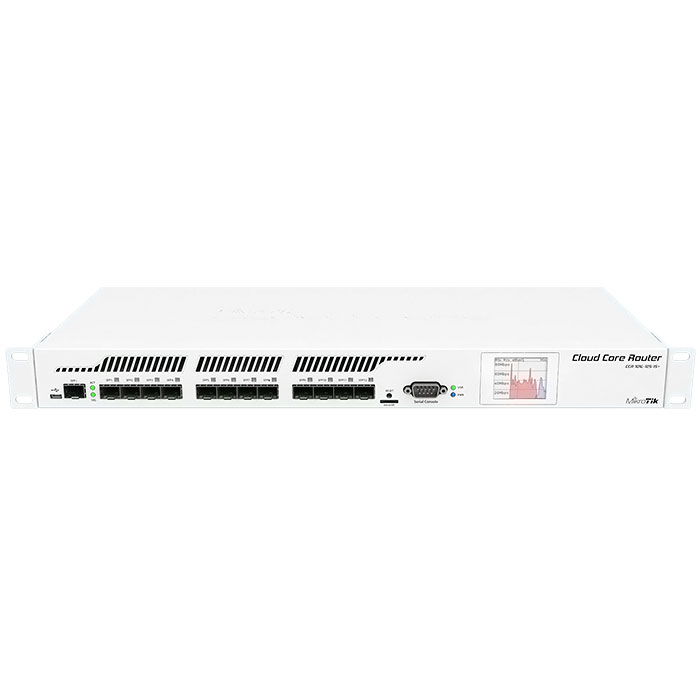

Cloud Core Router CCR1016-12S-1S+

CCR1016 is an industrial grade router with a cutting edge 16 core Tilera CPU. If you need many millions of packets per second - Cloud Core Router is your best choice.
This model has twelve SFP ports and one SFP+ port for 10G connectivity. It is available in a 1U rackmount case and also has a serial console port, a touchscreen LCD and a USB port.

The CCR1016-12S-1S+ comes with redundant power supplies and one RJ45 SFP 10/100/1000M coper module.

• 12x SFP ports for 1 Gigabit connectivity
• 1x SFP+ port for 10 Gigabit connectivity
• 16 core Tilera CPU, 1.2GHz clock per core
• 12 Mbytes total on-chip cache
• State of the art TILE GX architecture
• Ports directly connected to CPU
• 1U rackmount case
• Color touchscreen LCD display
• two power supplies for redundancy



Product specifications

Details
Product code CCR1016-12S-1S+
CPU nominal frequency 1.2 GHz
SFP DDMI Yes
CPU core count 16
Architecture TILE
Size of RAM 2 GB
Number of USB ports 1
Power Jack 2
Supported input voltage 24 V - 24 V
Voltage Monitor Yes
CPU temperature monitor Yes
Operating System RouterOS v6
Tested ambient temperature        -20C .. +60C
License level 6
Current Monitor Yes
CPU TLR4-01680CG-12CE-A3a
Max Power consumption 44W
SFP ports 12
SFP+ ports 1
USB slot type microUSB type AB
Serial port RS232
Storage type NAND
Storage size 128 MB
Suggested price $745.00



Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Additional Information

- Summer Promo - N/A
Brand Mikrotik
Frequency No
Features (Beta) Ethernet ports, Gigabit
Applications Indoor, Rack Mount
