NetMetal 5 triple – RB922UAGS-5HPacT-NM

125.60

MikroTik – RouterBoard – RB 922UAGS-5HPacT-NM – NetMetal 5 triple Triple chain 5GHz integrated 802.11ac AP/Backbone/CPE with an additional miniPCI-e slot, Gigabit Ethernet, waterproof metal enclosure

10 in stock

Description

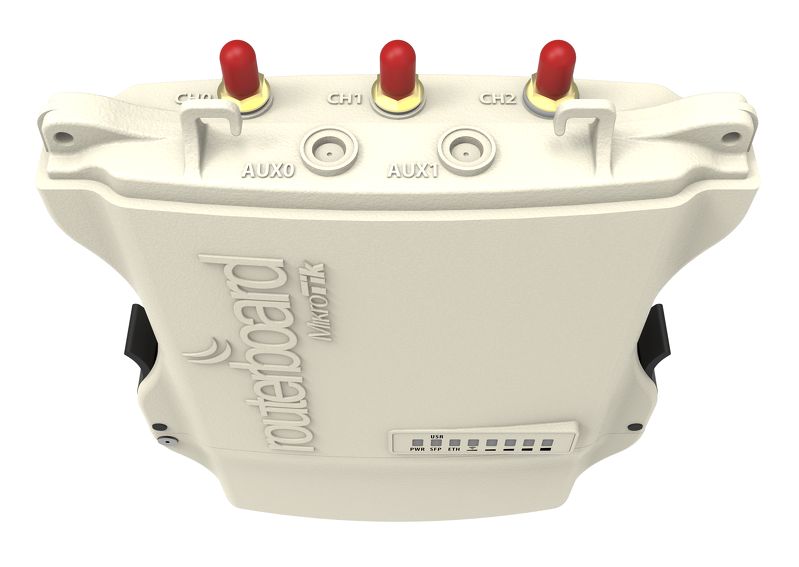

This NetMetal version is equipped with a miniPCI-express slot, a SIM slot for 3G/4G device or additional wireless card, a high power 3×3 triple chain 802.11ac wireless and three RP-SMA connectors for external antennas

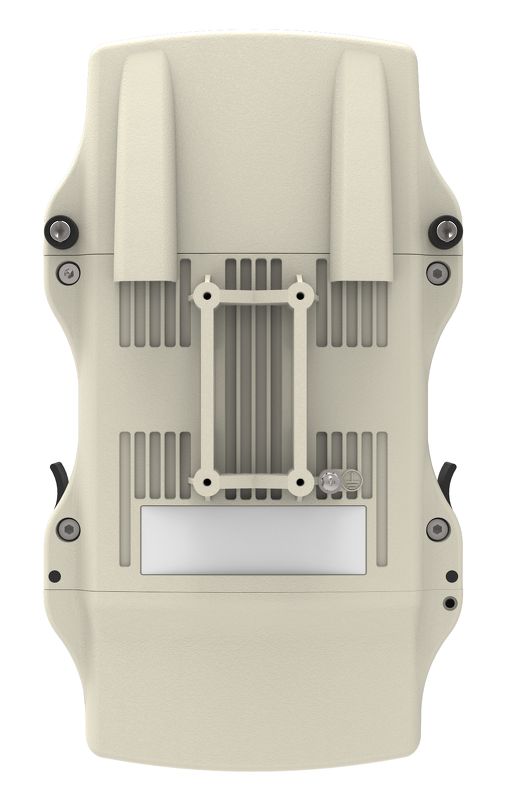

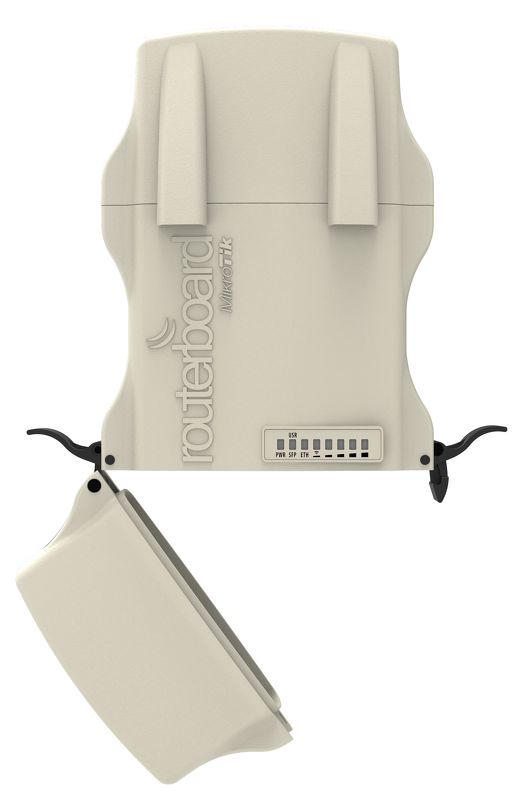

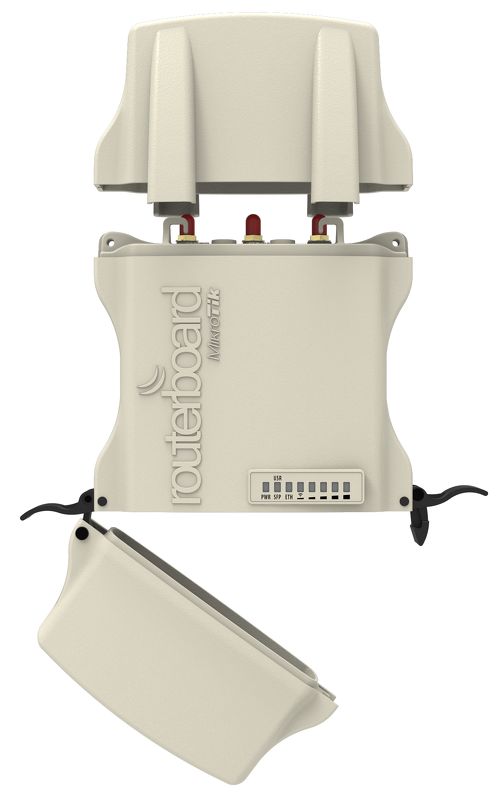

The NetMetal is a 802.11a/n/ac wireless device in a waterproof metal enclosure (IP66). Its rugged design is made to withstand the toughest conditions, but at the same time is easy to use and can be opened and closed with one hand. The solid aluminum enclosure also works as a reliable heat-sink for its high output power radio.

The NetMetal is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license.



– RB922UAGS-5HPacT-NM (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

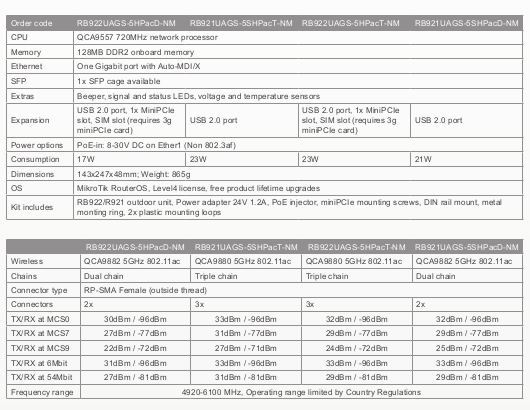

Specifications

Details
Product code RB922UAGS-5HPacT-NM
Architecture MIPSBE
CPU QCA9557
CPU core count 1
CPU nominal frequency 720 MHz
Dimensions 143x247x48mm (PCB)
License level 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40°C to 70°C
Suggested price $159.00


Powering

Details
PoE in Passive PoE
PoE in input Voltage 8-30 V
Number of DC inputs 1 (PoE-IN)
Max power consumption 23 W


Wireless

Details
Wireless 5 GHz number of chains 3


Ethernet

Details
10/100/1000 Ethernet ports 1


Fiber

Details
SFP DDMI yes
SFP ports 1


Peripherals

Details
Number of SIM slots 1 Modem (Mini SIM)
MiniPCI-e slots 1
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1


Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes


Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 33 -96
54MBit/s 29 -81
MCS0 32 -96
MCS7 29 -77
MCS9 24 -72

Additional information

Weight 1.3000 kg
Brand

Mikrotik

Frequency

5 Ghz
