Description

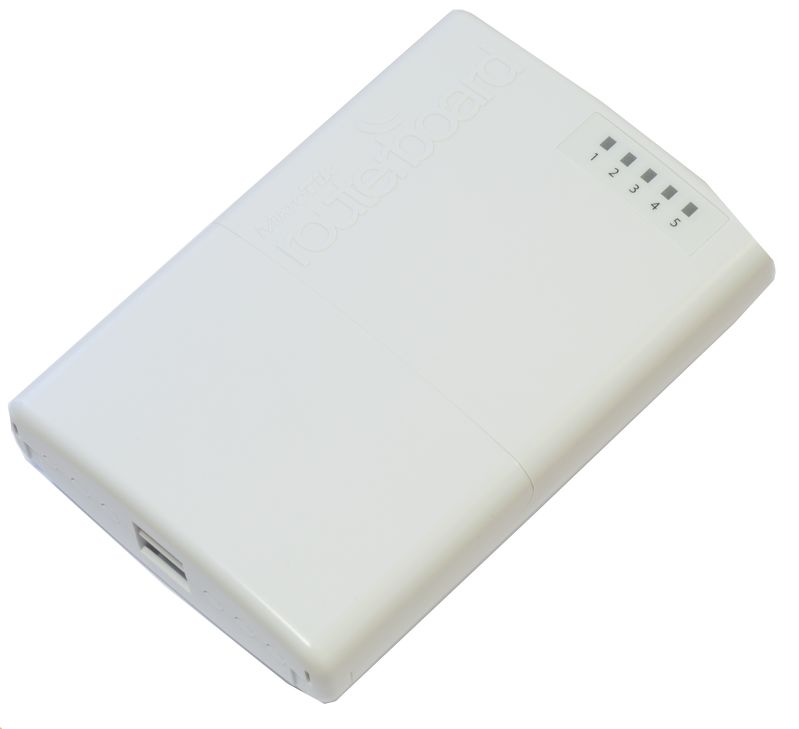

MikroTik RB/750P – PBr2 PowerBOX 5-Port Weatherproof Router
The PowerBOX is an outdoor five Ethernet port router with PoE output on four ports.
You can use this device to supply power to four PoE capable devices such as our SXT or others. Since the device has a waterproof outdoor case, you can mount
it on a tower, or in other outdoor locations.
The unit has five shielded Ethernet ports, four of which can power other PoE capable devices with the same voltage as applied to the unit (max current out is 1A
per port, max total out is 2A).
Less power adapters and cables to worry about!
Product specifications
| Details | |
|---|---|
| Product code | RB750P-PBr2 |
| CPU nominal frequency | 650 MHz |
| CPU core count | 1 |
| Size of RAM | 64 MB |
| 10/100 Ethernet ports | 5 |
| 10/100/1000 Ethernet ports | None |
| MiniPCI slots | 0 |
| MiniPCI-e slots | 0 |
| Number of USB ports | 0 |
| Power Jack | 1 |
| PoE in | Yes |
| PoE out | Yes |
| Supported input voltage | 6 V – 30 V |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| CPU temperature monitor | No |
| Dimensions | 125x178x48mm |
| Operating System | RouterOS |
| Operating temperature range | -35C .. +70C |
| License level | 4 |
| Current Monitor | Yes |
| CPU | QCA9Mikrotik Technical Support1-BL3A-R |
| Max Power consumption | 2W |
| SFP ports | 0 |
| SFP+ ports | 0 |
| Serial port | None |
