wAPG-60G AP

SKU: 1010190100345 Categories: , ,

91.35

MikroTik – wAP 60G AP comes with the L4 license (CPE, Point-to-Point or AP support- you can connect up to eight 60GHz CPE’s to one AP).

10 in stock

Description

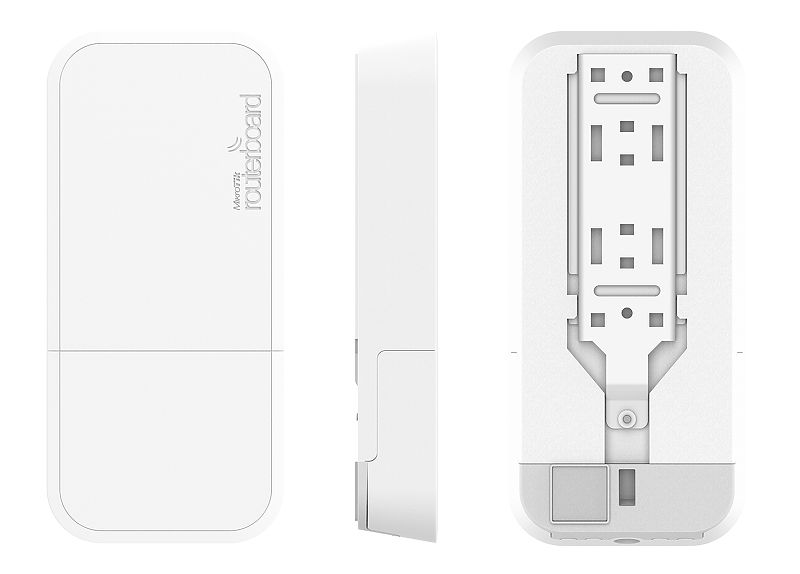

Mikrotik wAP 60G

The wAP 60G and wAP 60G AP are weatherproof integrated 60GHz wireless units, that can be used indoors or outdoors in different scenarios – Base Station (only wAP 60G AP), Point-to-Point and CPE (wAP 60G AP and wAP 60G).

The box includes a wall mounting kit, straps for pole mounting, power supply, PoE injector and also table stand for using the device indoors. Penetrates some windows depending on material.



Specifications

Product code wAP 60G AP
CPU IPQ-4019 716 MHz
CPU core count 4
Size of RAM 256 MB
10/100/1000 Ethernet ports 1
Wireless Built-in 60 GHz 802.11ad
Antenna beam width Phase array 60° beamforming
PoE in Yes
Supported input voltage 12 V – 57 V (802.3af/at)
Dimensions 185 x 85 x 30 mm
Operating temperature -40 C .. +70 C
License level 4
Operating System RouterOS
Max Power consumption 5 W



The wAP 60G has an extremely capable CPU, making it possible for wire speed throughput in nearly all packet sizes.

The left image shows a sustained transmit of nearly 1 Gbps, the graph on the right side shows percent of wire speed achieved, based on different ethernet frame sizes. As you can see, it is wire speed in nearly all categories.



Additional information

Weight 1.0000 kg
Brand

Mikrotik

Features (Beta)
Frequency

60 Ghz

Applications
