Mikrotik RB 750-r2 – hEX lite


hEX lite
5x Ethernet, Small plastic case, 850MHz CPU, 64MB RAM, Most affordable MPLS router, RouterOS L4

2 in stock


Mikrotik Router RB750-r2 – 5 Ethernet 32MB 400 MHz L4 (desktop) hEX lite

hEX lite

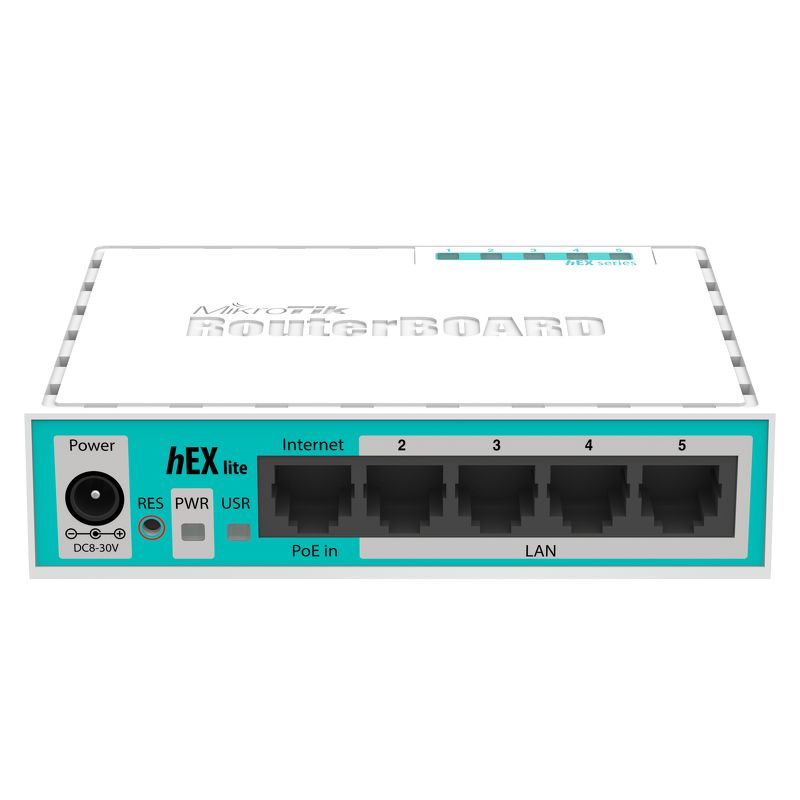

The hEX lite is a small five port ethernet router in a nice plastic case.

Not only this is an attractive looking tiny SOHO unit, its price is lower than the RouterOS license alone

– there simply is no choice when it comes to managing your wired home network, the hEX lite has it all.

hEX lite

It’s probably the most affordable MPLS capable router on the market! No more compromise between price and features – hEX lite has both. With its compact design and clean looks, it will fit perfectly into any SOHO environment.

Product specifications

Product code RB750r2
CPU nominal frequency 850 MHz
CPU core count 1
Size of RAM 64 MB
Architecture MIPS-BE
10/100 Ethernet ports 5
10/100/1000 Ethernet ports None
MiniPCI slots 0
MiniPCI-e slots 0
Number of USB ports 0
Memory Cards 0
Power Jack 1
802.3af support No
PoE in Yes
PoE out No
Supported input voltage 6 V – 30 V
Voltage Monitor No
CPU temperature monitor No
PCB temperature monitor No
Dimensions 113x89x28mm. Weight without packaging and cables: 129g
Operating System RouterOS
Operating temperature range -40℃ to +55℃
Antenna gain DBI No
Current Monitor No
CPU QCA9Mikrotik Technical Support1-BL3A-R
Max Power consumption 2W
SFP ports 0
SFP+ ports 0
Number of chains 0
Serial port None
Suggested price $39.95


More info

  1. RouterBoot: qca9Mikrotik Technical Support1L_3.19.fwf
  2. Brochure : hEX_lite-150520120706.pdf
  3. Design Files DXF-PDF : RB750dim.rar
  4. Quick Guide : rb750-qg.pdf
  5. User Guide : rb750gl-ug.pdf
  6. RouterOS software manual
  7. Declaration of conformity (CE)

Additional information

Weight 0.3000 kg
