Description
-EOL END of Live
Sostituita dalla RB/2011UiAS-2HnD

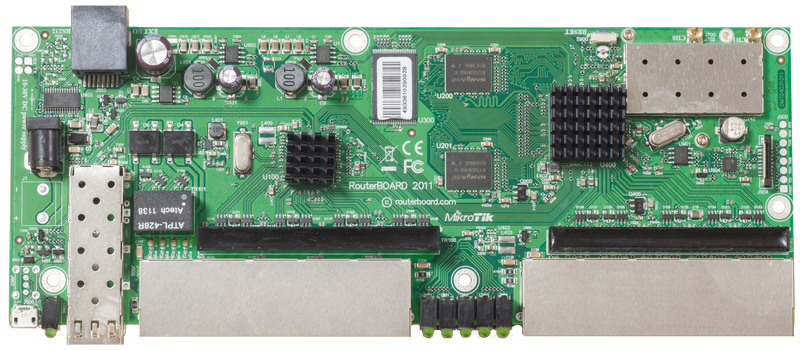

MikroTik RouterBoard 2011UAS-2HnD
RouterBOARD 2011UAS-2HnD has most features and interfaces from all our Wireless routers. It’s powered by the new Atheros 600MHz 74K MIPS network processor, has 128MB RAM, five Gigabit LAN ports, five Fast Ethernet LAN ports and SFP cage (SFP module not included!).
Also, it features powerful (up to 1W!) dual chain 2.4Ghz 802.11bgn wireless, RJ45 serial port, microUSB port and RouterOS L5 license. Two models are available – RB2011UAS-2HnD (board only) and RB2011UAS-2HnD-IN (comes with desktop enclosure, two indoor antennas for wireless, power supply and touchscreen LCD panel).
The RB2011UAS-2HnD has following features:
– high power 2.4Ghz 2×2 MIMO 802.11bgn wireless with two MMCX connectors
– Gigabit SFP cage and five Gigabit Ethernet ports that can be switched together providing affordable wire-speed Fiber-to-Copper converter
– additional five Fast Ethernet ports
– RJ45 serial port
– micro-USB port
– 128MB RAM
– RouterOS L5 license
– board can be powered by power jack or PoE
Technical Details RouterBoard 2011UAS-2HnD:
CPU: Atheros AR9344 600MHz
Memory: 128MB DDR2 SDRAM onboard memory
Ethernet: Five 10/100 Mbit Fast Ethernet ports with Auto-MDI/X
Five 10/100/1000 Mbit Gigabit Ethernet ports with Auto-MDI/X
Wireless: 2HnD: Built in 2GHz dual chain 802.11b/g/n wireless device
2HnD-IN: Also includes two 4dBi swivel antennas
Expansion: One fixed Gigabit Ethernet SFP cage (Mini-GBIC; SFP module not included)
Extras: Reset button, Reset jumper, RJ45 serial port, LCD panel, Temperature and Voltage
sensors, powered micro-B USB connector
Power options: Jack 8-28V DC; PoE: 8-28V DC on Ether1 (Non 802.3af). 15W max consumption
Dimensions: 214 mm x 86 mm, Weight: 146g
Operating System: MikroTik RouterOS, L5 license
Package includes RB2011, power supply, (depends on model: enclosure)
