Metal 52 ac – RBMetalG-52SHPacn

92.88

MikroTik – RouterBoard – RB MetalG-52SHPacn- 2.4/5GHz software selectable AP/Backbone/CPE with AC support, high TX power, N-male connector, Omni antenna included

10 in stock

Description

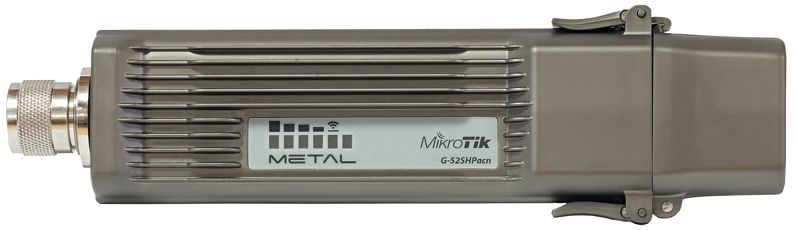

MikroTik RouterBoard RB/METALG – 52SHPacn METAL 52 ac



Metal 52 ac



Now with 802.11ac support, a Gigabit Ethernet port and a selectable wireless band (2.4GHz or 5GHz, up 80 MHz wide channel). The new Gigabit port will help you utilize the full benefit of 802.11ac high speed wireless.

The Metal 52 ac supports 2.4GHz, 5GHz and all the legacy wireless modes as well (802.11 b/g/n for 2.4GHz and 802.11 ac/n/a for 5GHz).

We have two versions available.

– RBMetalG-52SHPacn-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

– RBMetalG-52SHPacn (International) supports 2412-2484MHz and 5150MHz-5875MHz range.



Product specifications



Details
Product code RBMetalG-52SHPacn
CPU nominal frequency 720 MHz
CPU core count 1
Size of RAM 64 MB
10/100/1000 Ethernet ports 1
Wireless standards 802.11b/g/n
Wireless chip model QCA-9889
Supported input voltage 10 V – 30 V
PoE in Yes
Voltage Monitor Yes
PCB temperature monitor Yes
Dimensions 215x60x38mm
Operating System RouterOS
Operating temperature range           -40°C .. +70°C tested
License level 4
CPU QCA9556
Max Power consumption 11W
Number of chains 1
Storage type FLASH
Storage size 16 MB
Suggested price $119

Wireless specifications

                       5 GHz
  TX RX
6MBit/s 31 -93
54MBit/s 27 -78
MCS0 30 -93
MCS7 26 -74
MCS9 22 -69
2.4 GHz
  TX RX
1MBit/s 31 -97
11MBit/s 31 -91
6MBit/s 31 -93
54MBit/s 28 -77
MCS0 31 -93
MCS7 27 -72

wireless parameters may be limited in software, depending on your local regulatory limitations



Included parts



More info

Additional information

Weight 0.8000 kg
Brand

Mikrotik

Frequency
Applications

Indoor
