Description

OmniTIK 5 PoE

OmniTIK is a weatherproof outdoor AP with dual-polarized omni antennas – the perfect companion for our SXT, or for any other 5GHz 802.11a/n standard device.

Weatherproof, durable and ready to use. It has five 10/100 Ethernet ports, PoE support and a built-in 400mW 802.11a/n wireless radio. It supports Nv2 TDMA technology with up to 200Mbit aggregate throughput.

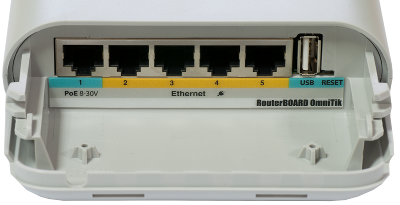

LED signal indicators on it’s back are fully customisable, show Ethernet activity or wireless signal – or any other information from RouterOS. The USB port gives the ability to connect a 3G modem or a storage drive.

The OmniTIK UPA also features power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices (like SXT-5HPnD) with the same voltage as applied to the unit. Less power adapters to worry about!

Box contains: OmniTik UPA-5HnD, mounting loops, PoE injector, 24v 2.5A power adapter

Video Unboxing OmniTik UPA-5HnD

Product specifications

Details
Product code	RBOmniTikUPA-5HnD
CPU nominal frequency	600 MHz
CPU core count	1
Size of RAM	128 MB
Architecture	MIPS-BE
10/100 Ethernet ports	5
Wireless chip model	AR9344
Wireless standards	802.11a/n
Number of USB ports	1
PoE in	Yes
Supported input voltage	11 V – 30 V
PoE out	Yes
Voltage Monitor	Yes
PCB temperature monitor	Yes
Dimensions	368x125x55mm
Operating System	RouterOS
Tested ambient temperature	-30 .. +70C
License level	5
Antenna gain DBI	7.5
CPU	AR9344
Max Power consumption	11W
USB slot type	USB type A
Number of chains	2
Storage type	FLASH
Storage size	16 MB
Suggested price	$99.00

Wireless specifications

5 GHz
	Transmit power (dBm)	Receive Sensitivity	Transmit power (mW)
6MBit/s	30	-96	1000
54MBit/s	27	-78	501
MCS0	30	-96	1000
MCS7	26	-75	398

wireless parameters may be limited in software, depending on your local regulatory limitations

Download OmnitikUPA-5HnD datasheet.pdf
