JRC-29DD DUPLEX (2XPACK)

Sku:1060042029009

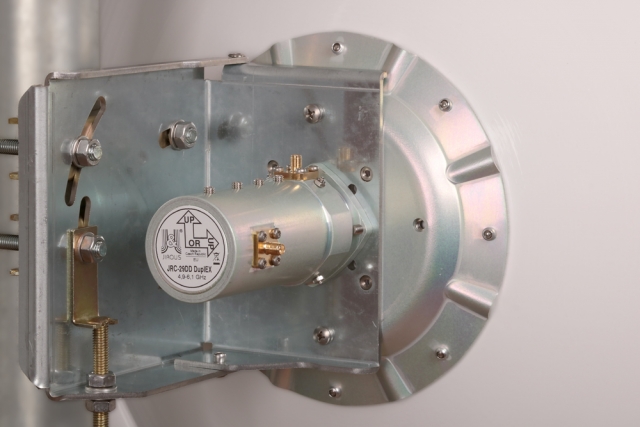

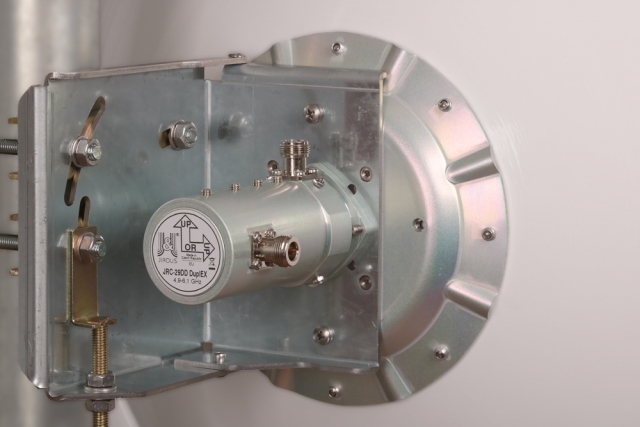

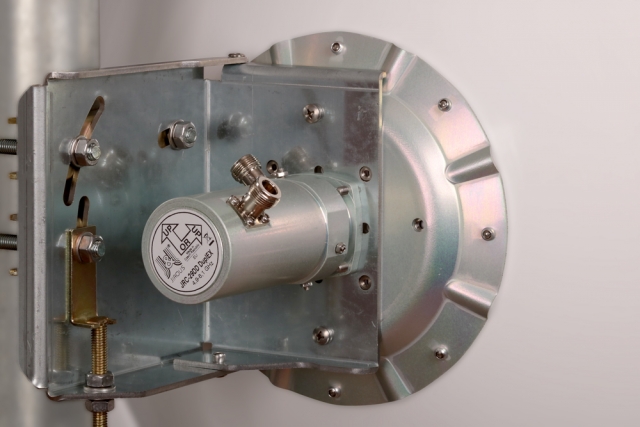

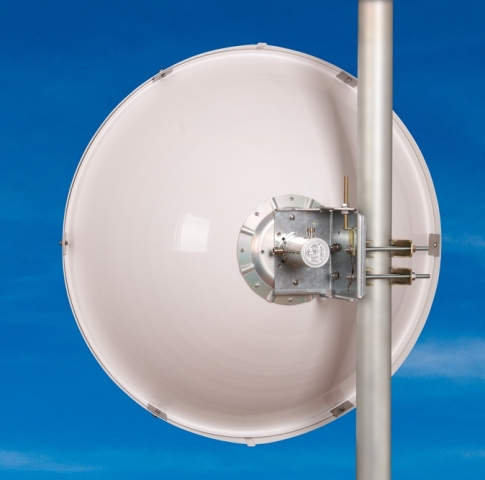

Jirous - JRC 29 DD DuplEX - (2xPACK) - 5GHz 29dBi PARABOLIC ANT. DUAL POL.
389,00 €

Availability: In stock

Usage:

dual-polarized antenna, horizontal and vertical polarization

the highest isolation! 53 dB

  • 2 Antennas price!
  • extra high front to back ratio
  • metallic collar assures increased isolation between antenna on mast = lower interference between links
  • direction links for long and medium distance, also short in difficult conditions
  • setting elevation (of gradient) and azimuth has independent adjustment
  • VSWR and isolation are measured during the manufacture of every piece
  • outdoor usage
  • radom (plastic parabola cover) for each antenna free!
  • version with N connectors



Technical parameters

Frequency range

5,45 - 5,9 GHz

Gain

28,6 0,6dBi

VSWR



Isolation between connectors

53dB ( 45dB)

Front to back ratio

>= 43 dB

Beamwith-3 dB

5,8

Connector

N - Female

Polarization

linear, horizontal and vertical

Parabola

65 cm
aluminium alloy with baking colour

Cover

UV steady plastic ABS

The radiator is internally treated by high frequency technology "Hydrophobic coating" which increases resistance against humidity.



Facilities for application:

duplex direction link

2 independent links

we prepare more aplication informations



For complete Datasheet click here: JRC-29DD DUPLEX



Packing

2 PCS IN PACK
