case1d4blku ENCLOSURE – PC ENGINES FOR apu4_2,apu4_4

16.29

PC Enginees – Enclosure for apu4b4 – 4 Lan – USB – Black

5 in stock

Description

PC Engines Home

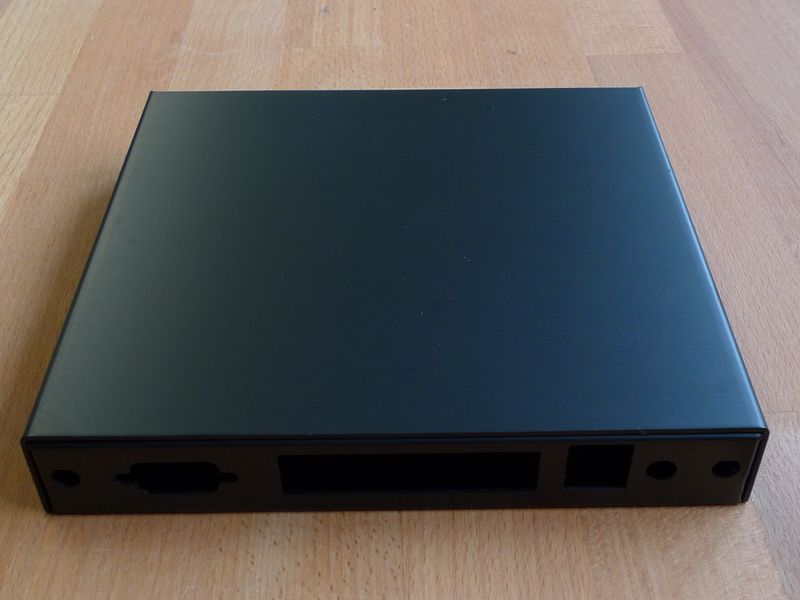

PC Engines case1d4blku ENCLOSURE 4 LAN USB black

case1d4blku Enclosure 4 LAN USB black
Status active
Part numbers 2 LAN
(alix2d2/alix2d18, alix6*, apu2c0)
case1d1u = 2 LAN, 3 SMA, USB, plain anodized
case1d1redu = 2 LAN, 3 SMA, USB, red anodized
case1d1blku = 2 LAN, 3 SMA, USB, black anodized or painted
Part numbers 3 LAN
(alix2d13, apu2c2, apu2c4, apu3c*)
case1d2u = 3 LAN, 2 SMA, USB, plain anodized
case1d2redu = 3 LAN, 2 SMA, USB, red anodized or painted
case1d2bluu = 3 LAN, 2 SMA, USB, blue anodized
case1d2blku = 3 LAN, 2 SMA, USB, black anodized or painted
case1d2rfb = 3 LAN, 2 SMA, USB, slightly blemished enclosure (slight scratches, color varies, mostly black)
case1d2redu6 = 3 LAN, 6 SMA, USB, red anodized or painted (two SMA on the back side, two each on the left and right side of the cover).
Part numbers 4 LAN
(apu4*)
case1d4blku = 4 LAN, 2 SMA, USB, black anodized or painted
Use with alix2 / alix6 series (2 LAN / 3 LAN), apu1 / apu2 / apu3 / apu4 series boards (2 to 4 LAN)
brk1d (wall mount bracket)
pigsma (SMA reverse pigtail)
pigsmaf (SMA female pigtail)
mmcsma (MMCX SMA reverse pigtail)
Spec Enclosure designed for ALIX.2* boards. Cutouts for 3 LEDs and 1 switch in front, cutouts for DB9, 2 to 4 LAN, 3 or 2 SMA connectors, DC jack in back. Enclosure made of anodized or painted aluminum. Dimensions 168 mm wide x 157 mm deep x 30 mm high. RoHS compliant.
Changes from case1c*
  • Countersunk screws for the top cover, prethreaded base.
  • More antenna holes
  • Optional wall mount bracket
  • Front is part of the top cover, i.e. no need to disassemble everything to change the CF card.
  • Please note that this enclosure is a bit wider and taller than case1c* to accomodate the added antenna holes.
Includes 4 screws to mount system board, 4 screws to close enclosure, 4 self-adhesive feet, 2 or 3 rubber plugs to close unused SMA holes.
Assembly notes Tools needed: Phillips screw driver, 5 mm or 3/16″ nut driver. Remove hex nuts from DB9 connector of ALIX board. Mount ALIX board in enclosure, then fasten all screws and hex nuts. CF card can be secured with Kapton tape to the CF socket, or a strip of elastic rubber (e.g. sealing strip for windows) on the inside of the top cover. For apu boards, also seeinstructions on heat spreader installation.
Customization Customer silk screen, custom paint colors etc. are possible for volume orders.
Manufacturer PC Engines
Origin China

Additional information

Weight 0.2500 kg
Brand

PC Engines

Features (Beta)

Ethernet ports

Applications

Indoor
