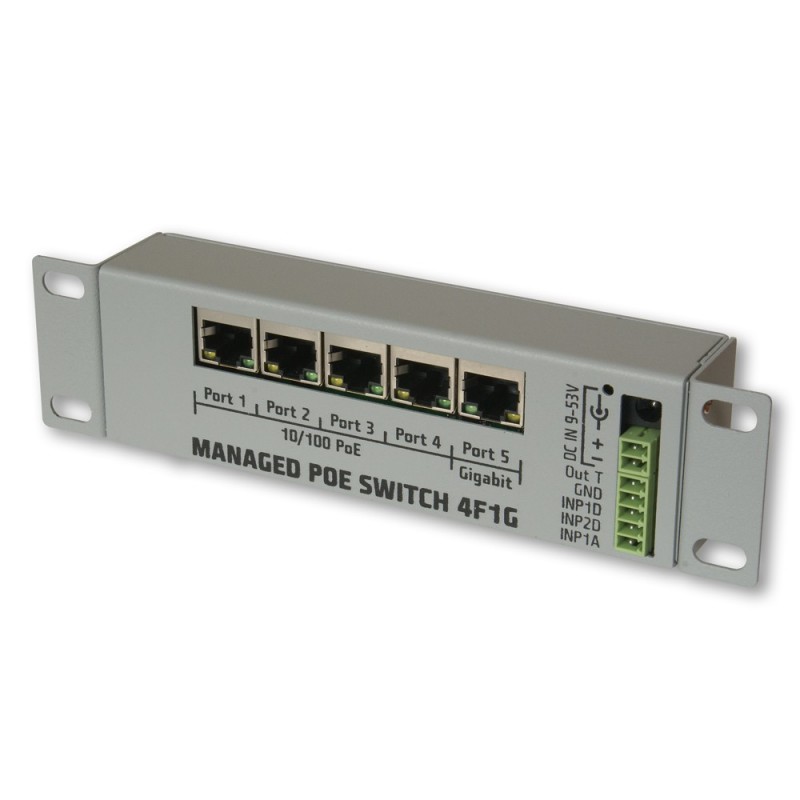

TinyControl Managed PoE Switch 5 Ports 4F1G

SKU: 1010150101100 Categories: ,


Device that combines roles of a switch with PoE and an Input/Output controller. PoE voltage is equal to the supply voltage of the switch. Maximum current per port is 2A. All functions of the device and each port are remotely monitored, including Watchdog function. In addition, the switch has 2 logic inputs for controlling the environment, output voltage and a built-in reset button.

1 in stock


Switch PoE 4F1G features

  • Control via WEB browser or SNMP v2
  • Remote upgrade via TFTP
  • Read with no need of refreshing a page
  • The ability to switch 4 passive PoE ports directly from the website
  • Watchdog IP for each port (email notifications, power reset)
  • 1 analog measuring input
  • 2 logic inputs
  • Measurement of the environment’s temperature
  • Supply voltage measurement with accuracy of up to 0.1 V
  • PoE current measurement on each port
  • Time setting according to the NTP server or manually
  • Automatic sending of SNMP TRAP with a value (VCC, Temperature, INPD, INPA)
  • Supported protocols: HTTP, SNMP, SMTP, SNMP, ICMP, DNS, DHCP
  • 4 ports of 10 / 100Mbps
  • VLAN support
  • Possible mounting on a DIN rail



  • Home automation
  • Industrial networks
  • Control devices in DIN cabinets
  • IP cameras
  • Service of radio devices



  • Supply voltage: from 9V to Mikrotik Technical SupportV
  • Maximum current per 1 PoE port: 2A (recommended is no more than 1A)
  • Maximum current per all ports: up to 6A
  • Reverse-polarity-protection
  • The maximum output current of the inverter 1A
  • Operating temperature: -20°C to 85°C
  • Dimensions: 146 (173 with a handle) x 45 x 31mm
  • Weight: 350g
