55-30-NV 5GHz SECTOR ANTENNA 30° VERTICAL WITH MOUNTING KIT MA-WB55-20 MARS

Sku:1060120300100

55-30-NV 5GHz SECTOR ANTENNA 30 DEG. VERTICAL WITH MOUNTING KIT
€166.50

Availability: In stock

  • Buy 5 for €164.42 each and save 2%
  • Buy 10 for €162.34 each and save 3%
  • Buy 20 for €160.26 each and save 4%
  • Buy 50 for €158.18 each and save 5%

55-30-NV 5GHz SECTOR ANTENNA 30° VERTICAL WITH MOUNTING KIT

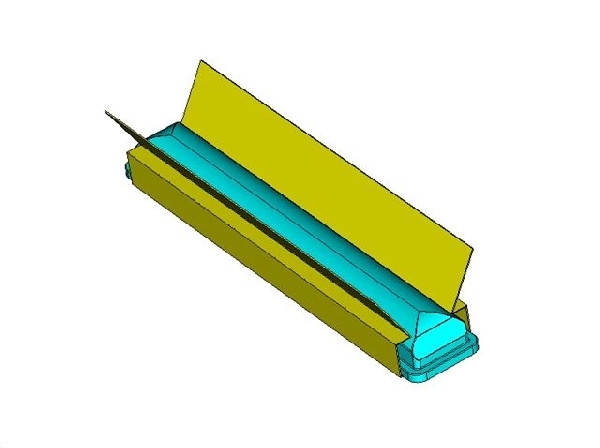

5 GHz Base Station Antenna, 30° MA-WB55-20B

MARS 30° Broadband Sector Antenna provides a cost effective solution for large scale WLL, WLAN, H-LAN, ISM, UNII, Public Safety, Municipal MESH Networks and Point-to-Multi-Point applications.

 Additional Features

- stable performance with 20 dBi of gain

- small size allowing for easy blending with any environment

- tilt mount allowing for quick and easy installation

- UV protected radome suitable for harsh environment installations

Specifications / Electrical

- Frequency range  4.9 - 6.1 GHz

- Gain,typ.  20 dBi

- VSWR, max.  1.8:1

- 3 dB Beam-Width, H-Plane, typ.  30 °

- 3 dB Beam-Width, E-Plane, typ.  8 °

- Side Lobes, min.  ETSI EN 302 085 V1.2.3 – CS1

- Polarization Linear Vertical

- Cross Polarization, min. ETSI EN 302 085 V1.2.3 – CS1

- Front to Back Ratio, min. ETSI EN 302 085 V1.2.3 – CS1

- Input power, max 50 Watt

- Input Impedance 50 Ohm

- Lightning Protection DC Grounded


Specifications / Mechanical

- Dimensions (HxWxD) 573 x 120 x 115 mm (22.6"x4.7"x4.5")

- Weight 1 kg

- Connector N-Type, Female

- Back Plane Aluminum protected through chemical passivation

- Radome UV Protected, Polycarbonate

- Mount MNT-22



Specifications / Environmemtal

- Operating Temperature Range - 40°C to + 65°C

- Vibration According to IEC 60721-3-4

- Wind Load 200 km/h (survival)

- Flammability UL94

- Water Proofing IP-67

- Humidity ETS 300 019-1-4, EN 302 085 (annex A.1.1)

- Ice and Snow 25mm radial (survival)

- Salt Fog According to IEC 68-2-11

- Service Life >10 years

- Standard Compliance

- ETSI EN 302 085 V1.2.3 – CS1



DOWNLOAD:

- DATASHEET

- INSTALLATION

- RADIATIONS PATTERNS

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Additional Information

Barcode No
Applications No
Frequency 5 Ghz
Brand Mars Antennas
