ACG-D700 CONSTANT CURRENT LED DRIVER 700mA, PWM, Soft Start

SKU: 1011070100120 Categories: , ,

12.77

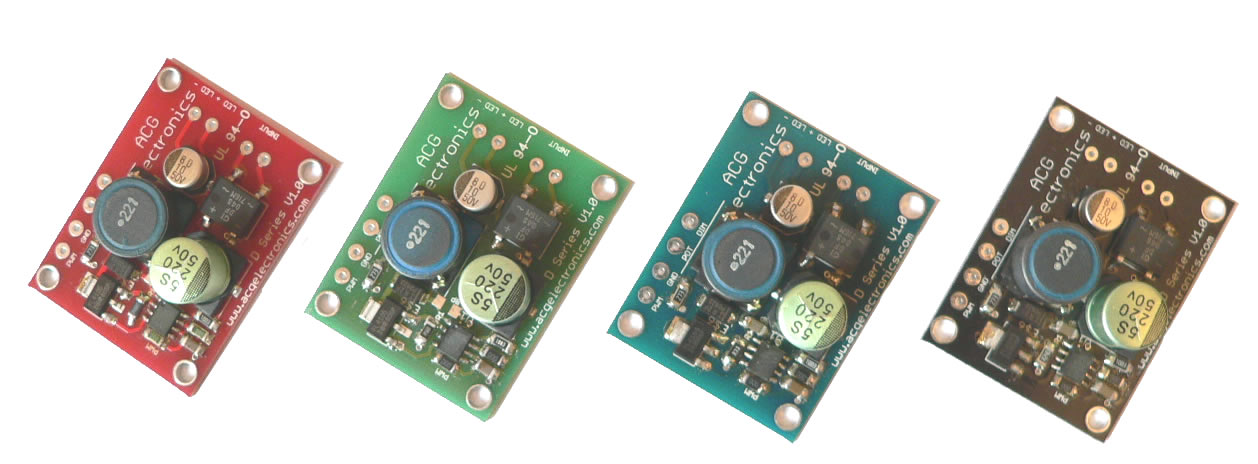

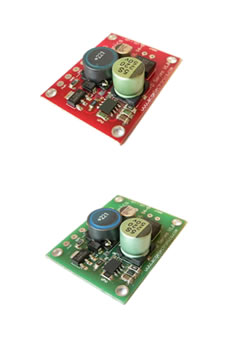

ACG-D700 Constant Current Led Driver 700mA, PWM, Soft Start

Robust and efficient constant current led driver. ACG D-Series are designed to operate 1W / 3W high power LEDs independent of the input voltage and with constant current

5 in stock

Description

!!! End Of Live !!!

Now we are producing C Series instead of D Series.

New ACG-C-Series DC-DC Circuito LED Driver


ACG-D700 Constant Current Led Driver 700mA, PWM, Soft Start

Robust and efficient constant current led driver. ACG D-Series are designed to operate 1W / 3W high power LEDs independent of the input voltage and with constant current

D-Series Applications:

General lighting Freshwater and salt water Aquarium lighting

Signage and decorative lighting

Automotive lighting

Yacht lighting

Advertising and backlighting

Solar and other low voltage applications

Specification:

Up to 91% efficiency with switch-mode power electronics

Wide input voltage range 9-40V DC, 8-30V AC

Both AC/DC operation

350/700/1000/1400mA constant current options

PWM dimming input

Dimming with 0-10V input or potentiometer

Soft-start to prevent any harm to LEDs during start up

Reverse polarity protection at the inlet to prevent any confusion between (+) and (-) (except in the ACG-D1400)

Small size 4.2cm x 3.2cm x 1.2cm

Extremely cool operation, -no additional heatsink required-

Sockets for easy assembly (optional pin strip)

Potentiometer for regulation are sold separately


D
ownload Datasheet and manual

Additional information

Weight 0.0010 kg
Brand

ACG
