Mikrotik RB LHG-5nD-LHG 5

Sku:1010190088010

Mikrotik RB/LHG-5nD-LHG 5
€53.90

Availability: In stock

  • Buy 5 for €52.90 each and save 2%
  • Buy 10 for €51.90 each and save 4%
  • Buy 20 for €50.90 each and save 6%
  • Buy 50 for €49.90 each and save 8%
Mikrotik RB LHG-5nD-LHG 5 is available for purchase in increments of 5

Mikrotik RB/LHG-5nD-LHG 5

!!! Please note Only box for 5 pcs. !!!



LHG 5

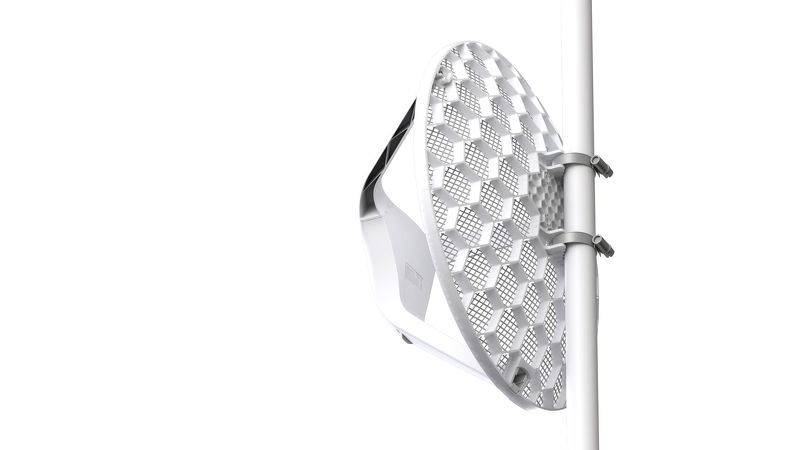

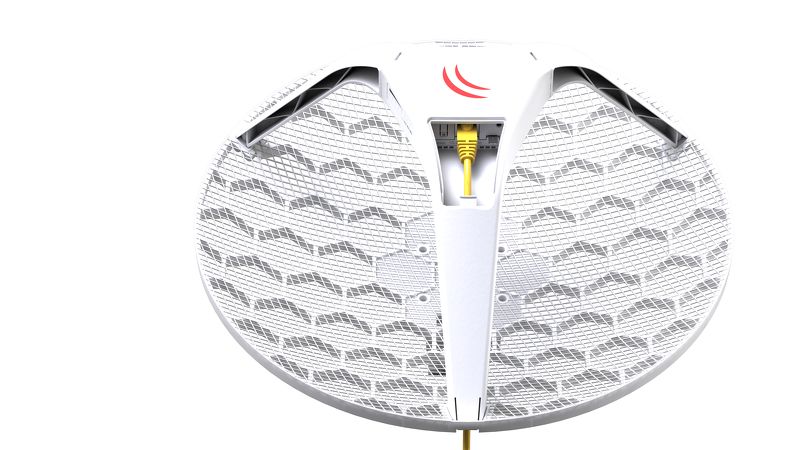

The Light Head Grid (LHG) is a compact and light wireless device with an integrated 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances.

The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.

We have two versions available.

- RBLHG-5nD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- RBLHG-5nD (International) supports 5150MHz-5875MHz range.







Product specifications



Details
Product code RBLHG-5nD
CPU nominal frequency 600 MHz
CPU core count 1
Size of RAM 64 MB
10/100 Ethernet ports 1
Wireless standards 802.11a/n
Wireless chip model AR9344
Supported input voltage 11 V - 30 V
PoE in Yes
Dimensions Ø 391 x 222 mm; package 450 x 450 x 145 mm
Operating System RouterOS
Operating temperature range              -40 to 70° C
License level 3

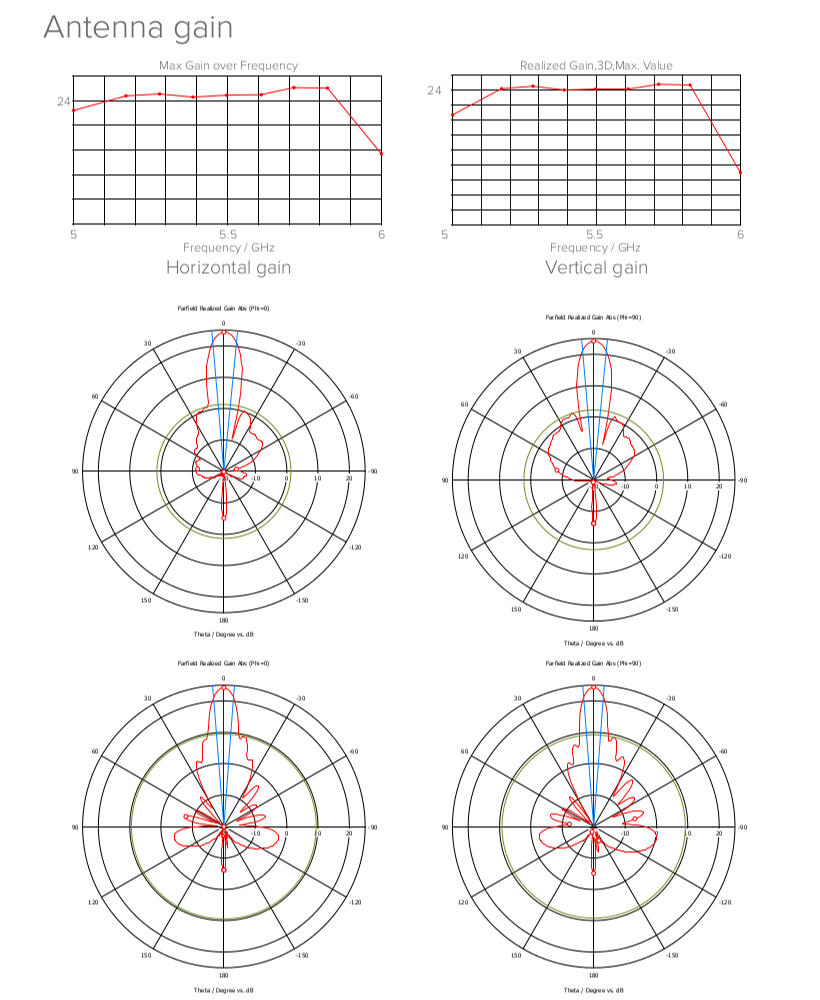

Antenna gain DBI 24.5
CPU AR9344
Max Power consumption 6W
Number of chains 2
Storage type FLASH
Storage size 16 MB
Suggested price $59

Wireless specifications

5 GHz
 TX   RX
6MBit/s 25 -96
54MBit/s    20 -80
MCS0 25 -96
MCS7 19 -75

wireless parameters may be limited in software, depending on your local regulatory limitations



Performance test results

RBLHG-5nD AR9344 100M 1 port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 8.1 98.4 23.5 96.3 148.0 75.8
Bridging 25 bridge filter rules 8.1 98.4 23.5 96.3 87.6 44.9
Routing none (fast path) 8.1 98.4 23.5 96.3 148.0 75.8
Routing 25 simple queues 8.1 98.4 23.5 96.3 106.6 54.6
Routing 25 ip filter rules 8.1 98.4 23.5 96.3 60.5 31.0
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
  4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results





Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Additional Information

Barcode No
Applications Indoor
Frequency 5 Ghz
Brand Mikrotik
