AG-HP-5G23

SKU: 9000014510120 Categories: ,

57.75

Ubiquiti – AG-HP-5G27 EU – EAN: 810354022128 – Antenna gain : 21dBi – 30dBi – Frequency : 5 GHz – Type of device : Station (CPE) – Wi-Fi standards : Wireless IEEE 802.11n / IEEE 802.11a

3 in stock

Description

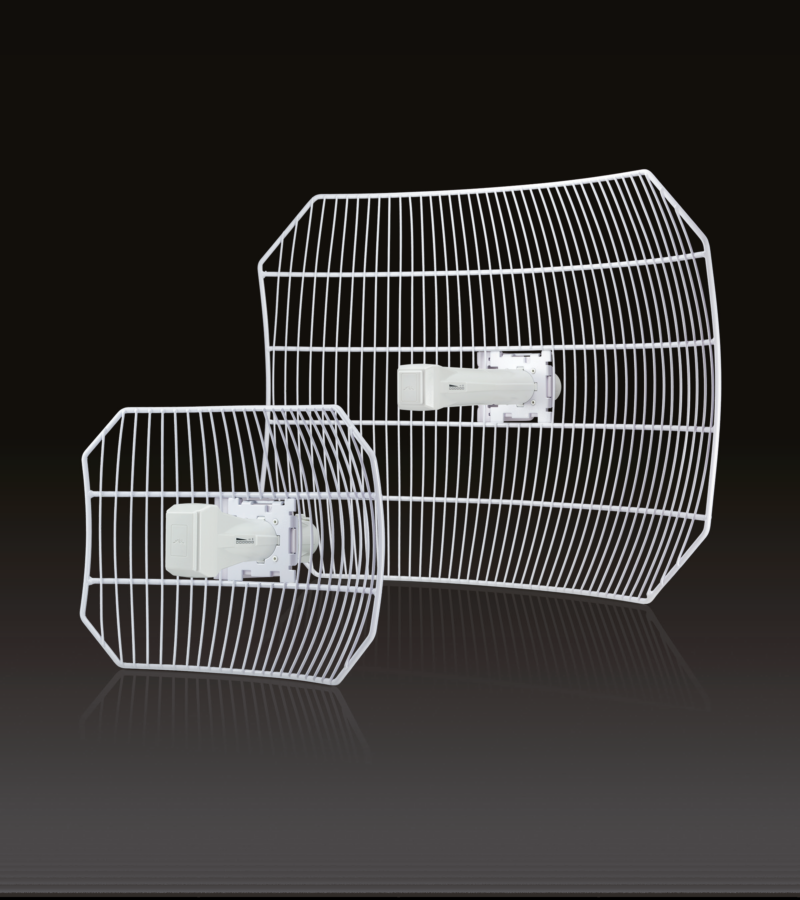

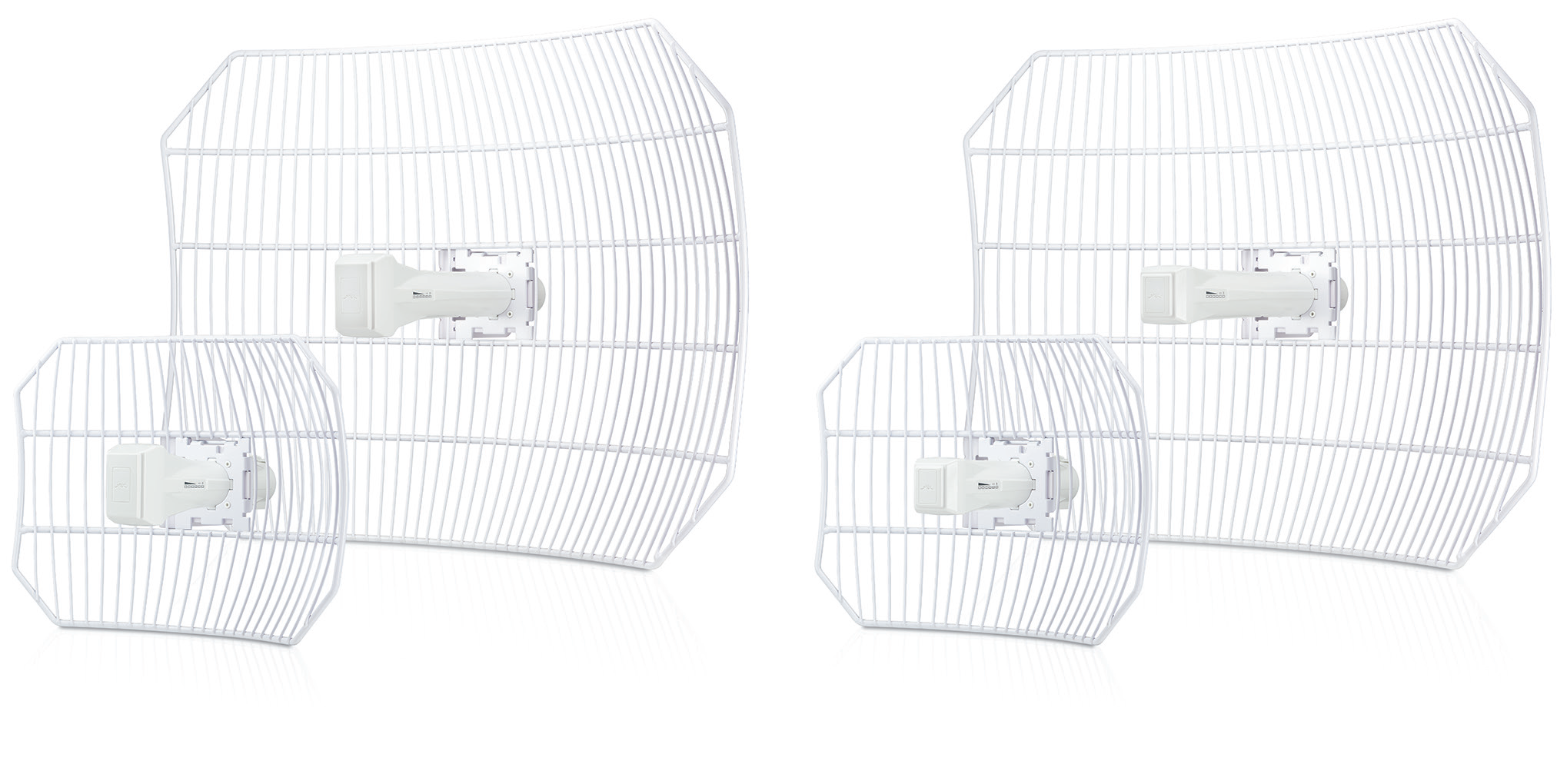

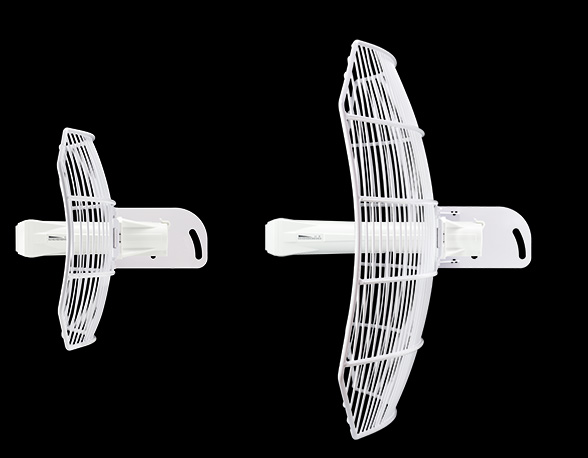

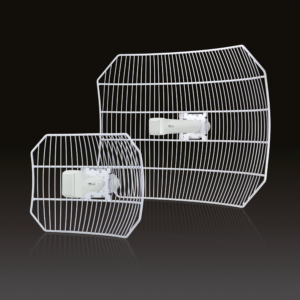

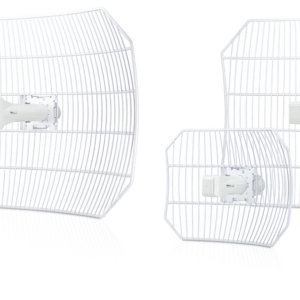

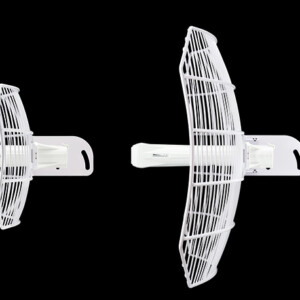

Utilizing InnerFeed™ technology, the new airGrid™M HP Series from Ubiquiti Networks™  represents the latest evolution of outdoor wireless broadband devices. The revolutionary InnerFeed technology integrates the entire radio system into the feedhorn of the antenna. airGridM combines Ubiquiti’s InnerFeed and airMAX™ ( TDMA protocol)  technologies to create  a simple, yet extremely  powerful and robust wireless CPE (Customer Premises Equipment).



Complete antenna and radio system integration provides affordable cost/performance solutions  to the wireless broadband industry. airGridM operates in the worldwide, license-free  frequency range  of either 2 GHz or 5 GHz, and features breakthrough performance up to 100+ Mbps in real outdoor throughput and incredible range  up to 30+ km.



The low-cost, high-performance, robust “all-in-one” design  and light weight  of airGridM make it versatile and ideal in several different applications.



Specifications:



System Information

Processor Specs

Atheros MIPS 24KC, 400 MHz

Memory Information

32 MB SDRAM, 8 MB Flash

Networking  Interface

(1) 10/100 Ethernet Port



Regulatory / Compliance Information

Wireless Approvals

FCC Part 15.247, IC RS210,  CE

RoHS Compliance

Yes



Physical / Electrical / Environental

EnclosureCharacteristics

Outdoor UV Stabilized Plastic

Mounting Kit

Pole Mounting Kit (Included)

Max. PowerConsumption

3 W

Power Supply

24V, 0.5A PoE Adapter  (Included)

Power Method

Passive Power over Ethernet

 (Pairs 4, 5+; 7, 8 Return)

Operating Temperature

-30 to 75° C

Operating Humidity

5 to 95% Condensing

Shock and Vibration

ETSI300-019-1.4

ETSI Specification

EN 302 326 DN2



AG-HP-5G27 Specifications

Dimensions

620 x 460 x 360 mm (MountIncluded)

Weight

2585 g (Mount Included)

Wind Survivability

125 mph

Wind Loading

8 lbf @ 125 mph



Antenna / Radio Information

Operating Frequency

Worldwide: 5170 – 5875 MHz

USA: 5725 – 5850 MHz

Output Power

25 dBm

Max. VSWR

1.5:1

Gain

27 dBi

Additional information

Weight 8.8000 kg
Brand

Ubiquiti

Features (Beta)

Poe in

Frequency

5 Ghz

Applications

Outdoor

Manufacturer

Ubiquiti
