Air Quality Sensor SDS011

Sku:1010150201101

Tinycontrol - Accessories - SDS011 Air quality sensor
27,15 €

Availability: In stock

  • Buy 5 for 26,61 € each and save 2%
  • Buy 10 for 26,07 € each and save 4%

Nova Fitness SDS011 is a professional laser dust sensor. Fan mounted on sensor automatically sucks air. Sensor uses laser light scattering principle to measure value of dust particles suspended in the air. Sensor provides high precision and reliable readings of PM2.5 and PM10 values. Any change in environment can be observed almost instantaneously - short respond time below 10 seconds. Sensor in standard mode reports reading with 1 second interval.

They are two ways to communicate with SDS011 sensor:

  • digital out (UART)
  • PWM signal (one for PM2.5 and one for PM10)

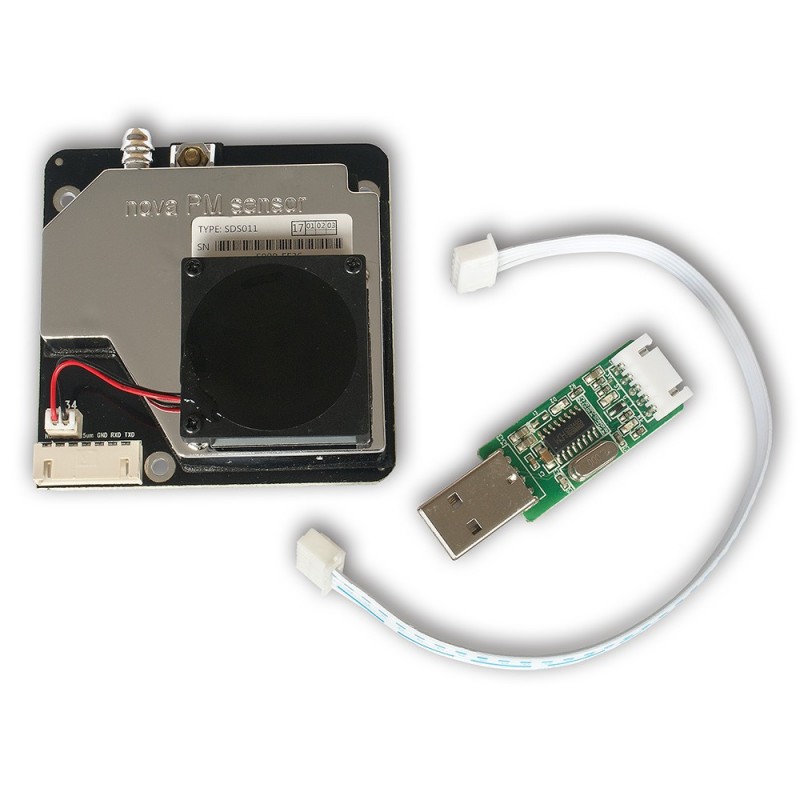

Set includes:

  • Nova Fitness SDS011 sensor
  • cable
  • USB-UART converter

Specification:

  • Measured values: PM2.5, PM10
  • Range: 0 - 999.9 ?g /m³
  • Supply voltage: 5V (4.7 - 5.3V)
  • Power consumption (work): 70mA±10mA
  • Power consumption (sleep mode laser & fan): < 4mA
  • Storage temperature: -20 to +60C
  • Work temperature: -10 to +50C
  • Humidity (storage): Max. 90%
  • Humidity (work): Max. 70% (condensation of water vapor falsify readings)
  • Accuracy:
    • 70% for 0.3?m
    • 98% for 0.5?m
  • Size: 71x70x23 mm
  • Certification: CE, FCC, RoHS

Pinout:

  • Pin 1 - not connected
  • Pin 2 - PM2.5: 0-999?g/m³; PWM output
  • Pin 3 - 5V
  • Pin 4 - PM10: 0-999 ?g/m³; PWM output
  • Pin 5 - GND
  • Pin 6 - RX UART (TTL) 3.3V
  • Pin 7 - TX UART (TTL) 3.3V
