GCE Extension X400-CT per IPX800

SKU: 1010156000015 Categories: ,

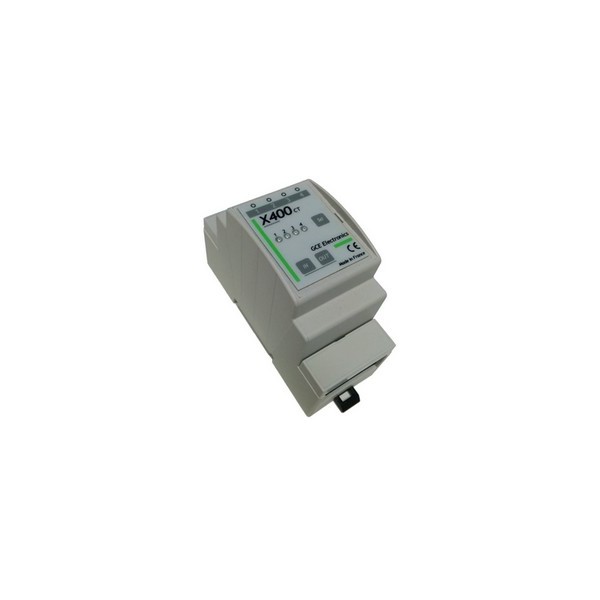

Extension X400-CT per IPX800

1 in stock


Extension X400-CT per IPX800

By buying this product you can collect up to 4 loyalty points. Your cart will total 4points that can be converted into a voucher of 0,80 €.

This plugin allows to expand the number of analog inputs Ethernet IPX800 V3 card. X400 module and provides 4 additional entries to your IPX800 V3 card.

So you can increase the number of your card IPX800 V3 up to 12 inputs by adding 3 X400 expansion modules.

X400 expansion module is self-powered by the expansion bus of IPX800 V3.

Note: To use this plug-in, you need to update your card IPX800 V3 with the 3.5.42 release.


Add 4 analog inputs to your IPX800 V3.
Chance of 3 X400 or 12 additional analog inputs.
Entries 0 / 3.3v compatible with GCE Electronics Sensors
Selection of the channel and visualization by LED on the front panel.
1 input and 1 output bus.
Simple installation, self-powered bus from IPX800 V3.
Combined with the X880 extensions.
Din rail enclosure for easy integration in your system

Power supply: Via bus IPX800 V3

Additional information

Weight 0.2000 kg
