Description

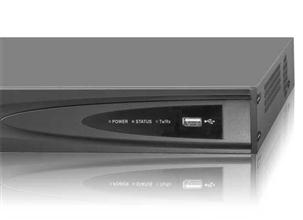

Embedded NVR IP 4 CANALI 5MP
Video/Audio Input | ||
---|---|---|
IP video input: | | | 4-ch |
Two-way audio input: | | | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
Network | ||
Incoming bandwidth: | | | 40Mbps |
Outgoing bandwidth: | | | 80Mbps |
Remote connection: | | | 32 |
Video/Audio Output | ||
HDMI/VGA output: | | | 1-ch, resolution: 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz |
Recording Resolution: | | | 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Frame Rate: | | | Main stream: 50 fps (P) / 60 fps (N) Sub-stream: 50 fps (P) / 60 fps (N) |
Audio Output: | | | 1-ch, RCA (Linear, 1kΩ) |
Decoding | ||
Live view / Playback: | | | 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Capability: | | | 4-ch@1080P |
Hard Disk | ||
SATA: | | | 1 SATA interface for 1 HDD |
Capacity: | | | Up to 4TB for each disk |
External Interface | ||
Network Interface: | | | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
USB Interface: | | | 1 × USB 2.0 and 1 × USB 3.0 |
Alarm In: | | | 4-ch |
Alarm Out: | | | 1-ch |
General | ||
Power Supply: | | | 12V DC |
Consumption(without hard disk and POE): | | | ≤ 10W |
Working Temperature: | | | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
Working Humidity: | | | 10 % ~ 90 % |
Chassis: | | | 2U chassis |
Dimensions: | | | 315 × 230 × 45 mm (12.4 × 9.0 × 1.8 inch) |
Weight(without HDD): | | | ≤ 1 kg |
