LED module for micro-management pilot wire for IPX800

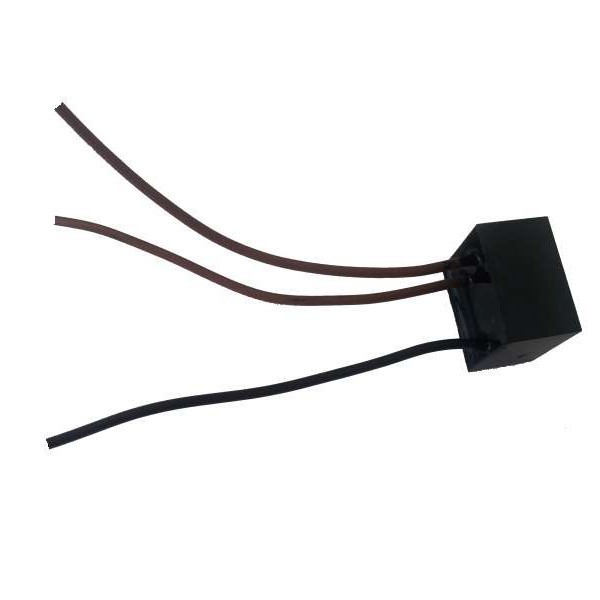

Micro-module compose of two diodes to create your own solutions for pilot wire. Pilot for manage your electric heating.

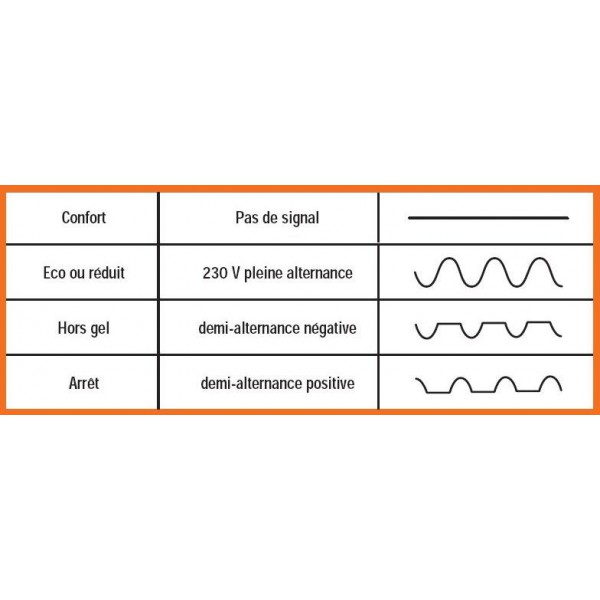

Next the power source 230V AC, this module will be able to generate four orders management : Fil Pilot Comfort, Eco, Frost or Stop.
For wiring, the brown wire on the right is for the positive alternance and the right for the negative alternation. So by connecting your pilot wire on the Black wire of the module, you can get this principle with a relay board as IPX800 V3.
- PVC resin modulus and high protection
- 2×2 cm and 1.5 cm thick
- 3 flexible insulated wires in 0.75 mm
- 2 800V rectifier diodes
