Description

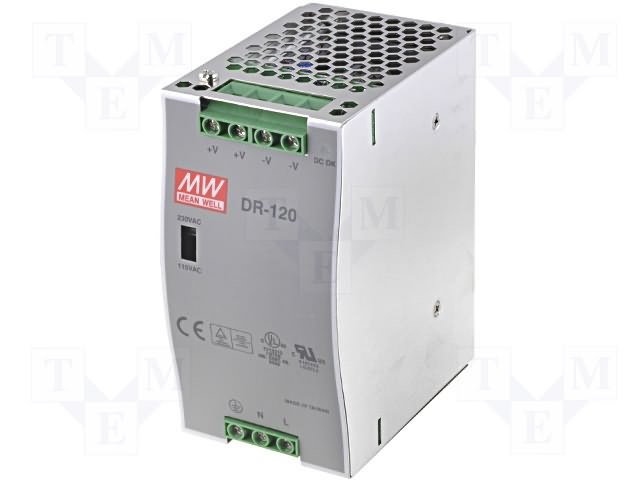

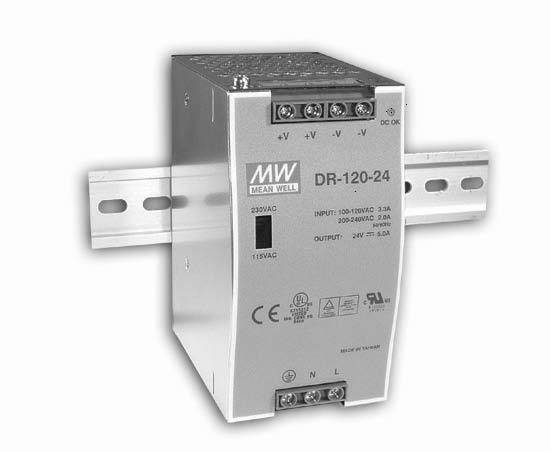

DR-120-24 Din Rail switching power supply.
| Output Specifications: | |
| Output Voltage: | 24 Volts DC |
| Min Current: | 0 Amps |
| Max Current: | 5 Amps |
| Power: | 120 Watts |
| Input Specifications: | |
| Input Voltage: | 88~132 @ 2.6 Amp / 176~264VAC @ 1.6 Amp. Selected by Switch |
Features :
-
Universal AC input 110V – 240 VAC
- Protections: Short circuit / Overload / Over voltage / Over temperature
-
Cooling by free air convection
-
Mounts on 35 mm DIN rail TS-35
-
UL 508(industrial control equipment)approved
-
LED indicator for power on
-
100% full load burn-in test
-
Fixed switching frequency at 100KHz
-
Dimensions: 4.92″ H x 2.58″ W x 3.94″ D
- 3 years warranty
